Zoom Stereo Microscope
Not Finding Your Match?Try our Parts Finder!

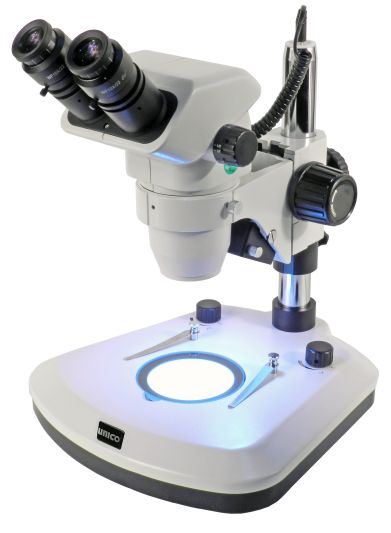

The UNICO ZM191LED Binocular Zoom Stereo Microscope is a versatile and high-performance instrument designed for a wide range of applications including industrial inspection, biological studies, and educational purposes. With its advanced optical and illumination features, this stereo microscope delivers exceptional image clarity and ease of use.
Featuring 10X widefield eyepieces, the ZM191LED offers a broad and comfortable viewing field, allowing users to observe specimens with minimal eye strain. The microscope includes a zoom body with a magnification range of 0.7X to 4.5X, providing a continuous range of magnification for detailed examination and analysis.
The ZM191LED is equipped with a robust poll stand and a large base, ensuring stability and ease of use during extended periods of observation. Integrated top and bottom LED illumination provides bright, even lighting to enhance contrast and visibility. The built-in LED lights are adjustable, allowing users to customize the lighting conditions for optimal viewing of various specimen types.
Whether you are engaged in precise industrial inspections, detailed biological research, or hands-on educational activities, the UNICO ZM191LED Binocular Zoom Stereo Microscope offers exceptional performance and flexibility. Its combination of high-quality optics, versatile zoom magnification, and advanced LED illumination makes it a valuable tool for a wide range of microscopy applications.
| Head | Binocular |
| Eyepiece | WF10X |
| Body | 0.7X~4.5X |
| Stand | PE Stand with ext. pillar |
| Illumination | None |
| Bodies | |
|---|---|
| D4-3001 | Binocular Zoom Body 0.7X~4.5X |
| D4-3002 | Trinocular Zoom Body 0.7X~4.5X |
| Eyepieces and Auxiliary Lens | |
| D4-1001 | Widefield Eyepiece 10X FN: 19 mm |
| D4-1002 | Widefield Eyepiece 15X FN: 14.5 mm |
| D4-1003 | Widefield Eyepiece 20X FN: 11 mm |
| D4-1004 | Widefield Eyepiece 25X FN: 9 mm |
| D4-1005 | Extra Widefield Eyepiece 10X FN: 23 mm |
| D4-2001 | Auxiliary Lens 2X |
| D4-2002 | Auxiliary Lens 1.5X |
| D4-2003 | Auxiliary Lens 0.75X |
| D4-2004 | Auxiliary Lens 0.5X |
| D4-2005 | Auxiliary Lens 0.3X |
| Stands, Arms and Bases | |
| D4-4001 | PE Stand, pole type with extension pillar |
| D4-4001HF | PE-HF Stand, incident halogen (6V, 20W) and transmitted fluorescent illumination (5W) |
| D4-4002 | DPT Stand, with incident illuminator port |
| D4-4003FF | DFF Stand, incident and transmitted fluorescent illumination (5W) |
| D4-4004 | DE Stand, two-step extensible arm |
| D4-4004HF | Same as D4-4004 but with incident halogen (6V, 20W) and transmitted fluorescent illumination (5W) |
| D4-4006 | Boom Stand with universal arm (D4-4101 included) |
| D4-4007 | Boom Stand with 25 mm post carrier (D4-4106 included) and focusing mount (D4-4102 included) |
| D4-4101 | Universal arm (Bonder Arm) with 5/8 inch knuckle pin |
| D4-4102 | Focusing mount with 25 mm diameter through hole |
| D4-4103 | Probe arm |
| D4-4104 | Boom Stand with 5/8 inch knuckle hole |
| D4-4105 | Boom Stand with 25 mm post carrier (D4-4106 included) |
| D4-4106 | 25 mm post carrier |
| D4-4201 | Diascopic base (only use with DPT stand D4-4002) |
| Other Components and Accessories | |
| D4-7002 | Fiber optics dual-chrome gooseneck |
| D4-7003 | Fiber optics ring light |
| D4-7004 | Fiber optics light source 115V, 100W |
| D4-8010 | 35 mm camera adapter and photo eyepiece system |
| D4-8020 | video adapter with external C thread, adjustable |
| D4-8901 | Objective protection ring with glass |
| D4-8902 | Reticule for 10X eyepiece (D4-1001) |
| D4-8903 | Reticule for WFH10X eyepiece (D4-1005) |
| Actual Size | 9.7" x 7" x 16.5" |
| Shipping Size | 10.8" x 14" x 17.5" |
| Net Weight | 15.5 lbs (7.0kg) |
| Shipping Weight | 17.5 lbs (7.7 kg) |
