The UNICO G505 Phase Contrast Binocular Microscope is a cutting-edge tool designed for advanced phase contrast microscopy, ideal for observing live and unstained specimens with exceptional clarity. This high-performance microscope features a set of plan phase objectives (10X, 20X, 40X, and 100X), which provide flat-field imaging and high-resolution detail, ensuring accurate and reliable results across various magnifications.
Included with the G505 are specialized phase annuli—10X/40X and 20X/100X—that enhance contrast and allow for detailed examination of transparent specimens. These annuli work seamlessly with the phase contrast objectives to provide clear, high-contrast images, making it easier to study intricate cellular structures and live samples.
The microscope’s binocular head offers comfortable and precise viewing, while the advanced optical system ensures optimal performance and versatility. The UNICO G505 is an excellent choice for research laboratories, educational institutions, and clinical settings where detailed phase contrast observations are required.
| Head | Binocular |
| Eyepiece | 10X WF(2)Hi-EP |
| Objectives | 4,10,40,100X Plan Phase 4X Brightfield |
| Condenser | NA 1.25 |
| Diaphragm | Iris |
| Stage | Mechanical |
| Illumination | 3 Watt LED |
| Focusing | Coaxial |
| Bodies | |
|---|---|
| G500-3004 | SEIDENTOPF BINOCULAR BODY WITHOUT EYEPIECES FOR G500 SERIES MICROSCOPE |
| G500-3005 | SEIDENTOPF TRINOCULAR BODY, 30 DEGREE INCLINED WITHOUT EYEPIECES FOR G500 SERIES MICROSCOPE |
| Optics | |
| G500-1402 | 10X HIGH EYEPOINT WIDEFIELD EYEPIECE FN18 |
| G500-1403 | 10X HIGH EYEPOINT WIDEFIELD EYEPIECE FN18 WITH POINTER |

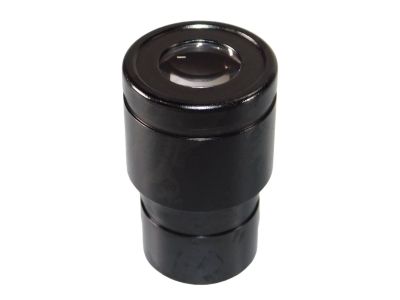

| G500-1404 | 10X HIGH EYEPOINT WIDEFIELD EYEPIECE FN18 WITH RETICULE |
| G500-1405 | 15X WIDEFIELD EYEPIECE, FN13 |
| G500-1407 | 20X EYEPIECE FN10 |
| G500-1501 | 10X WIDEFIELD EYEPIECE, FN20 |
| G500-2101 | 4X ACHROMATIC OBJECTIVE, NA0.10 |
| G500-2102 | 10X ACHROMATIC OBJECTIVE, NA0.25 |
| G500-2103 | 40X ACHROMATIC OBJECTIVE, NA0.65 |
| G500-2104 | 100X ACHROMATIC OBJECTIVE, NA1.25 |
| G500-2301 | 4X PLAN ACHROMATIC OBJECTIVE DIN, NA0.10 |
| G500-2302 | 10X PLAN ACHROMATIC OBJECTIVE DIN, NA0.25 |
| G500-2303 | 40X PLAN ACHROMATIC OBJECTIVE DIN, NA0.65 |
| G500-2304 | 100X PLAN ACHROMATIC OBJECTIVE DIN, NA1.25 |
| G500-2305 | 20X PLAN ACHROMATIC OBJECTIVE DIN, NA0.40 |
| G500-2432 | 10X PLAN PHASE DIN OBJECTIVE, NA: 0.25 |
| G500-2433 | 40X PLAN PHASE DIN OBJECTIVE, NA: 0.65 |
| G500-2434 | 100X PLAN PHASE DIN OBJECTIVE, NA: 1.25 |
| G500-2435 | 20X PLAN PHASE DIN OBJECTIVE, NA: 0.50 |
| G500-2831 | 4X PLAN ACHROMATIC OBJECTIVE DIN, NA0.10 FOR G508 POLARIZING MICROSCOPE |
| G500-2832 | 10X PLAN ACHROMATIC OBJECTIVE DIN, NA0.25 FOR G508 POLARIZING MICROSCOPE |
| G500-2833 | 40X PLAN ACHROMATIC OBJECTIVE DIN, NA0.65 FOR G508 POLARIZING MICROSCOPE |
| G500-2835 | 20X PLAN ACHROMATIC OBJECTIVE DIN, NA0.40 FOR G508 POLARIZING MICROSCOPE |
| G500-2837 | 60X PLAN ACHROMATIC OBJECTIVE DIN, NA0.85 FOR G508 POLARIZING MICROSCOPE |
| Miscellaneous Accessories | |
| G500-5001 | MECHANICAL STAGE WITHOUT ABBE CONDENSER FOR G500(STAGE SIZE 150X140MM, MOVEMENT RANGE 76X50MM) |
| G500-6001 | ABBE CONDENSER N.A. 1.25 W/ IRIS DIAPHRAGM FOR G500 SERIES |
| G500-6010 | BLUE FILTER, DIAMETER 32MM (REF: XS-FCB) |
| G500-6011 | GREEN FILTER, DIAMETER 32MM |
| G500-6012 | YELLOW FILTER, DIAMETER 32MM (REF: XS-FCY) |
| G500-6013 | NUETRAL FILTER, DIAMETER 32MM (REF: XS-FCF) |
| G500-8001 | DUST COVER FOR G500 MICROSCOPE |
| G500-8031-1 | PHASE ANNULUS SLIDER FOR USE WITH 10X AND 40X PLAN PHASE SET |
| G500-8032-1 | PHASE ANNULUS SLIDER FOR 20X AND 100X PLAN PHASE |
| G500-8033 | PHASE CONTRAST CENTERING TELESCOPE |
| G500-8041 | DARKFIELD SLIDER FOR USE WITH 4X TO 40X POWER OBJECTIVES |
| G500-9005 | FUSE 250V/3.15+B352A FOR G500 MICROSOCOPE |
| Actual Size | 16”H x 6“Wx 12”D |
| Shipping Dimension | 21”L x 19”W x 10“H |
| Net Weight | 14.5 lbs |
| Shipping Weight | 19 lbs |
