Polarizing Microscope
Regular price
$5,400.86
Unit price
/
Unavailable
- SEIDENTOPF TRINOCULAR HEAD WITH WF10X PAIRED EYEPIECES
- 4X,10X,20X,40X PLAN ACHROMAT OBJECTIVES
- INTERMEDIATE TUBE WITH BERTRAND LENS, AND FULL ANALYZER SET
- 160MM CIRCULAR GRADUATED STAGE, 10 SCALE
- KOEHLER LED ILLUMINATION

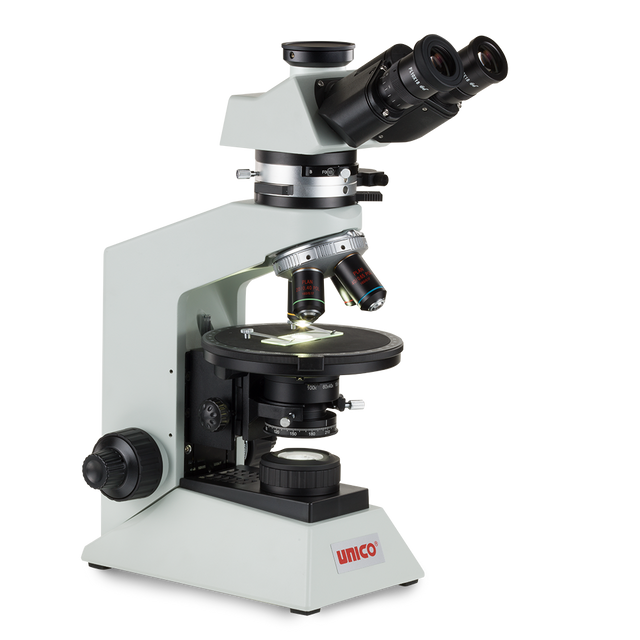

The G508T Polarizing Trinocular Microscope is a highly specialized instrument designed for advanced analysis and documentation of anisotropic materials using polarized light. This microscope is ideal for applications in geology, mineralogy, materials science, and more. It features a Siedentopf trinocular head, allowing for comfortable binocular viewing and simultaneous connection to a camera for photomicrography and digital documentation. The microscope includes WF10X wide-field eyepieces (one with a reticle) for precise measurements. A 4-position nosepiece holds strain-free Plan objectives (4X, 10X, 20X, and 40X) that minimize internal stress, crucial for accurate polarization results. The integrated midst head houses a Bertrand lens for conoscopic observation of interference figures, along with a full wavelength plate, quarter wavelength plate, and quartz wedge for advanced polarization analysis. A 160mm diameter revolving stage with 10 scales, 6’ precision, and a 0.01mm micrometer allows for precise specimen rotation and measurement. Both the polarizer and analyzer are 360° rotatable with 20 scales and 6’ precision, providing complete control over light polarization. Kohler LED illumination with adjustable intensity ensures optimal lighting for various samples. The microscope's universal power input (90V-240V) provides compatibility worldwide. This powerful tool is perfect for researchers, educators, and professionals requiring precise polarized light microscopy and image capture.
Head
Trinocular
Eyepiece
10X WF(2)Hi-EP
Objectives
4,10,40,100X Plan
Condenser
NA 1.25
Diaphragm
Iris
Stage
Mechanical
Illumination
3 Watt LED
Focusing
Coaxial
Bodies
G500-3004
SEIDENTOPF BINOCULAR BODY WITHOUT EYEPIECES FOR G500 SERIES MICROSCOPE
G500-3005
SEIDENTOPF TRINOCULAR BODY, 30 DEGREE INCLINED WITHOUT EYEPIECES FOR G500 SERIES MICROSCOPE
Header
Optics
G500-1402
10X HIGH EYEPOINT WIDEFIELD EYEPIECE FN18
G500-1403
10X HIGH EYEPOINT WIDEFIELD EYEPIECE FN18 WITH POINTER
G500-1404
10X HIGH EYEPOINT WIDEFIELD EYEPIECE FN18 WITH RETICULE
G500-1405
15X WIDEFIELD EYEPIECE, FN13
G500-1407
20X EYEPIECE FN10
G500-1501
10X WIDEFIELD EYEPIECE, FN20
G500-2101
4X ACHROMATIC OBJECTIVE, NA0.10
G500-2102
10X ACHROMATIC OBJECTIVE, NA0.25
G500-2103
40X ACHROMATIC OBJECTIVE, NA0.65
G500-2104
100X ACHROMATIC OBJECTIVE, NA1.25
G500-2301
4X PLAN ACHROMATIC OBJECTIVE DIN, NA0.10
G500-2302
10X PLAN ACHROMATIC OBJECTIVE DIN, NA0.25
G500-2303
40X PLAN ACHROMATIC OBJECTIVE DIN, NA0.65
G500-2304
100X PLAN ACHROMATIC OBJECTIVE DIN, NA1.25
G500-2305
20X PLAN ACHROMATIC OBJECTIVE DIN, NA0.40
G500-2432
10X PLAN PHASE DIN OBJECTIVE, NA: 0.25
G500-2433
40X PLAN PHASE DIN OBJECTIVE, NA: 0.65
G500-2434
100X PLAN PHASE DIN OBJECTIVE, NA: 1.25
G500-2435
20X PLAN PHASE DIN OBJECTIVE, NA: 0.50

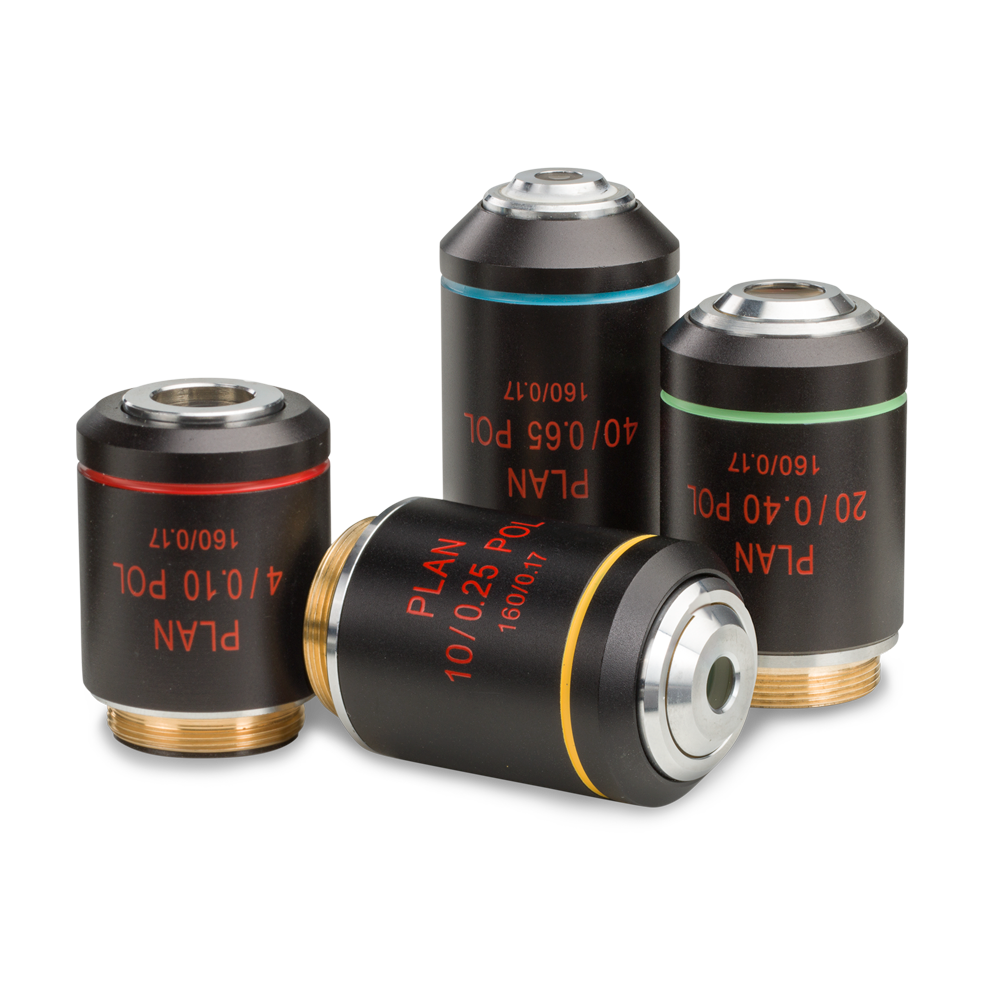

G500-2831
4X PLAN ACHROMATIC OBJECTIVE DIN, NA0.10 FOR G508 POLARIZING MICROSCOPE
G500-2832
10X PLAN ACHROMATIC OBJECTIVE DIN, NA0.25 FOR G508 POLARIZING MICROSCOPE
G500-2833
40X PLAN ACHROMATIC OBJECTIVE DIN, NA0.65 FOR G508 POLARIZING MICROSCOPE
G500-2835
20X PLAN ACHROMATIC OBJECTIVE DIN, NA0.40 FOR G508 POLARIZING MICROSCOPE
G500-2837
60X PLAN ACHROMATIC OBJECTIVE DIN, NA0.85 FOR G508 POLARIZING MICROSCOPE
Header
Miscellaneous Accessories
G500-5001
MECHANICAL STAGE WITHOUT ABBE CONDENSER FOR G500(STAGE SIZE 150X140MM, MOVEMENT RANGE 76X50MM)
G500-6001
ABBE CONDENSER N.A. 1.25 W/ IRIS DIAPHRAGM FOR G500 SERIES
G500-6010
BLUE FILTER, DIAMETER 32MM (REF: XS-FCB)
G500-6011
GREEN FILTER, DIAMETER 32MM
G500-6012
YELLOW FILTER, DIAMETER 32MM (REF: XS-FCY)
G500-6013
NUETRAL FILTER, DIAMETER 32MM (REF: XS-FCF)
G500-8001
DUST COVER FOR G500 MICROSCOPE
G500-8031-1
PHASE ANNULUS SLIDER FOR USE WITH 10X AND 40X PLAN PHASE SET
G500-8032-1
PHASE ANNULUS SLIDER FOR 20X AND 100X PLAN PHASE
G500-8033
PHASE CONTRAST CENTERING TELESCOPE
G500-8041
DARKFIELD SLIDER FOR USE WITH 4X TO 40X POWER OBJECTIVES
G500-9005
FUSE 250V/3.15+B352A FOR G500 MICROSOCOPE
Actual Size
16”H x 6“Wx 12”D
Shipping Dimension
21”L x 19”W x 10“H
Net Weight
14.5 lbs
Shipping Weight
19 lbs
