Advanced Microscope
Regular price
$2,180.00
Unit price
/
Unavailable
- SEIDENTOPF TRINOCULAR HEAD
- WF10X PAIRED EYEPIECES
- 4X,10X,40XR,100XR DIN ACHROMAT OBJECTIVES
- BUILT-IN MECHANICAL STAGE WITH ABBE NA1.25 CONDENSER &IRIS
- KOHLER LED ILLUMINATION

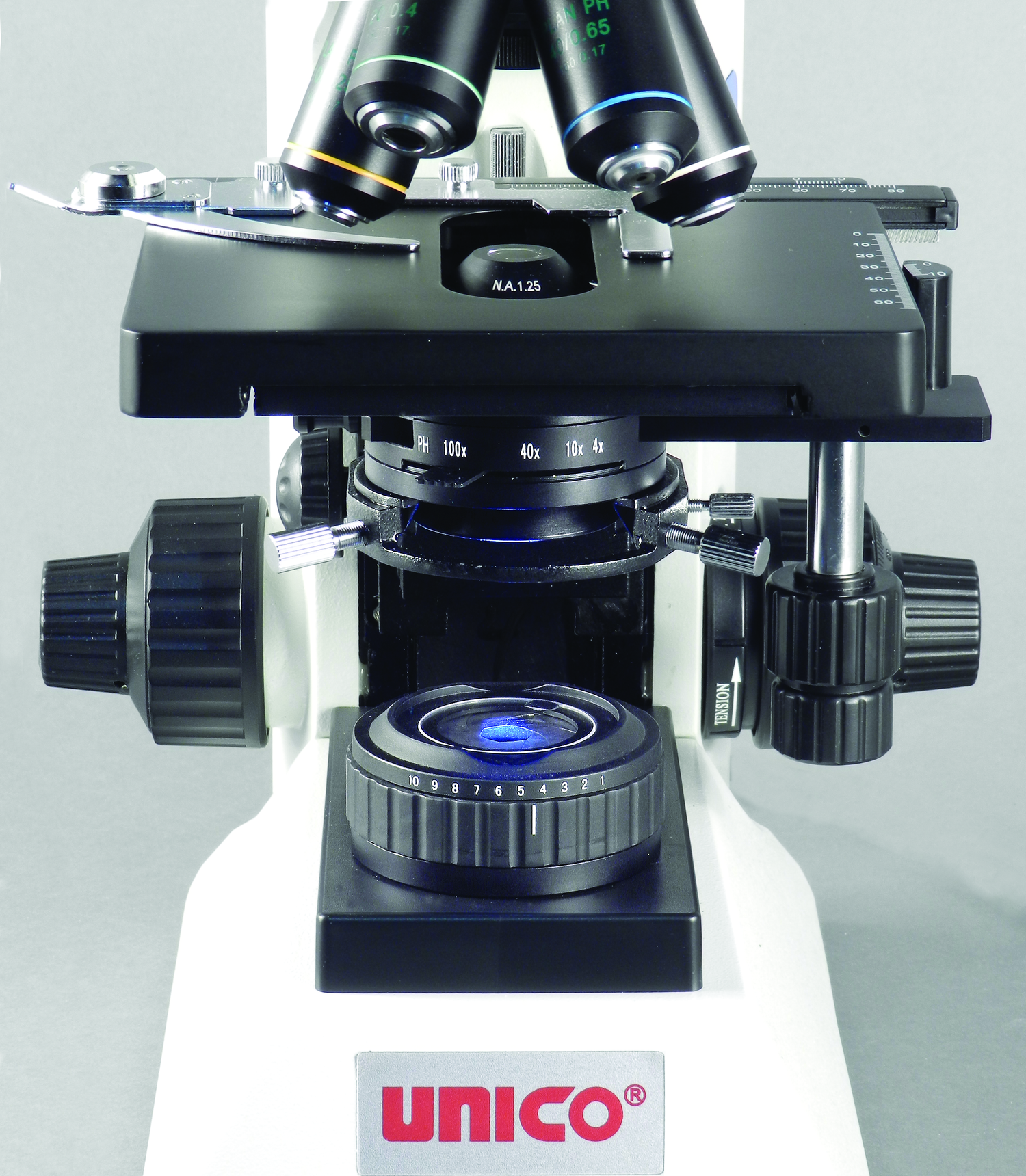

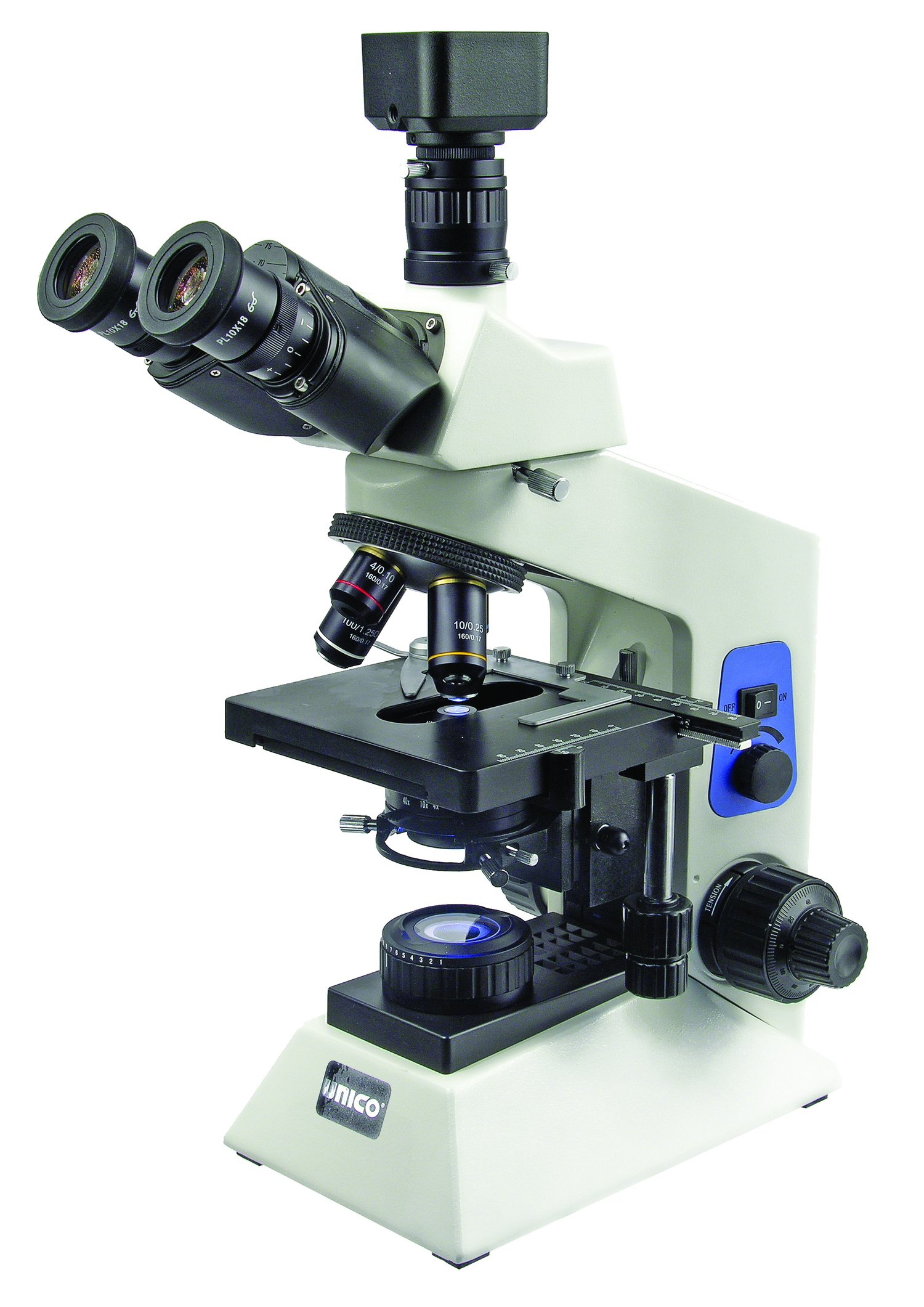

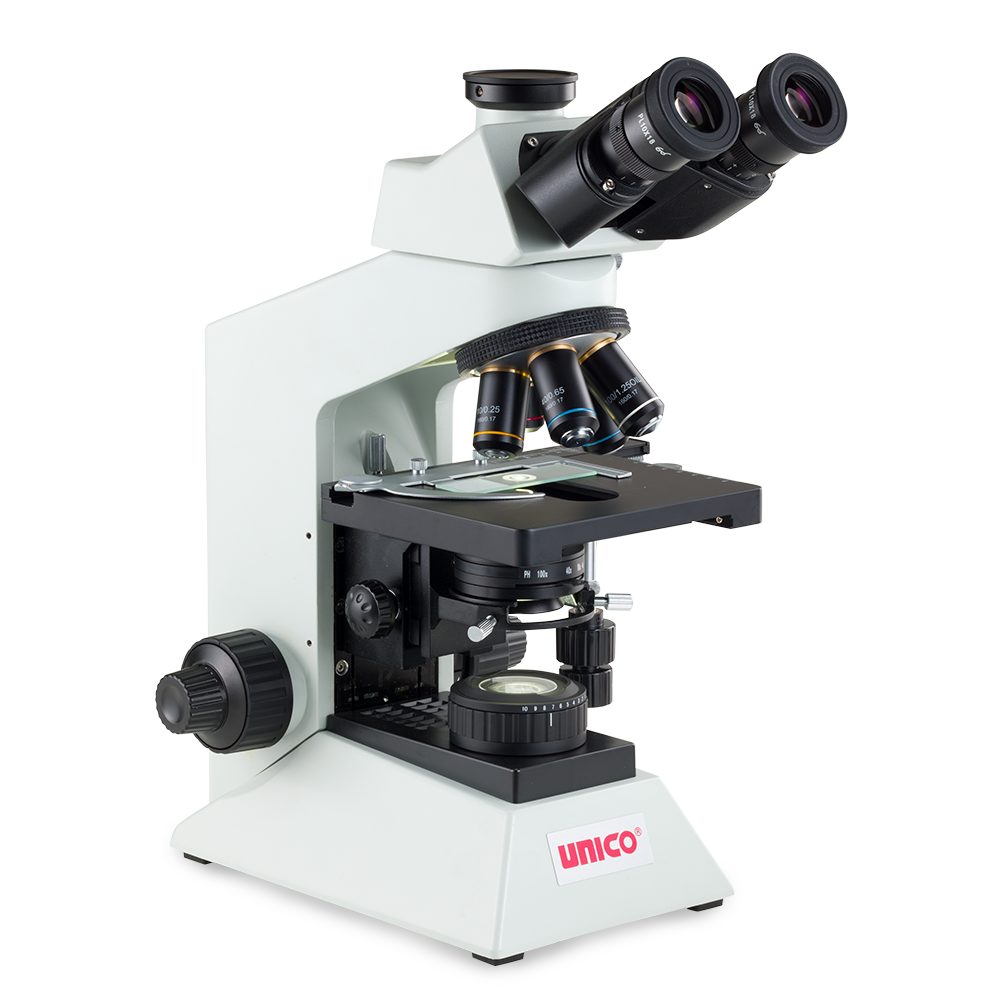

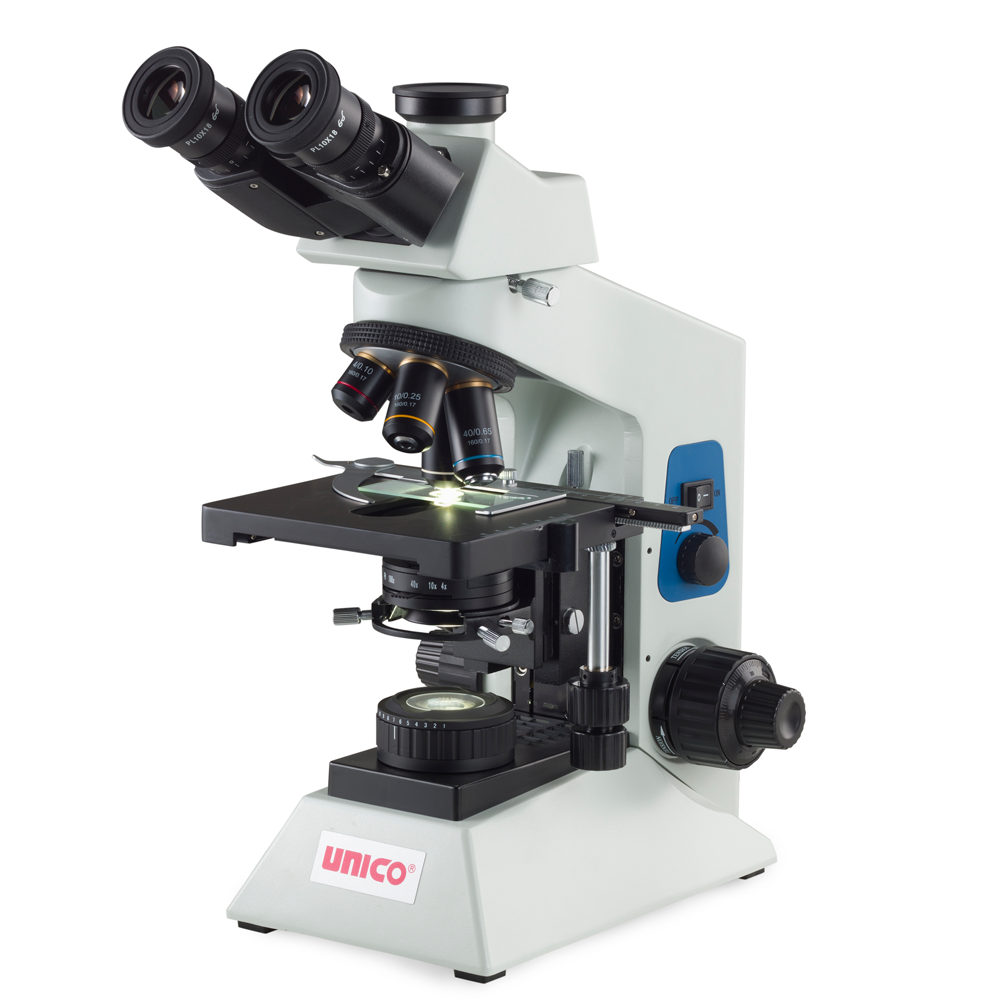

The G502T Trinocular Microscope is designed to deliver high-quality imaging for advanced research, educational, and laboratory applications. Featuring a Seidentopf trinocular head, this microscope provides a trinocular viewing port that allows for simultaneous viewing through the eyepieces and the option to connect a camera for image capture, making it ideal for documentation and digital analysis. The microscope comes equipped with paired 10x eyepieces, ensuring comfortable and strain-free viewing over long periods.
This model includes a set of achromatic objectives (4x, 10x, 40x, and 100x), offering clear and detailed imaging with minimal chromatic aberrations. Whether examining biological specimens or preparing samples for documentation, the G502T provides excellent clarity at various magnifications. The mechanical stage offers smooth and precise specimen movement, enhancing usability and allowing for easy, reproducible focus adjustments.
The Köhler illumination system powered by LED technology provides bright, even lighting, ensuring optimal contrast and clarity for accurate sample observation. The intensity adjustment feature allows you to fine-tune the brightness according to your specimen and application, providing flexibility for a wide variety of viewing conditions.
With a wide voltage range (90V-240V), the G502T Trinocular Microscope is compatible with global power sources, making it perfect for use in labs and research facilities around the world. Its combination of excellent optics, versatile lighting, and trinocular head for digital imaging makes the G502T a top choice for those requiring high-quality imaging and multimedia capabilities.
Head
Trinocular
Eyepiece
10X WF(2)Hi-EP
Objectives
4,10,40,100X Achromat
Condenser
NA 1.25
Diaphragm
Iris
Stage
Mechanical
Illumination
3 Watt LED
Focusing
Coaxial
Bodies
G500-3004
SEIDENTOPF BINOCULAR BODY WITHOUT EYEPIECES FOR G500 SERIES MICROSCOPE
G500-3005
SEIDENTOPF TRINOCULAR BODY, 30 DEGREE INCLINED WITHOUT EYEPIECES FOR G500 SERIES MICROSCOPE
Header
Optics
G500-1402
10X HIGH EYEPOINT WIDEFIELD EYEPIECE FN18
G500-1403
10X HIGH EYEPOINT WIDEFIELD EYEPIECE FN18 WITH POINTER
G500-1404
10X HIGH EYEPOINT WIDEFIELD EYEPIECE FN18 WITH RETICULE
G500-1405
15X WIDEFIELD EYEPIECE, FN13
G500-1407
20X EYEPIECE FN10
G500-1501
10X WIDEFIELD EYEPIECE, FN20
G500-2101
4X ACHROMATIC OBJECTIVE, NA0.10
G500-2102
10X ACHROMATIC OBJECTIVE, NA0.25
G500-2103
40X ACHROMATIC OBJECTIVE, NA0.65
G500-2104
100X ACHROMATIC OBJECTIVE, NA1.25
G500-2301
4X PLAN ACHROMATIC OBJECTIVE DIN, NA0.10
G500-2302
10X PLAN ACHROMATIC OBJECTIVE DIN, NA0.25
G500-2303
40X PLAN ACHROMATIC OBJECTIVE DIN, NA0.65
G500-2304
100X PLAN ACHROMATIC OBJECTIVE DIN, NA1.25
G500-2305
20X PLAN ACHROMATIC OBJECTIVE DIN, NA0.40
G500-2432
10X PLAN PHASE DIN OBJECTIVE, NA: 0.25
G500-2433
40X PLAN PHASE DIN OBJECTIVE, NA: 0.65
G500-2434
100X PLAN PHASE DIN OBJECTIVE, NA: 1.25
G500-2435
20X PLAN PHASE DIN OBJECTIVE, NA: 0.50
G500-2831
4X PLAN ACHROMATIC OBJECTIVE DIN, NA0.10 FOR G508 POLARIZING MICROSCOPE
G500-2832
10X PLAN ACHROMATIC OBJECTIVE DIN, NA0.25 FOR G508 POLARIZING MICROSCOPE
G500-2833
40X PLAN ACHROMATIC OBJECTIVE DIN, NA0.65 FOR G508 POLARIZING MICROSCOPE
G500-2835
20X PLAN ACHROMATIC OBJECTIVE DIN, NA0.40 FOR G508 POLARIZING MICROSCOPE
G500-2837
60X PLAN ACHROMATIC OBJECTIVE DIN, NA0.85 FOR G508 POLARIZING MICROSCOPE
Header
Miscellaneous Accessories
G500-5001
MECHANICAL STAGE WITHOUT ABBE CONDENSER FOR G500(STAGE SIZE 150X140MM, MOVEMENT RANGE 76X50MM)
G500-6001
ABBE CONDENSER N.A. 1.25 W/ IRIS DIAPHRAGM FOR G500 SERIES
G500-6010
BLUE FILTER, DIAMETER 32MM (REF: XS-FCB)
G500-6011
GREEN FILTER, DIAMETER 32MM
G500-6012
YELLOW FILTER, DIAMETER 32MM (REF: XS-FCY)
G500-6013
NUETRAL FILTER, DIAMETER 32MM (REF: XS-FCF)
G500-8001
DUST COVER FOR G500 MICROSCOPE
G500-8031-1
PHASE ANNULUS SLIDER FOR USE WITH 10X AND 40X PLAN PHASE SET
G500-8032-1
PHASE ANNULUS SLIDER FOR 20X AND 100X PLAN PHASE
G500-8033
PHASE CONTRAST CENTERING TELESCOPE
G500-8041
DARKFIELD SLIDER FOR USE WITH 4X TO 40X POWER OBJECTIVES
G500-9005
FUSE 250V/3.15+B352A FOR G500 MICROSOCOPE
Actual Size
16”H x 6“Wx 12”D
Shipping Dimension
21”L x 19”W x 10“H
Net Weight
14.5 lbs
Shipping Weight
19 lbs
