Advanced Laboratory Microscope
Regular price
$2,083.00
Unit price
/
Unavailable
- SEIDENTOPF BINOCULAR HEAD
- WF10X PAIRED EYEPIECES
- 4X,10X,40XR,100XR DIN PLAN ACHROMAT OBJECTIVES
- BUILT-IN MECHANICAL STAGE WITH ABBE NA1.25 CONDENSER &IRIS
- HALOGEN ILLUMINATION

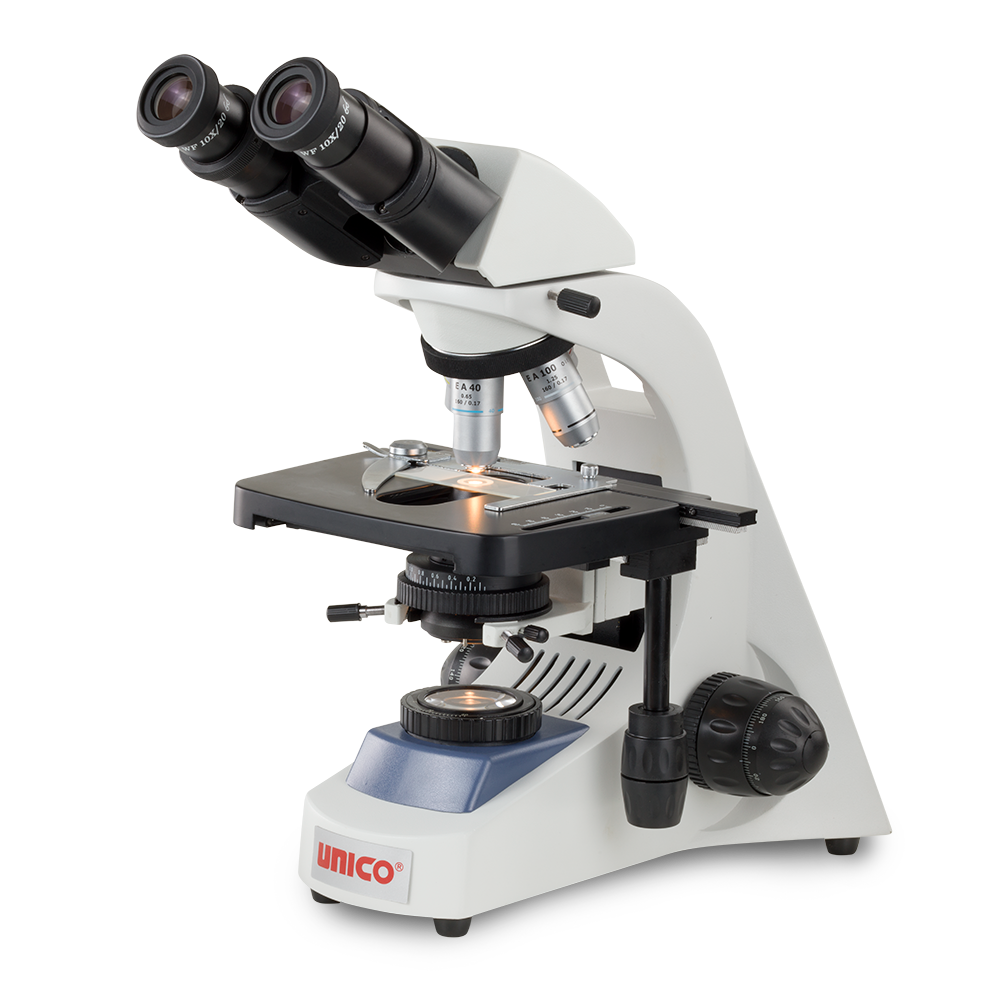

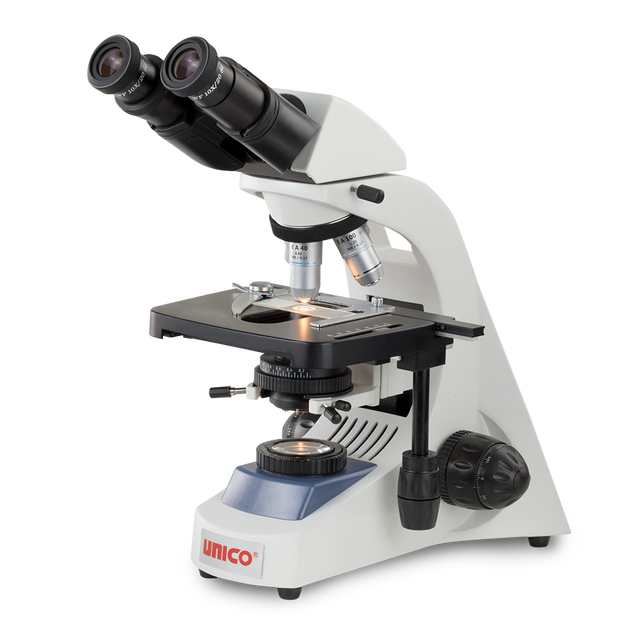

The IP730PL Binocular Microscope is a robust and versatile instrument designed for a wide range of applications in education, laboratories, and routine microscopy, now featuring enhanced optical performance. It boasts a comfortable binocular viewing head with WF10X wide-field eyepieces, providing clear and comfortable observation. The key upgrade in this model is the set of DIN standard Plan achromatic objectives (4X, 10X, 40X, and 100X oil immersion). These Plan objectives provide significantly improved image flatness across the entire field of view compared to standard achromatic objectives, resulting in sharper, more accurate images, especially at the edges. The 100X objective is designed for use with immersion oil to achieve the highest resolution. Illumination is provided by a powerful 6V 20W halogen lamp with intensity control, allowing users to adjust the brightness for optimal contrast and visibility. This microscope offers a notable improvement in optical quality, making it a valuable tool for detailed observation and analysis.
Head
Binocular
Eyepiece
WF10X
Objectives
4x 10x 40XR 100XR Plan
Stage
MECH.
Condenser
Abbe N.A.1.25
Illuminator
Halogen
Bodies
IP730-3004
SEIDENTOPF BINOCULAR BODY WITHOUT EYEPIECES FOR IP730 SERIES MICROSCOPE
IP730-3005
SEIDENTOPF TRINOCULAR BODY, 30 DEGREE INCLINED WITHOUT EYEPIECES FOR IP730 SERIES MICROSCOPE
IP750-3004
SEIDENTOPF BINOCULAR BODY WITHOUT EYEPIECES FOR IP50 SERIES MICROSCOPE
IP750-3005
SEIDENTOPF TRINOCULAR BODY, 30 DEGREE INCLINED WITHOUT EYEPIECES FOR IP750 SERIES MICROSCOPE
Header
Optics
IP750-1502
10X EXTRA WIDEFIELD EYEPIECE FN 22MM FOR IP730 AND IP750 MICROSCOPE
IP730-2101
4X DIN ACHROMAT OBJECTIVE, N.A. 0.10
IP730-2102
10X DIN ACHROMAT OBJECTIVE, N.A. 0.25
IP730-2103
40X DIN ACHROMAT OBJECTIVE, N.A. 0.65, RETRACTABLE FRONT LENS
IP730-2104
100X DIN ACHROMAT OBJECTIVE, N.A. 1.25, RETRACTABLE FRONT LENS
IP730-8030
PHASE SET W/ PLAN PHASE 10X-40X-100X OBJECTIVES, TURRET CONDENSER WITH "0" POSITION
IP750-2101
4X INFINITY ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2102
10X INFINITY ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2103
40X INFINITY ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2104
100X INFINITY ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2301
4X INFINITY PLAN ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2302
10X INFINITY PLAN ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2303
40X INFINITY PLAN ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2304
100X INFINITY PLAN ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2422
INFINITY PLAN PHASE OBJECTIVE 10X FOR IP750 SERIES
IP750-2423
INFINITY PLAN PHASE OBJECTIVE 40X FOR IP750 SERIES
IP750-2424
INFINITY PLAN PHASE OBJECTIVE 100X FOR IP750 SERIES
IP750-8030
PHASE SET W/ INFINITY PLAN PHASE 10X-40X-100X OBJECTIVES, TURRET CONDENSER WITH "0" POSITION
Header
Miscellaneous Accessories
IP750-5001
MECHANICAL STAGE WITHOUT ABBE CONDENSER FOR IP730 AND IP750 MICROSCOPE
IP750-6002
PHASE CONTRAST CONDENSER, TURRET, NA1.25 WITH 10X-40X-100X PHASE RING AND "0" BRIGHT FIELD POSITION
IP750-6003
DARKFIELD CONDERNSER FOR IP730 AND IP750 SERIES MICROSCOPE
IP730-8002
DUST COVER FOR IP730 AND 750 SERIES MICROSCOPE

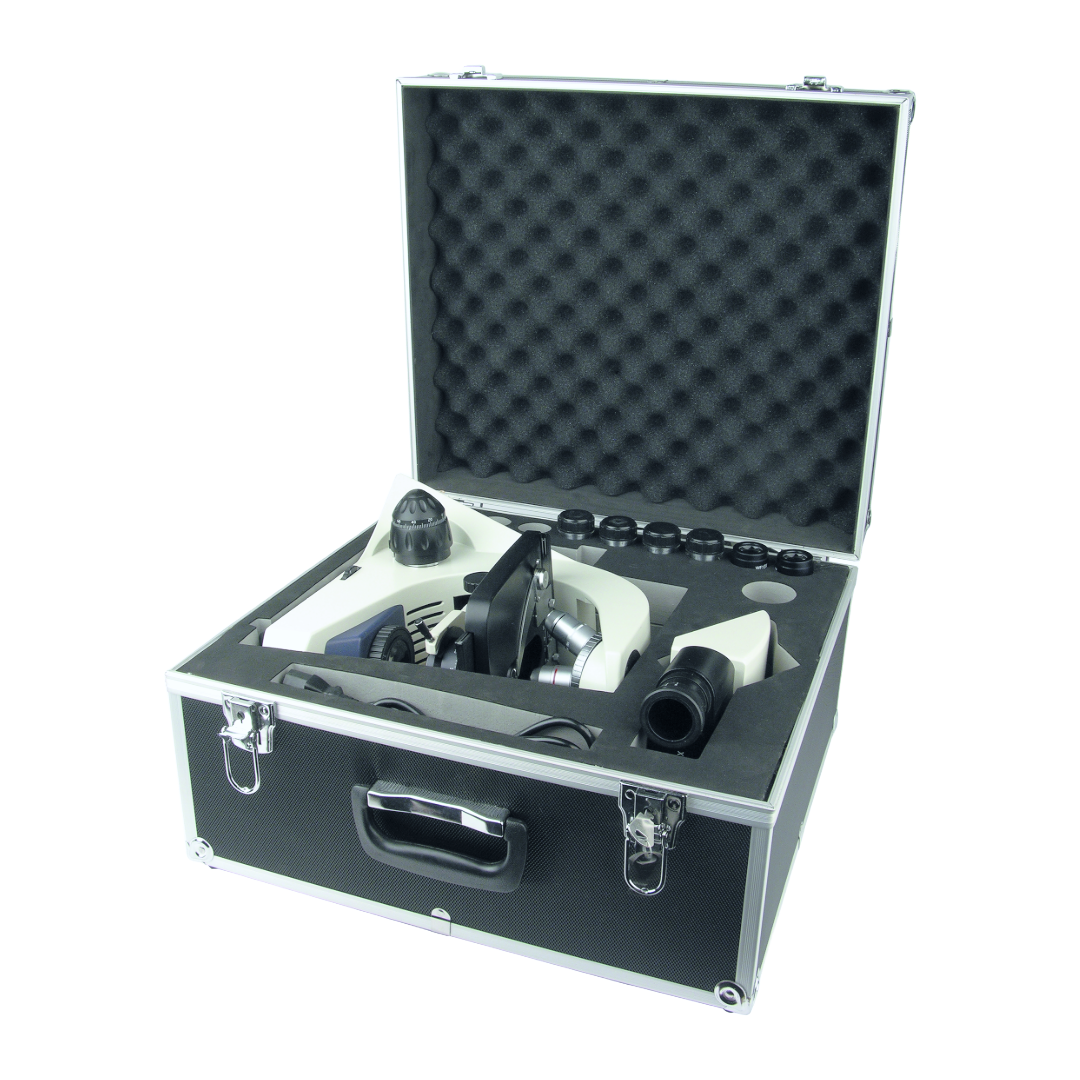

IP750-8901
HARD CARRYING CASE FOR IP730 AND IP750 SERIES MICROSCOPE
Size
10 in x 8.5 in x 15.4 in
Shipping Size
11 in x 14 in x 18 in
Weight
18 lbs
Shipping Weight
20 lbs
