Double Beam Spectrophotometer
Regular price
$10,998.00
Unit price
/
Unavailable
- WAVELENGTH RANGE: 190-1100nm
- SPECTRAL BANDPASS: 1.8nm
- WAVELENGTH ACCURACY: ± 0.3nm
- WAVELENGTH REPEATABILITY: ± 0.2nm
- BASELINE FLATNESS: ± 0.002A
- STRAY LIGHT:

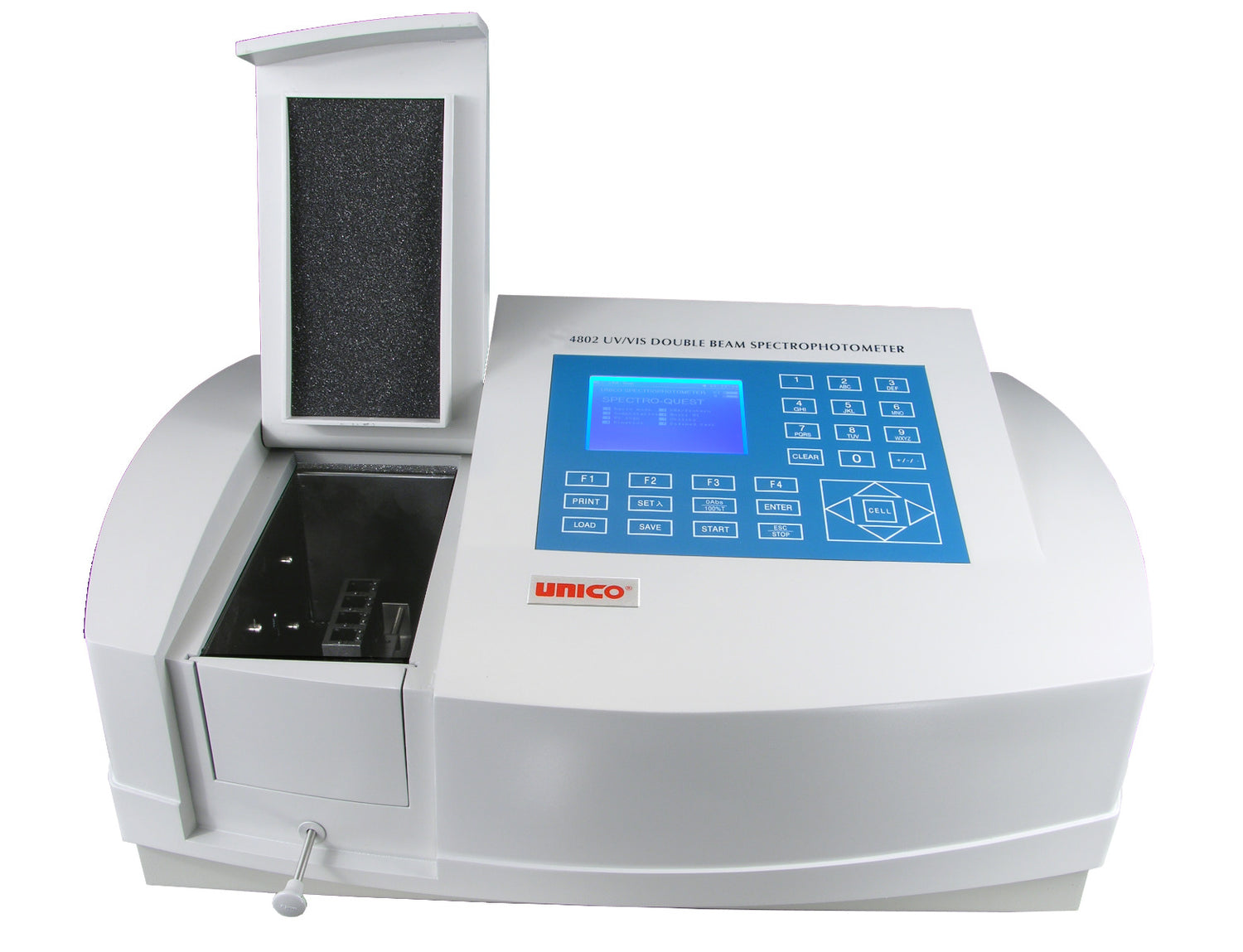

The UNICO SQ-4802 model spectrophotometer incorporates a 320 X 240 dot matrix LCD display for photometric results, easy operation and wavelength range of 190nm to 1100nm. The instrument is ideal for measurements in the visible and ultraviolet wavelength region of the electromagnetic spectrum.
Range
190 - 1100 nm Slit
Width
1.8 nm Optical
System
Split Beam, Grating System 1200 lines/mm Wavelength
Accuracy
SQ2800-401
Advanced Pc Window Software Package for SQ2800/2802 Featuring %T/Abs/Conc., Standard Curve, Kinetics, DNA/Protein, Scanning, Multi-Wavelength. Usb Cable and Manual Included.
SQ3802-401
Advanced Pc Window Software Package for SQ3802 Featuring %T/Abs/Conc., Standard Curve, Kinetics, DNA/Protein, Scanning, Multi-Wavelength. Usb Cable and Manual Included.
SQ4802-401
Advanced Pc Window Software Package for SQ4802 Featuring %T/Abs/Conc., Standard Curve, Kinetics, DNA/Protein, Scanning, Multi-Wavelength. Usb Cable and Manual Included.
SQ2800-101p
Test Tube Holder Kit for 8~20mm Diameter Test Tubes. Includes Universal Base, V-Type Tube Holder
SQ2800-102p
Long Path Cell Holder Kit for 4 Cells Up To 100 Mm. Pathlength. Includes Universal Base & One Holder
SQ2800-102p-50
Long Path Cell Holder Kit for 4 Cells Up To 50 Mm. Pathlength. Includes Universal Base & One Holder
SQ2800-103p
4 Place Cell Manual Holder for 10mm Cuvettes. Standard with The SQ2800, 2802, 2802s
SQ2800-104p
Cylindrical Cell Holder Kit for Cells Up To 100 Mm Pathlength. (22mm Dia.). Includes Universal Base & One Holder
SQ2800-105p
Water-Jacketed Cuvette Holder Kit for 10 Mm Single Square Cuvette Includes Universal Base, Water-Jacketed Holder with Flow-thru Panel (Water Bath Required)
SQ2800-106p
Micro Cell Holder Kit for Use with 10 Mm Microcuvettes. Includes Adjustable X-Y Base and Single Cuvette Holder for 10mm Square Cuvette
SQ2800-107a
Peltier Thermoelectric Single Cell Holder with Panel
SQ2800-107b
Peltier Controller Unit for Controlling Temperature: 15°C~40°C (Requires Peltier Cell Holder #SQ2800-107a)
SQ2800-107P
Peltier Package for Continuous Temperature Control From 15? To 40? C. Includes P/N Sq2800-107a Peltier Thermal Electric 10mm Cell Holder with Panel And P/N Sq2800-107b Peltier Controller Unit
SQ2800-108a
Flow-Thru Panel for Use with Ambient Flowcell System (Requires Flowcell, Tubing and P/N SQ2800-109b Flow-Thru/Peltier Controller)
SQ2800-108p
Ambient Flow-Thru Package. Includes P/N SQ2800-108a Flow-Thru Panel and P/N SQ2800-109b Flow-Thru/Peltier Controller and (Requires Flowcell and Tubing)
SQ2800-109a
Peltier/Sipper Panel and Thermoelectric Single Cell Holder for Temperature-Controlled Flow-Thru Setup (Requires Flowcell, Tubing and P/N SQ2800-109b Peltier/Sipper Controller)
SQ2800-109b
Peltier/Sipper Controller Unit Controlling Temperature: 15°C~40°C (Requires SQ2800-109a)
SQ2800-109P
Peltier/Sipper Package for Flow Through and Continuous Temperature Control From 15? To 40°C Includes P/N S-2800-109a Peltier/Sipper Cell Holder with Panel And P/N Sq2800-109b Peltier/Flow-Thru Controller (Requires Flowcell And Tubing)
SQ2800-121
8-Position Auto Cell Changer for Use with SQ2800/2802/3802 Series
SQ4802-120
6-Position Auto Cell Changer for Use with SQ4802 Series
SQ2800-122
Reflectance Measurement Attachment
SQ2800-132
Thin Film Measurement Attachment
Dimensions
620(L) x 400(W) x 280(H) mm
Weight
24 kg / 53lbs
Shipping Dimensions
720(L) x 525(W) x 370(H) mm
Shipping Weight
28 kg / 62 lbs
