Basic Lab Microscope
Regular price
$1,085.00
Unit price
/
Unavailable
- SEIDENTOPF BINOCULAR HEAD
- WF10X PAIRED EYEPIECES
- 4X,10X,40XR,100XR DIN ACHROMAT OBJECTIVES
- BUILT-IN MECHANICAL STAGE WITH ABBE NA1.25 CONDENSER &IRIS
- LED ILLUMINATION

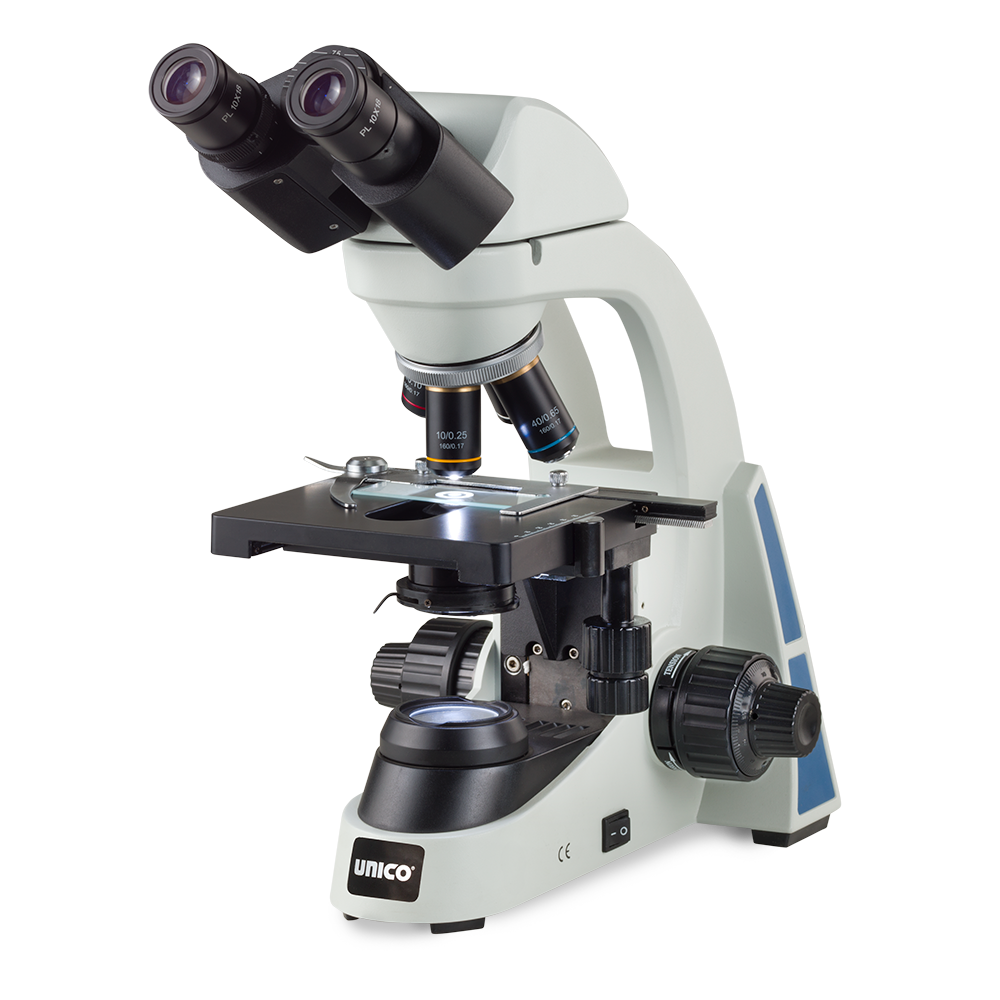

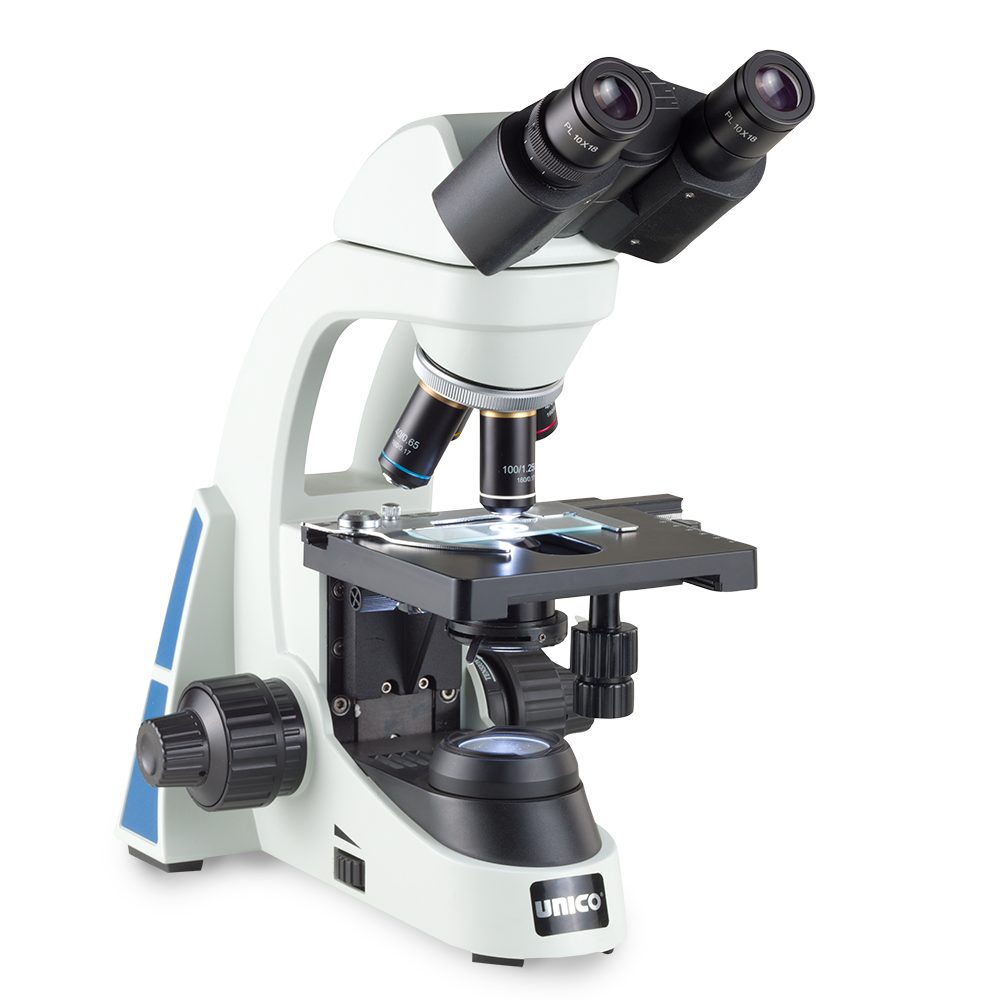

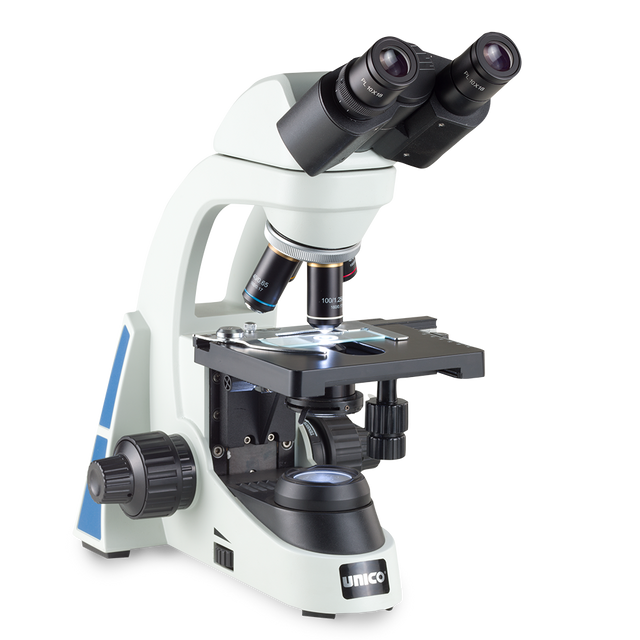

The M280 Binocular Microscope is a precision instrument designed for laboratory use, offering a range of features to facilitate detailed and accurate specimen observation. This microscope is equipped with wide-field WF10X eyepieces, providing a comfortable and expansive viewing experience for the user. The included set of objective lenses—4X, 10X, 40XR, and 100XR DIN—allows for versatile magnification options, catering to a variety of specimen types and research needs. The 4X objective provides a lower magnification for a broader overview of the sample, while the 10X objective offers increased detail. The 40XR and 100XR objectives are retractable and designed for higher magnification, with the 100XR objective specifically intended for oil immersion microscopy, enabling the visualization of extremely fine details.
Head
Binocular
Eyepiece
WF10X
Objectives
Achromat 4X/10X/40X/100X(oil)
Condenser
NA 1.25
Diaphragm
Iris
Stage
Mechanical
Illumination
LED
Bulb
3 Watt LED
Focusing
Coaxial
Bodies
M280-3004
SEIDENTOPF BINOCULAR FOR M280 SERIES
M280-3005
SEIDENTOPF TRINOCULAR FOR M280 SERIES
Header
Optics
M280-1401
10X WIDEFIELD EYEPIECE, SINGLE
M280-2101

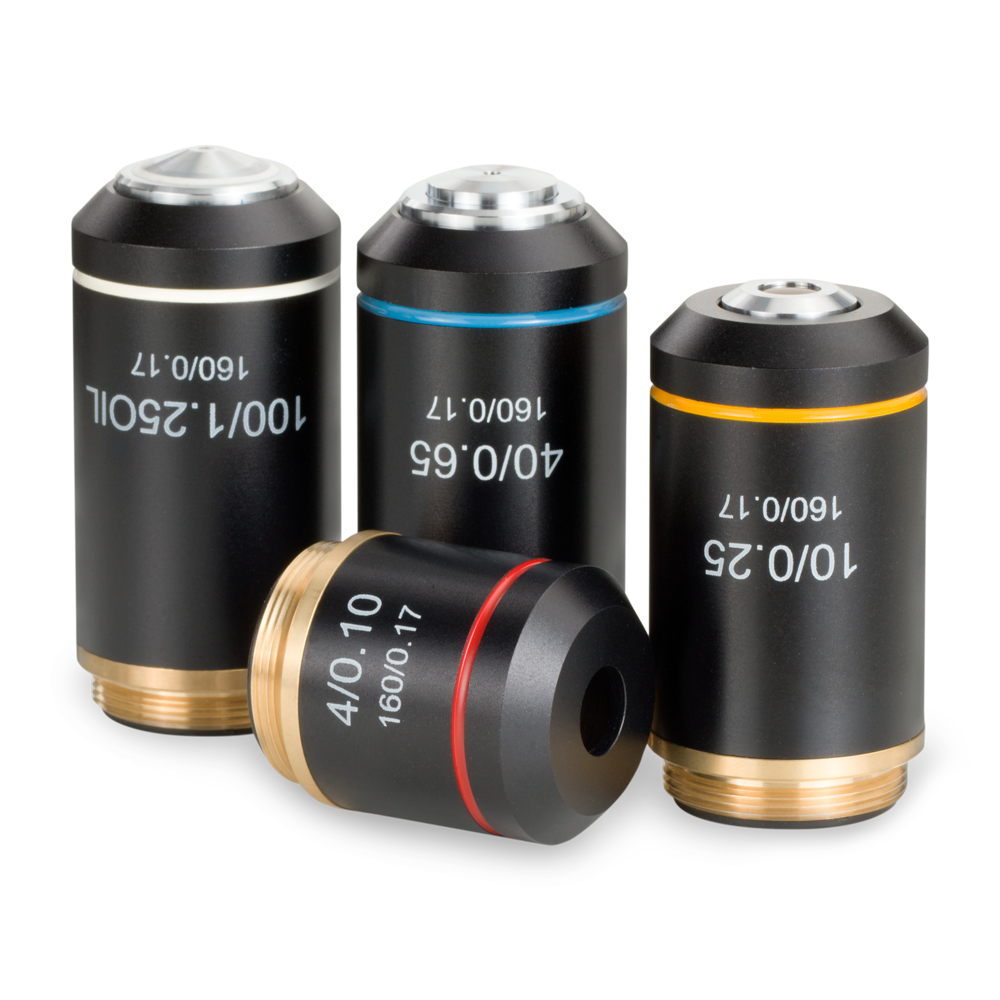

4X DIN ACHROMAT OBJECTIVE, N.A. 0.10
M280-2102
10X DIN ACHROMAT OBJECTIVE, N.A. 0.25
M280-2103
40X DIN ACHROMAT OBJECTIVE, N.A. 0.65, RETRACTABLE FRONT LENS
M280-2104
100X DIN ACHROMAT OBJECTIVE, N.A. 1.25, OIL, RETRACTABLE FRONT LENS
M280-2301
4X DIN PLAN ACHROMAT OBJECTIVE, N.A. 0.10
M280-2302
10X DIN PLAN ACHROMAT OBJECTIVE, N.A. 0.25
M280-2303
40X DIN PLAN ACHROMAT OBJECTIVE, N.A. 0.65, RETRACTABLE FRONT LENS
M280-2304
100X DIN PLAN ACHROMAT OBJECTIVE, N.A. 1.25, OIL, RETRACTABLE FRONT LENS
Header
Miscellaneous Accessories
M280-5003
MECHANICAL STAGE WITH ABBE N.A. 1.25 CONDENSER AND IRIS DIAPHRAGM
M280-7003
FUSE 250V 1.5A
M280-8001
DUST COVER FOR M280 SERIES
M280-8902
EYEPIECE POINTER FOR M280 SERIES
Shipping Size
20 in x 12 in x 19 in
Weight
19 lbs
Shipping Weight
20 lbs
