SKU: M260

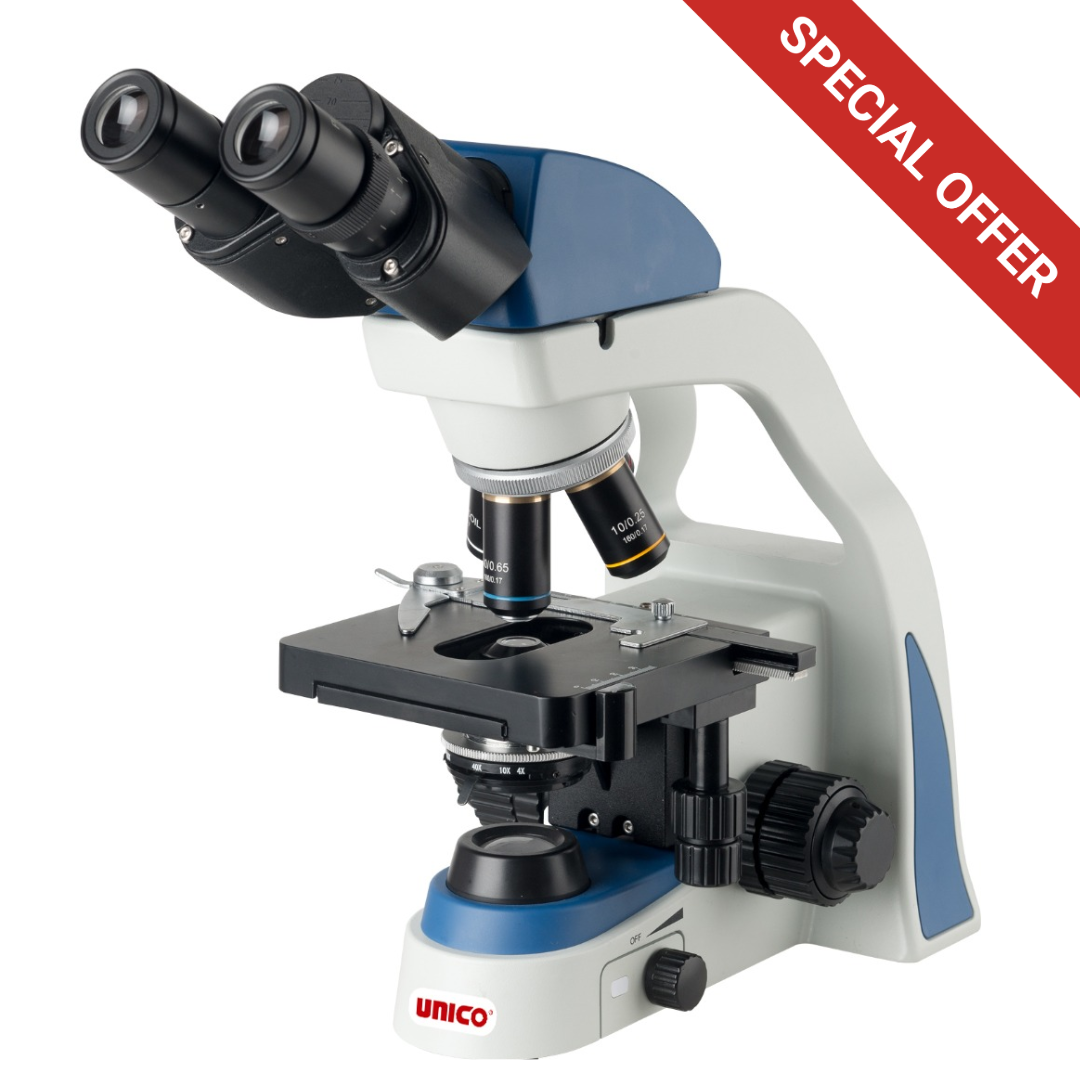

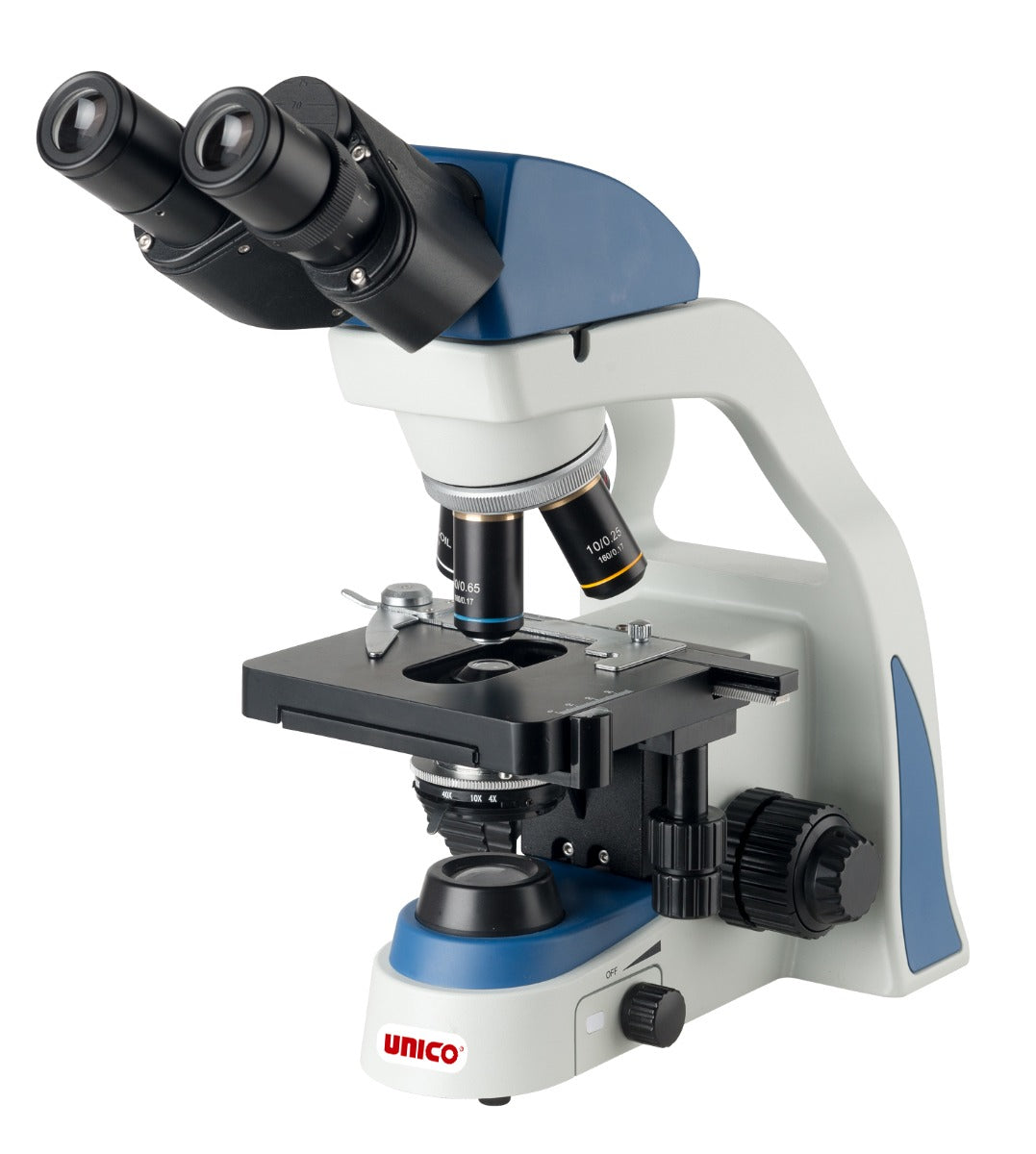

M260 SERIES MICROSCOPE

Regular price $1,085.00
  • Binocular head for comfortable viewing and reduced eye strain
  • Widefield 10X eyepieces for a broad field of view

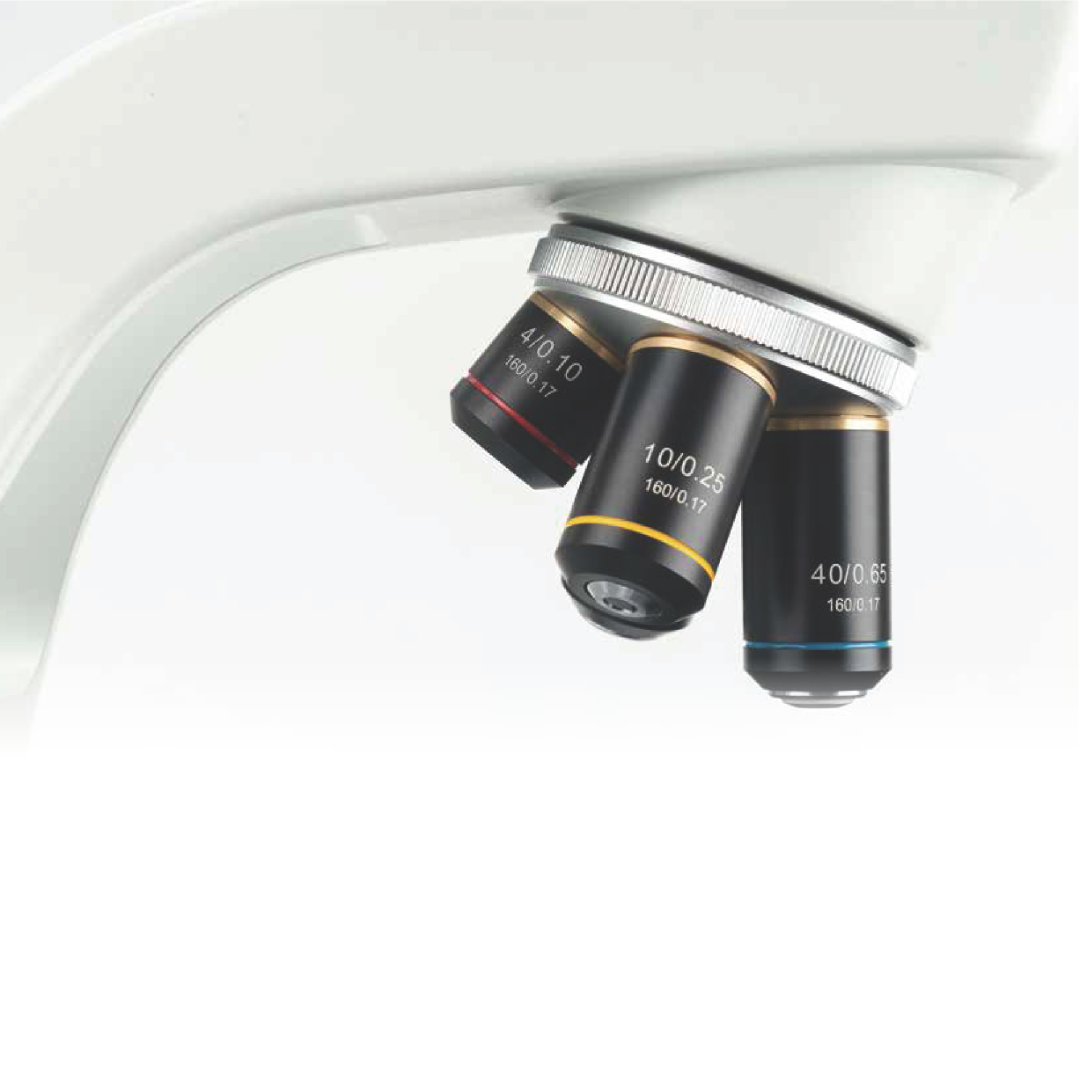

  • Achromat objective lenses: 4X, 10X, 40X, and 100X (oil immersion) for enhanced image clarity and color correction
  • Abbe condenser with NA 1.25 for improved light control and contrast
  • Iris diaphragm to precisely adjust illumination
  • Built-in mechanical stage with smooth X-Y controls for accurate specimen positioning
The M260 Binocular Microscope is engineered to deliver clarity, consistency, and comfort during extended observation sessions. Its binocular head provides a more natural viewing experience, reducing fatigue during long periods of use. The widefield 10X eyepieces and achromatic objective lenses work together to produce crisp, true-to-color images across all magnifications—ideal for studying cell structures, bacteria, and prepared slides. The built-in mechanical stage allows for precise slide movement in both directions, while the coaxial focusing system ensures smooth transitions between coarse and fine adjustments. The LED illumination system is energy-efficient and provides consistent brightness without generating excess heat, making it perfect for sensitive samples and long sessions. With a sturdy, ergonomic design and essential laboratory features, the M260 is a dependable and cost-effective solution for microscopy education and everyday use in lab environments.
Head
Binocular
Eyepiece
WF10X
Objectives
Achromat 4X/10X/40X/100X(oil)
Condenser
NA 1.25
Diaphragm
Iris
Stage
Mechanical
Illumination
LED
Bulb
3 Watt LED
Focusing
Coaxial

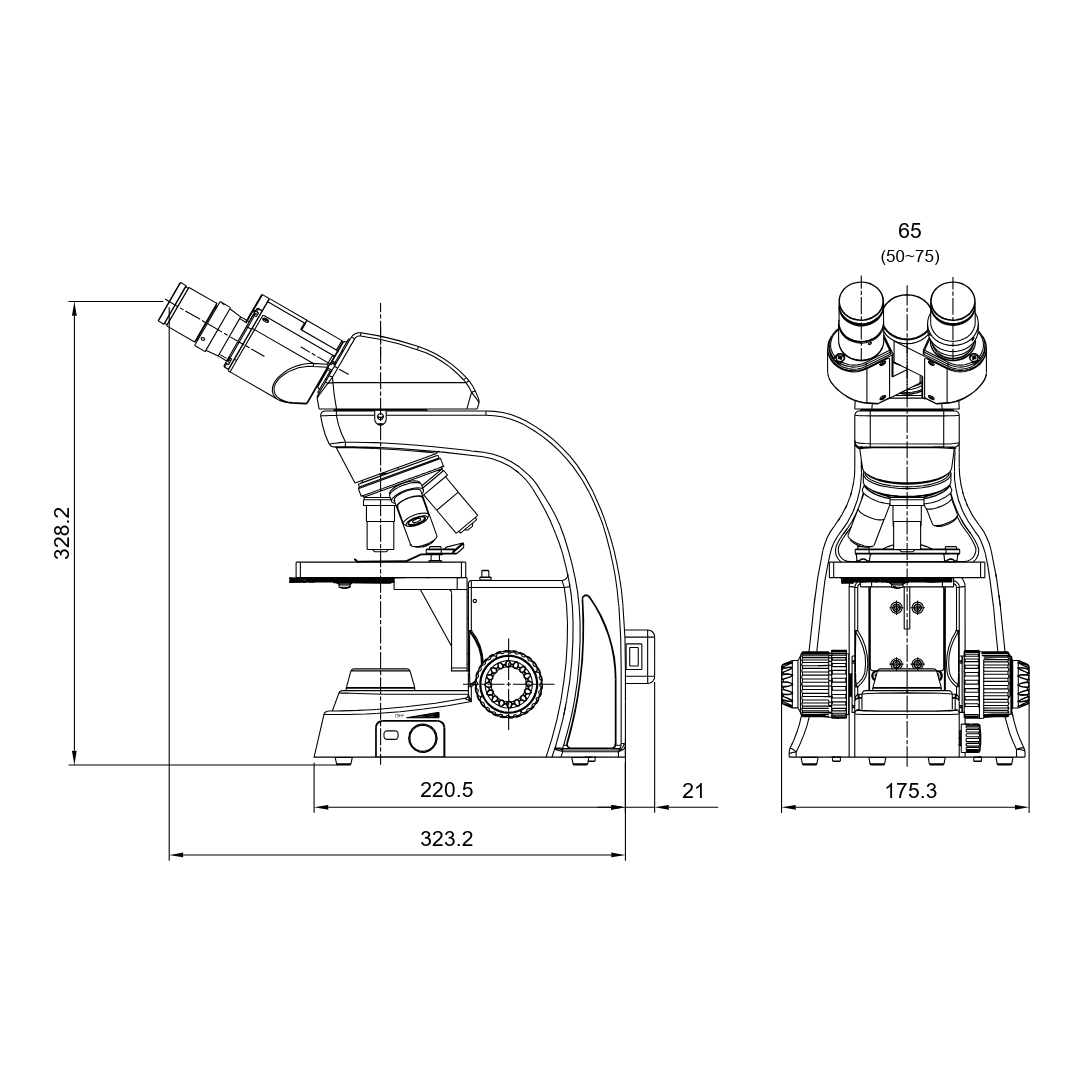

Size
12.5 in x 8.5 in x 16.5 in
Weight
13 lbs
M260 Binocular Microscope - WF10X, 4X, 10X, 40XR, 100XR, DIN, Mechanical Stage, Abbe NA 1.25 & Iris, LED Illumination
