Infinity Phase Microscope
Regular price
$3,665.00
Unit price
/
Unavailable
- SEIDENTOPF TRINOCULAR HEAD
- WF10X PAIRED EYEPIECES
- 10X,40XR,100XR DIN INFINITY PLAN PHASE OBJECTIVES
- BUILT-IN MECHANICAL STAGE WITH PHASE CONDENSER
- LED ILLUMINATION

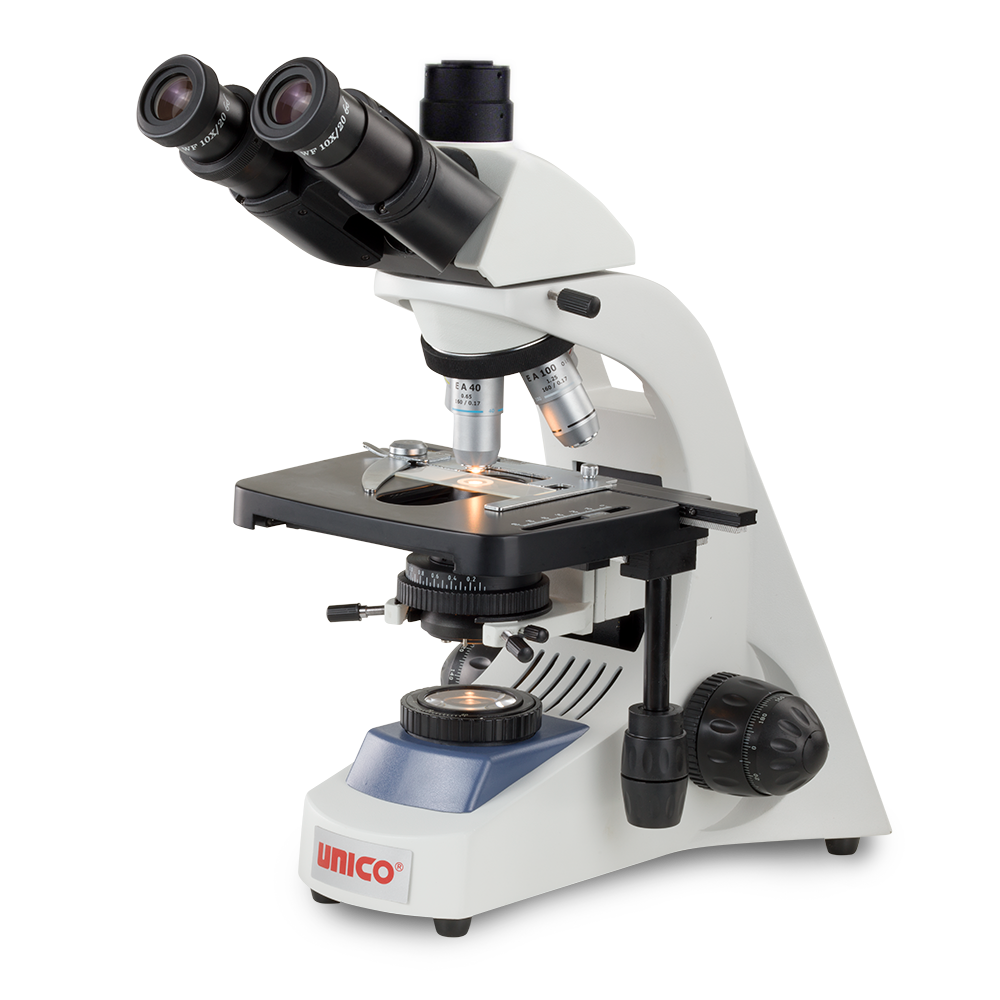

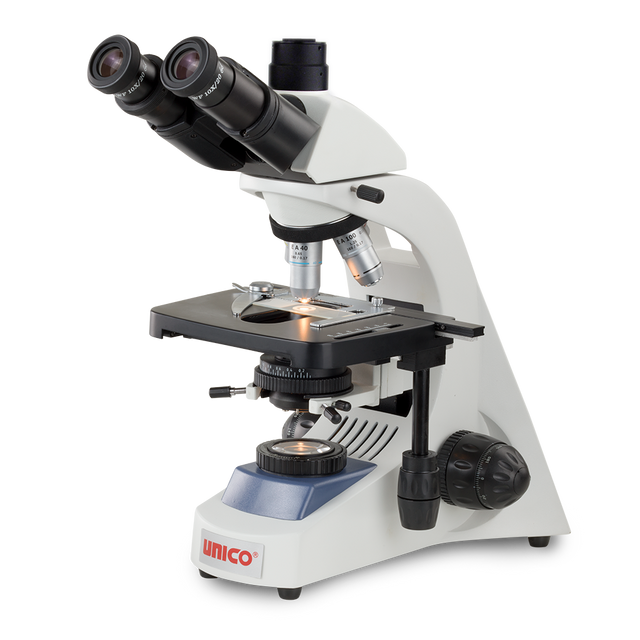

The IP755T Infinity Plan Phase Trinocular Microscope is a high-performance instrument designed for advanced microscopy applications requiring both brightfield and phase contrast observation, along with the ability to capture high-quality images and videos. It features a Siedentopf trinocular viewing head, allowing for comfortable binocular viewing and simultaneous connection to a microscope camera for documentation and analysis. Wide-field WF10X eyepieces provide a comfortable viewing experience and a broad field of view. The microscope utilizes an infinity optical system, providing superior image quality, improved parfocality (maintaining focus when changing objectives), and greater flexibility for adding accessories. It's equipped with a set of high-quality Infinity Plan objectives: a 4X brightfield objective for overview scans and specialized Infinity Plan Phase objectives (10X, 40X, and 100X oil immersion) for visualizing unstained or transparent specimens. These phase contrast objectives, combined with the integrated phase annuli, enhance contrast and reveal details invisible with standard brightfield microscopy. The 100X objective requires immersion oil for optimal resolution in both brightfield and phase contrast modes. Illumination is provided by an energy-efficient LED light source with intensity control, offering bright, even illumination and long bulb life. This microscope is ideally suited for demanding applications in biology, microbiology, cell culture, pathology, research, and any field requiring both brightfield and phase contrast microscopy along with high-quality imaging capabilities.
Head
Trinocular
Eyepiece
WF10X
Objectives
4x Plan 10x 40XR 100XR Infinity Phase Plan
Stage
MECH.
Condenser
Abbe N.A.1.25
Illuminator
LED
Bodies
IP730-3004
SEIDENTOPF BINOCULAR BODY WITHOUT EYEPIECES FOR IP730 SERIES MICROSCOPE
IP730-3005
SEIDENTOPF TRINOCULAR BODY, 30 DEGREE INCLINED WITHOUT EYEPIECES FOR IP730 SERIES MICROSCOPE
IP750-3004
SEIDENTOPF BINOCULAR BODY WITHOUT EYEPIECES FOR IP50 SERIES MICROSCOPE
IP750-3005
SEIDENTOPF TRINOCULAR BODY, 30 DEGREE INCLINED WITHOUT EYEPIECES FOR IP750 SERIES MICROSCOPE
Header
Optics
IP750-1502
10X EXTRA WIDEFIELD EYEPIECE FN 22MM FOR IP730 AND IP750 MICROSCOPE
IP730-2101
4X DIN ACHROMAT OBJECTIVE, N.A. 0.10
IP730-2102
10X DIN ACHROMAT OBJECTIVE, N.A. 0.25
IP730-2103
40X DIN ACHROMAT OBJECTIVE, N.A. 0.65, RETRACTABLE FRONT LENS
IP730-2104
100X DIN ACHROMAT OBJECTIVE, N.A. 1.25, RETRACTABLE FRONT LENS
IP730-8030
PHASE SET W/ PLAN PHASE 10X-40X-100X OBJECTIVES, TURRET CONDENSER WITH "0" POSITION
IP750-2101
4X INFINITY ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2102
10X INFINITY ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2103
40X INFINITY ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2104
100X INFINITY ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2301
4X INFINITY PLAN ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2302
10X INFINITY PLAN ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2303
40X INFINITY PLAN ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2304
100X INFINITY PLAN ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2422
INFINITY PLAN PHASE OBJECTIVE 10X FOR IP750 SERIES
IP750-2423
INFINITY PLAN PHASE OBJECTIVE 40X FOR IP750 SERIES
IP750-2424
INFINITY PLAN PHASE OBJECTIVE 100X FOR IP750 SERIES

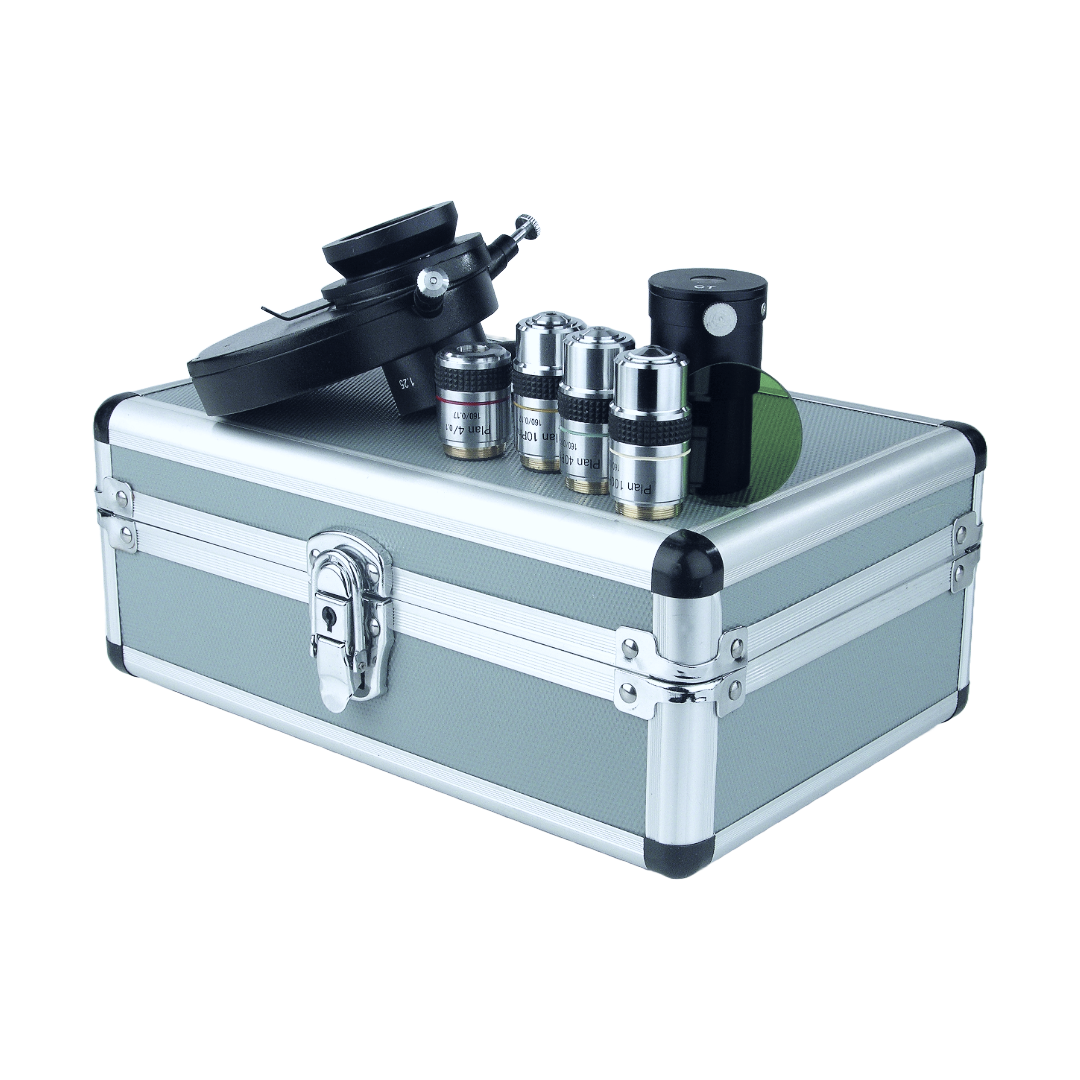

IP750-8030
PHASE SET W/ INFINITY PLAN PHASE 10X-40X-100X OBJECTIVES, TURRET CONDENSER WITH "0" POSITION
Header
Miscellaneous Accessories
IP750-5001
MECHANICAL STAGE WITHOUT ABBE CONDENSER FOR IP730 AND IP750 MICROSCOPE
IP750-6002
PHASE CONTRAST CONDENSER, TURRET, NA1.25 WITH 10X-40X-100X PHASE RING AND "0" BRIGHT FIELD POSITION
IP750-6003
DARKFIELD CONDERNSER FOR IP730 AND IP750 SERIES MICROSCOPE
IP730-8002
DUST COVER FOR IP730 AND 750 SERIES MICROSCOPE
IP750-7006
6V 20W HALOGEN BULB, 4MM PIN FOR IP730 AND IP750 MICROSCOPE
IP750-8901
HARD CARRYING CASE FOR IP730 AND IP750 SERIES MICROSCOPE
Size
10 in x 8.5 in x 15.4 in
Shipping Size
11 in x 14 in x 18 in
Weight
18 lbs
Shipping Weight
20 lbs
