- SEIDENTOPF BINOCULAR HEAD
- WF10X PAIRED EYEPIECES
- 10X,40XR,100XR DIN PLAN PHASE OBJECTIVES
- BUILT-IN MECHANICAL STAGE WITH PHASE CONDENSER
- LED ILLUMINATION

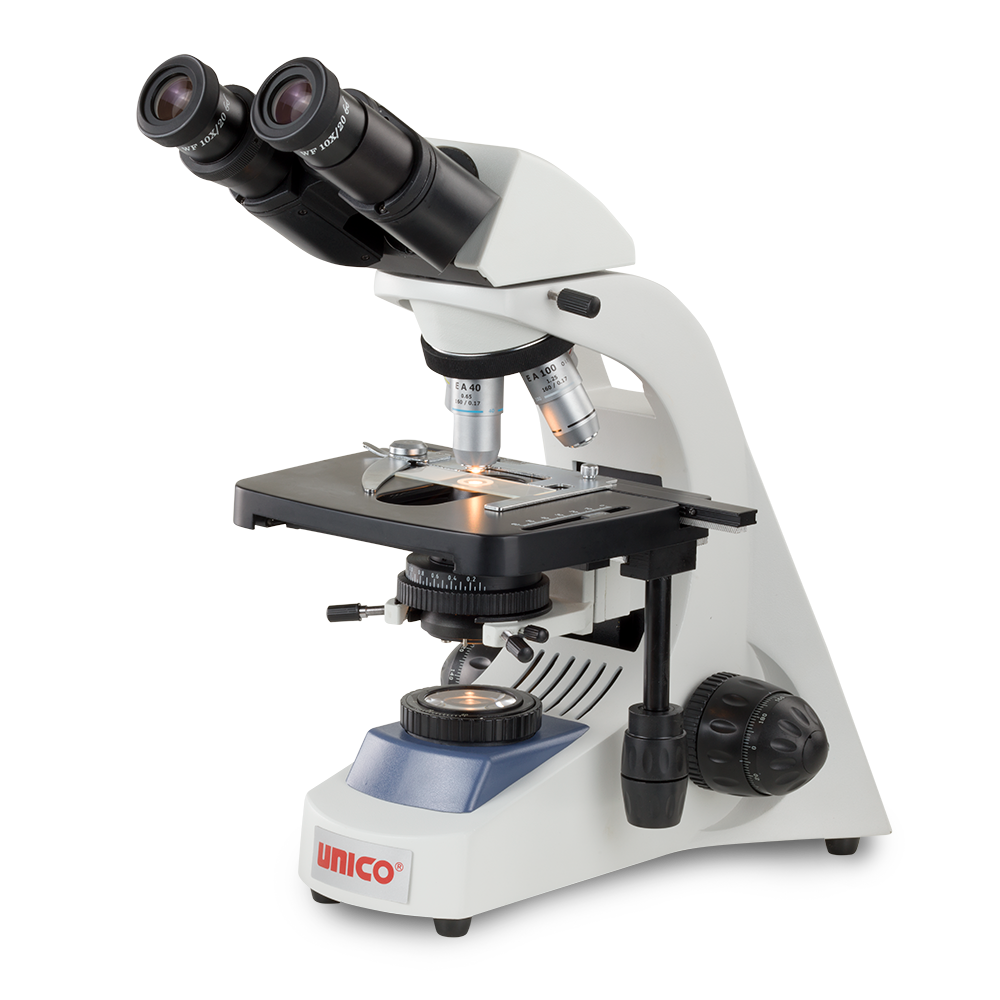

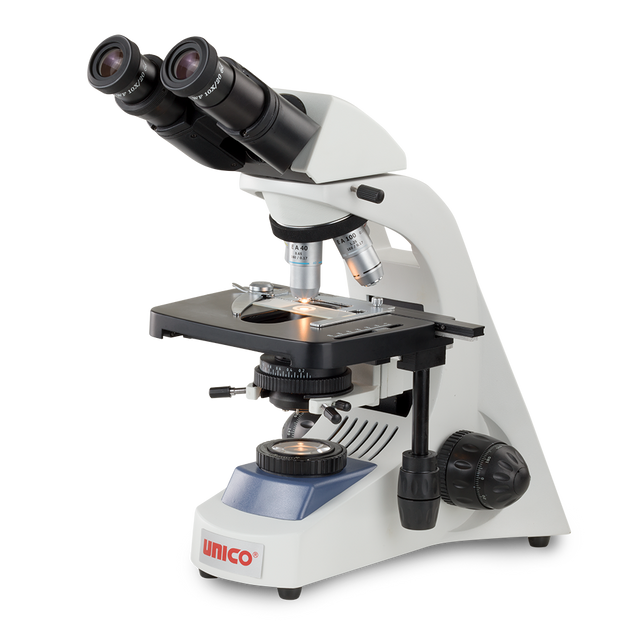

This binocular microscope offers advanced imaging capabilities with a strong focus on phase contrast microscopy. Equipped with wide-field WF10X eyepieces, it provides comfortable viewing with a wide field of view. The optical system features a Plan 4X objective for overview scans and specialized Plan Phase Contrast objectives (10X, 40XR, and 100XR). These phase contrast objectives, in conjunction with the included phase annuli, enable visualization of unstained or transparent specimens by enhancing contrast and revealing details not visible with standard brightfield microscopy. The mechanical stage allows for precise and controlled movement of the specimen slide. Illumination is provided by an energy-efficient LED light source, offering bright, even illumination with adjustable intensity for optimal viewing conditions in both brightfield and phase contrast modes. This microscope is well-suited for biological and medical applications where viewing unstained specimens is essential, such as cell culture, microbiology, and pathology.
Head
Binocular
Eyepiece
WF10X
Objectives
4x Plan 10x 40XR 100XR Phase Plan
Stage
MECH.
Condenser
Abbe N.A.1.25
Illuminator
LED
Bodies
IP730-3004
SEIDENTOPF BINOCULAR BODY WITHOUT EYEPIECES FOR IP730 SERIES MICROSCOPE
IP730-3005
SEIDENTOPF TRINOCULAR BODY, 30 DEGREE INCLINED WITHOUT EYEPIECES FOR IP730 SERIES MICROSCOPE
IP750-3004
SEIDENTOPF BINOCULAR BODY WITHOUT EYEPIECES FOR IP50 SERIES MICROSCOPE
IP750-3005
SEIDENTOPF TRINOCULAR BODY, 30 DEGREE INCLINED WITHOUT EYEPIECES FOR IP750 SERIES MICROSCOPE
Header
Optics
IP750-1502
10X EXTRA WIDEFIELD EYEPIECE FN 22MM FOR IP730 AND IP750 MICROSCOPE
IP730-2101
4X DIN ACHROMAT OBJECTIVE, N.A. 0.10
IP730-2102
10X DIN ACHROMAT OBJECTIVE, N.A. 0.25
IP730-2103
40X DIN ACHROMAT OBJECTIVE, N.A. 0.65, RETRACTABLE FRONT LENS
IP730-2104
100X DIN ACHROMAT OBJECTIVE, N.A. 1.25, RETRACTABLE FRONT LENS

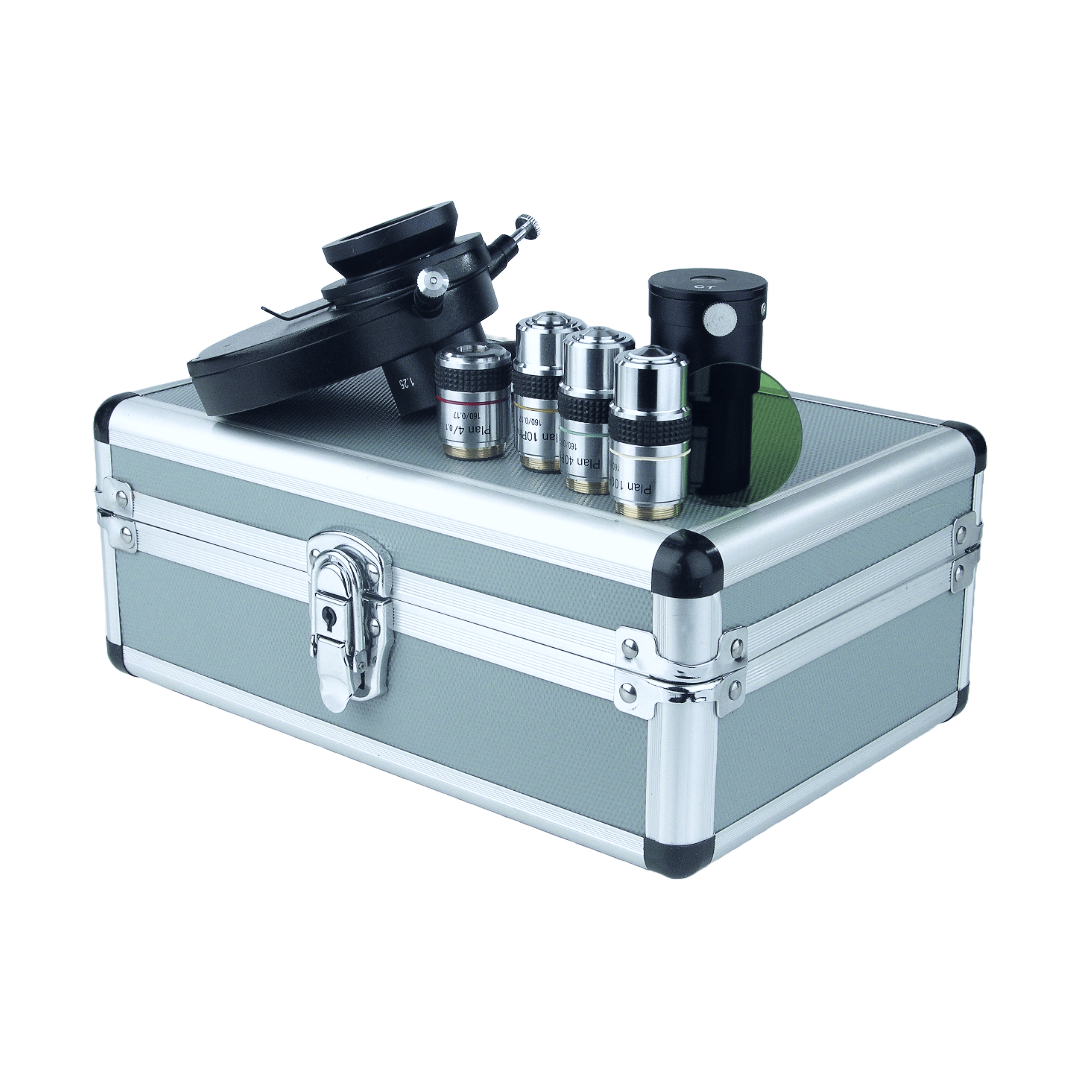

IP730-8030
PHASE SET W/ PLAN PHASE 10X-40X-100X OBJECTIVES, TURRET CONDENSER WITH "0" POSITION
IP750-2101
4X INFINITY ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2102
10X INFINITY ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2103
40X INFINITY ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2104
100X INFINITY ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2301
4X INFINITY PLAN ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2302
10X INFINITY PLAN ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2303
40X INFINITY PLAN ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2304
100X INFINITY PLAN ACHROMATIC OBJECTIVE FOR IP750 INFINITY MICROSCOPE
IP750-2422
INFINITY PLAN PHASE OBJECTIVE 10X FOR IP750 SERIES
IP750-2423
INFINITY PLAN PHASE OBJECTIVE 40X FOR IP750 SERIES
IP750-2424
INFINITY PLAN PHASE OBJECTIVE 100X FOR IP750 SERIES
IP750-8030
PHASE SET W/ INFINITY PLAN PHASE 10X-40X-100X OBJECTIVES, TURRET CONDENSER WITH "0" POSITION
Header
Miscellaneous Accessories
IP750-5001
MECHANICAL STAGE WITHOUT ABBE CONDENSER FOR IP730 AND IP750 MICROSCOPE
IP750-6002
PHASE CONTRAST CONDENSER, TURRET, NA1.25 WITH 10X-40X-100X PHASE RING AND "0" BRIGHT FIELD POSITION
IP750-6003
DARKFIELD CONDERNSER FOR IP730 AND IP750 SERIES MICROSCOPE
IP730-8002
DUST COVER FOR IP730 AND 750 SERIES MICROSCOPE
IP750-7006
6V 20W HALOGEN BULB, 4MM PIN FOR IP730 AND IP750 MICROSCOPE
IP750-8901
HARD CARRYING CASE FOR IP730 AND IP750 SERIES MICROSCOPE
Size
10 in x 8.5 in x 15.4 in
Shipping Size
11 in x 14 in x 18 in
Weight
18 lbs
Shipping Weight
20 lbs
