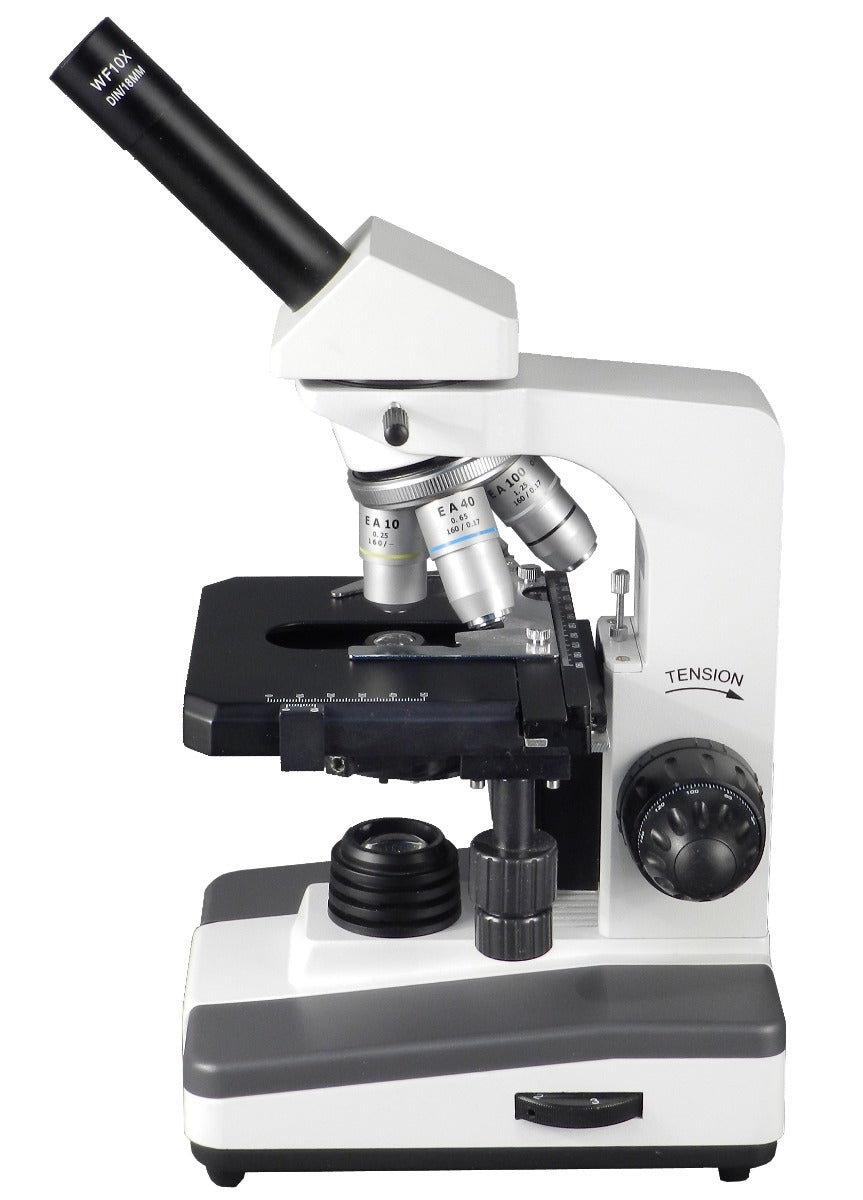

College Microscope
Regular price
$850.00
Unit price
/
Unavailable
- MONOCULAR HEAD
- WF10X EYEPIECE
- 4X,10X,40XR,100XR DIN ACHROMAT OBJECTIVES
- BUILT-IN MECHANICAL STAGE WITH ABBE NA1.25 CONDENSER &IRIS
- LED ILLUMINATION
The M251 Monocular Microscope is a robust and versatile instrument ideal for educational settings and routine laboratory work. It features a graduated mechanical stage for precise specimen positioning and tracking, an Abbe condenser with iris diaphragm for optimal control of illumination and contrast, and a set of DIN standard objectives (4X, 10X, 40X, and 100X oil immersion) for versatile magnification. The built-in 6V 20W LED illumination with intensity adjustment provides bright, even lighting for clear and detailed observation. This microscope offers a combination of advanced features typically found in higher-end models, making it an excellent value for students, educators, and laboratory professionals.
Head
Monocular
Eyepiece
10x WF
Objectives
4, 10, 40, 100x
Condenser
NA 1.25
Diaphragm
Iris
Stage
Mechanical
Illumination
LED
Bulb
3 Watt LED
Focusing
Coaxial
Bodies
M250-3001
MONOCULAR HEAD WITHOUT EYEPIECE
M250-3002
DUAL VIEWING HEAD WITH DIOPTER WITHOUT EYEPIECES
M250-3004
SEIDENTOPF BINOCULAR HEAD FOR M250 AND M250LED SERIES
Header
Optics
M250-1401
10X WIDEFIELD EYEPIECE, SINGLE
M250-1411
10X WIDEFIELD EYEPIECE WITH POINTER, SINGLE
M250-1499
5X EYEPIECE, SINGLE
M250-2101
4X DIN ACHROMAT OBJECTIVE, N.A. 0.10
M250-2102
10X DIN ACHROMAT OBJECTIVE, N.A. 0.25
M250-2103
40X DIN ACHROMAT OBJECTIVE, N.A. 0.65, RETRACTABLE FRONT LENS
M250-2104
100X DIN ACHROMAT OBJECTIVE, N.A. 1.25, OIL, RETRACTABLE FRONT LENS
Header
Miscellaneous Accessories
M250-5003
MECHANICAL STAGE WITH ABBE N.A. 1.25 CONDENSER AND IRIS DIAPHRAGM
M250-7001
6V20W HALOGEN BULB, 4MM PIN FOR M250 SERIES
M250-7003
FUSE 250V 1.5A
M250-8001
DUST COVER FOR M250 SERIES
M250-8902
EYEPIECE POINTER FOR M250 SERIES
Actual Size
8.5 in x 6.5 in x 14.4 in
Shipping Size
12.5 in x 8.5 in x 16.5 in
Weight
13 lbs (6 kg)
Shipping Weight
13 lbs (6 kg)
