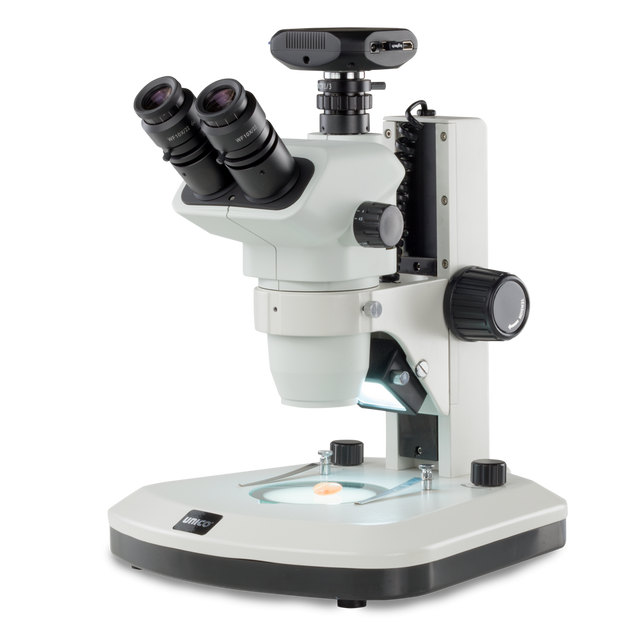

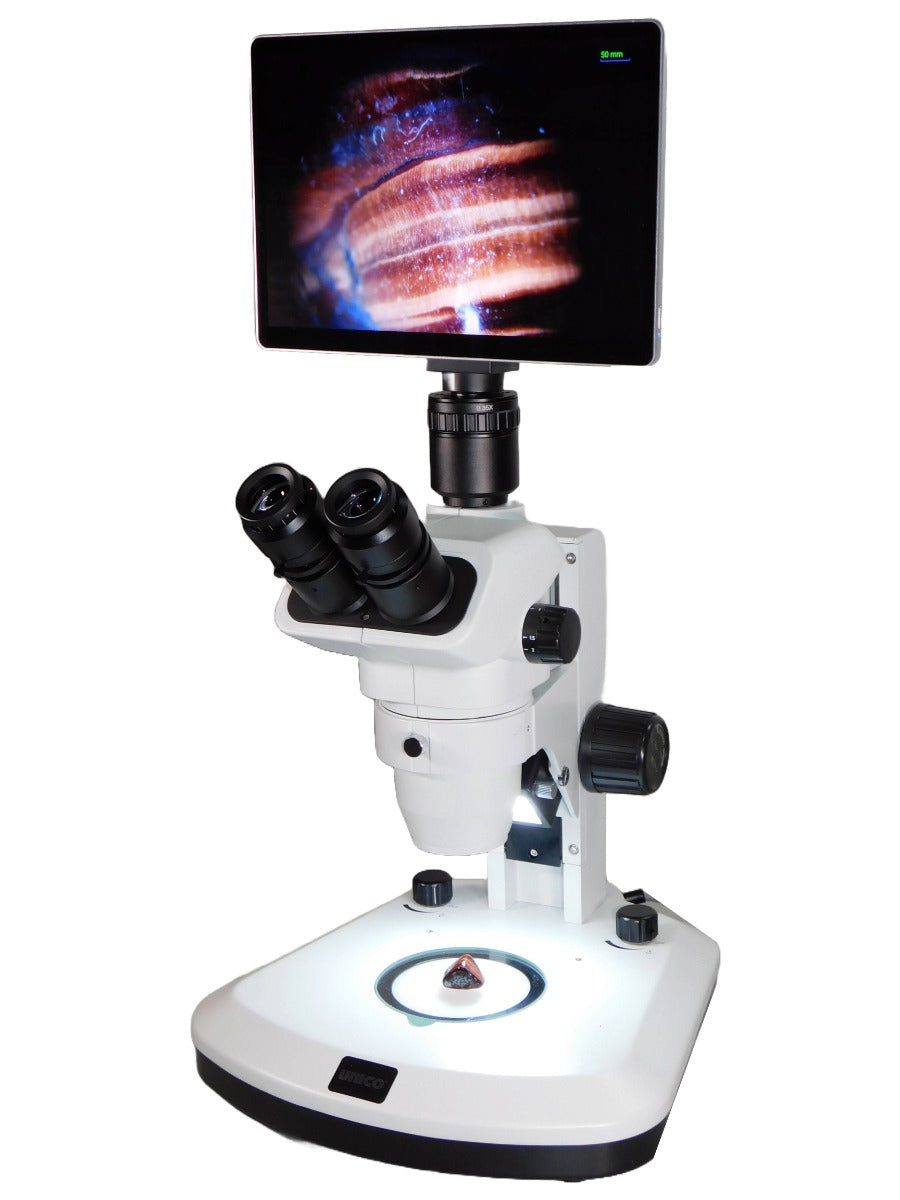

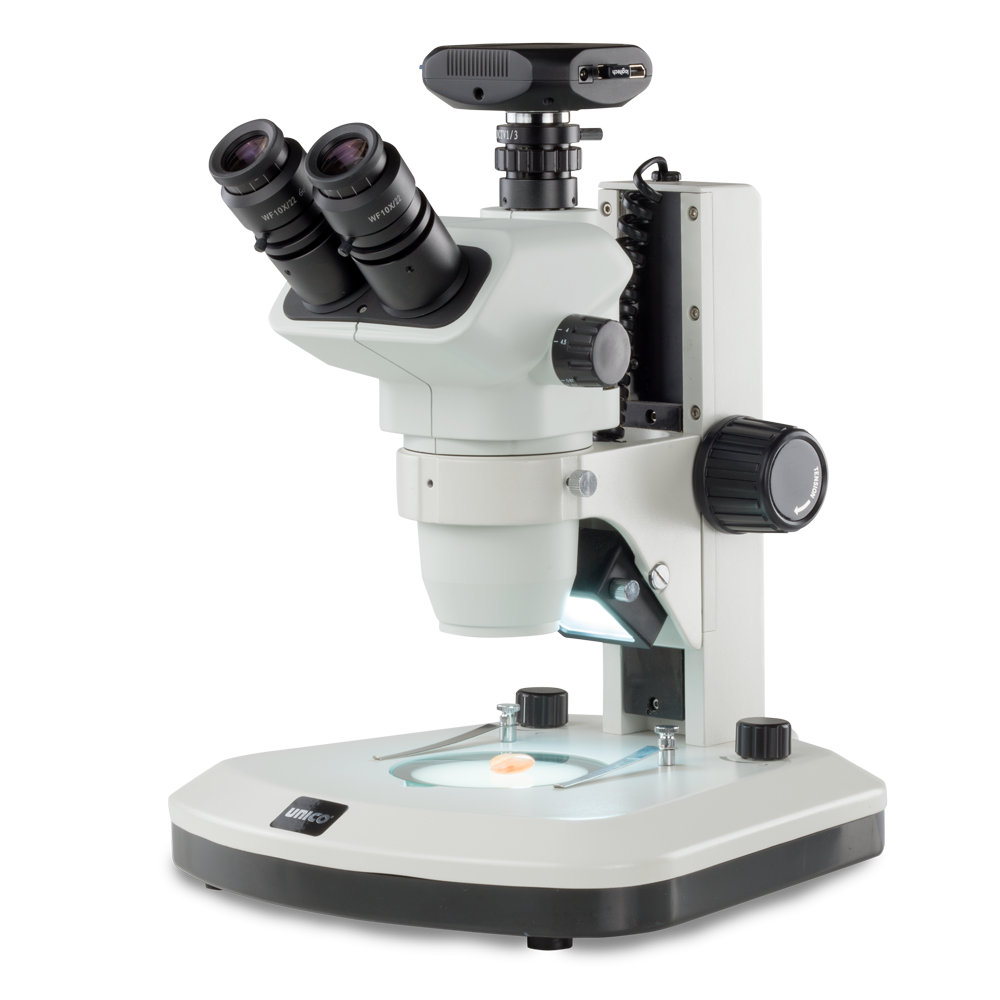

Zoom Stereo Microscope
Regular price
$2,426.00
Unit price
/
Unavailable
- TRINOCULAR ZOOM STEREO HEAD
- WF10X PAIRED EYEPIECES
- 0.7X-4.5X CONTINUOUS ZOOM BODY
- FOCUSING STAND WITH TOP AND BOTTOM LED ILLUMINATION
ZM190 Series zoom stereo microscopes adapt multifunction design and excellent manufacturing technology. The ZM190 have been built to meet customer demands for a reliable performance at a competitive price. The superb quality and affordable price make the ZM190 Series ideal instruments for a variety of industrial, medical, educational, and special OEM applications.
Binocular head features high Eyepoint eyepieces, dual diopter control for sharp, clear focus control matched to individual eye differences.
The top and bottom light is a super bright LED designed to provide excellent lighting without giving off heat. Four-way lighting controls: Off, Top light only, Bottom light only, Both Top and bottom light on.
Head
Trinocular
Eyepiece
WF10X
Body
0.7X~4.5X
Stand
DF-HF Stand
Illumination
Top halogen & Bottom fluorescent
Bodies
D4-3001
Binocular Zoom Body 0.7X~4.5X
D4-3002
Trinocular Zoom Body 0.7X~4.5X
Header
Eyepieces and Auxiliary Lens
D4-1001
Widefield Eyepiece 10X FN: 19 mm
D4-1002
Widefield Eyepiece 15X FN: 14.5 mm
D4-1003
Widefield Eyepiece 20X FN: 11 mm
D4-1004
Widefield Eyepiece 25X FN: 9 mm
D4-1005
Extra Widefield Eyepiece 10X FN: 23 mm
D4-2001
Auxiliary Lens 2X
D4-2002
Auxiliary Lens 1.5X
D4-2003
Auxiliary Lens 0.75X
D4-2004
Auxiliary Lens 0.5X
D4-2005
Auxiliary Lens 0.3X
Header
Stands, Arms and Bases
D4-4001
PE Stand, pole type with extension pillar
D4-4001HF
PE-HF Stand, incident halogen (6V, 20W) and transmitted fluorescent illumination (5W)
D4-4002
DPT Stand, with incident illuminator port
D4-4003FF
DFF Stand, incident and transmitted fluorescent illumination (5W)
D4-4004
DE Stand, two-step extensible arm
D4-4004HF
Same as D4-4004 but with incident halogen (6V, 20W) and transmitted fluorescent illumination (5W)
D4-4006
Boom Stand with universal arm (D4-4101 included)
D4-4007
Boom Stand with 25 mm post carrier (D4-4106 included) and focusing mount (D4-4102 included)
D4-4101
Universal arm (Bonder Arm) with 5/8 inch knuckle pin
D4-4102
Focusing mount with 25 mm diameter through hole
D4-4103
Probe arm
D4-4104
Boom Stand with 5/8 inch knuckle hole
D4-4105
Boom Stand with 25 mm post carrier (D4-4106 included)
D4-4106
25 mm post carrier
D4-4201
Diascopic base (only use with DPT stand D4-4002)
Header
Other Components and Accessories
D4-7002
Fiber optics dual-chrome gooseneck
D4-7003
Fiber optics ring light
D4-7004
Fiber optics light source 115V, 100W
D4-8010
35 mm camera adapter and photo eyepiece system
D4-8020
video adapter with external C thread, adjustable
D4-8901
Objective protection ring with glass
D4-8902
Reticule for 10X eyepiece (D4-1001)
D4-8903
Reticule for WFH10X eyepiece (D4-1005)
Actual Size
9.7" x 7" x 16.5"
Shipping Size
10.8" x 14" x 17.5"
Net Weight
15.5 lbs (7.0kg)
Shipping Weight
17.5 lbs (7.7 kg)
