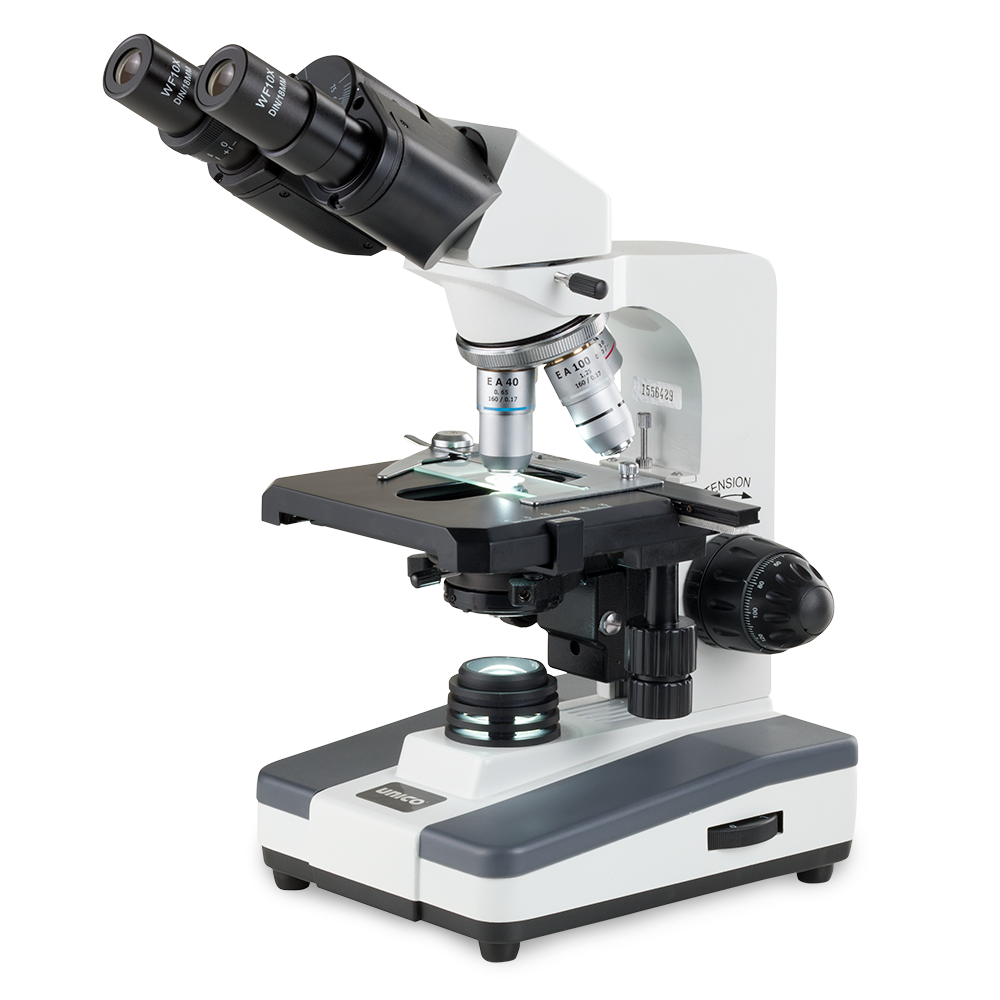

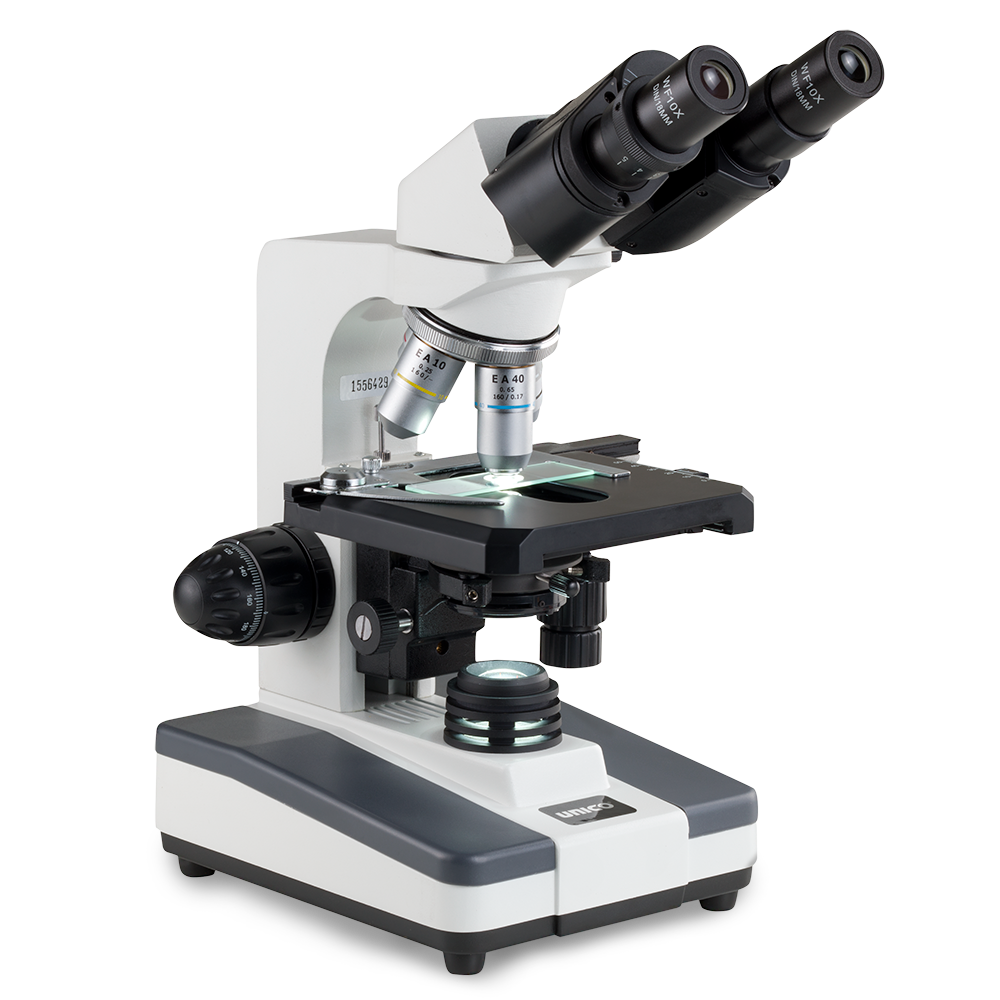

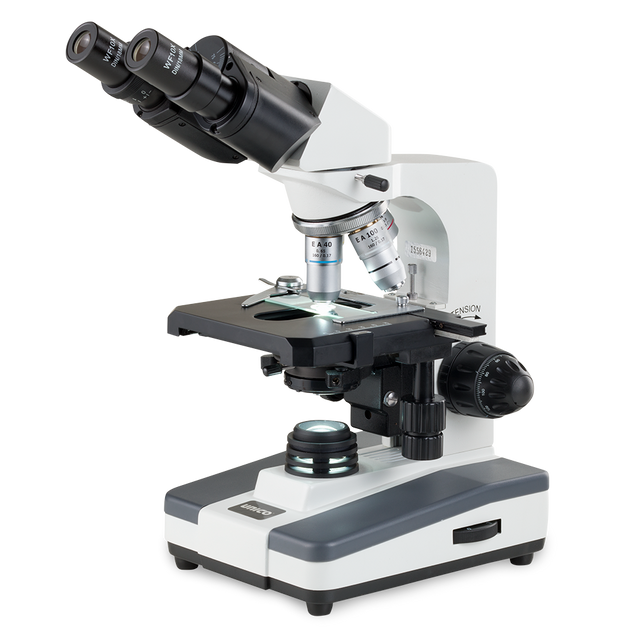

College Microscope
Regular price
$930.00
Unit price
/
Unavailable
- SEIDENTOPF BINOCULAR HEAD
- WF10X PAIRED EYEPIECES
- 4X,10X,40XR,100XR DIN ACHROMAT OBJECTIVES
- BUILT-IN MECHANICAL STAGE WITH ABBE NA1.25 CONDENSER &IRIS
- LED ILLUMINATION
The UNICO M250 Series microscopes are designed for college-level instruction and discovery. Recent updates include a reverse nosepiece, larger base, and sturdier body construction, providing even greater value.

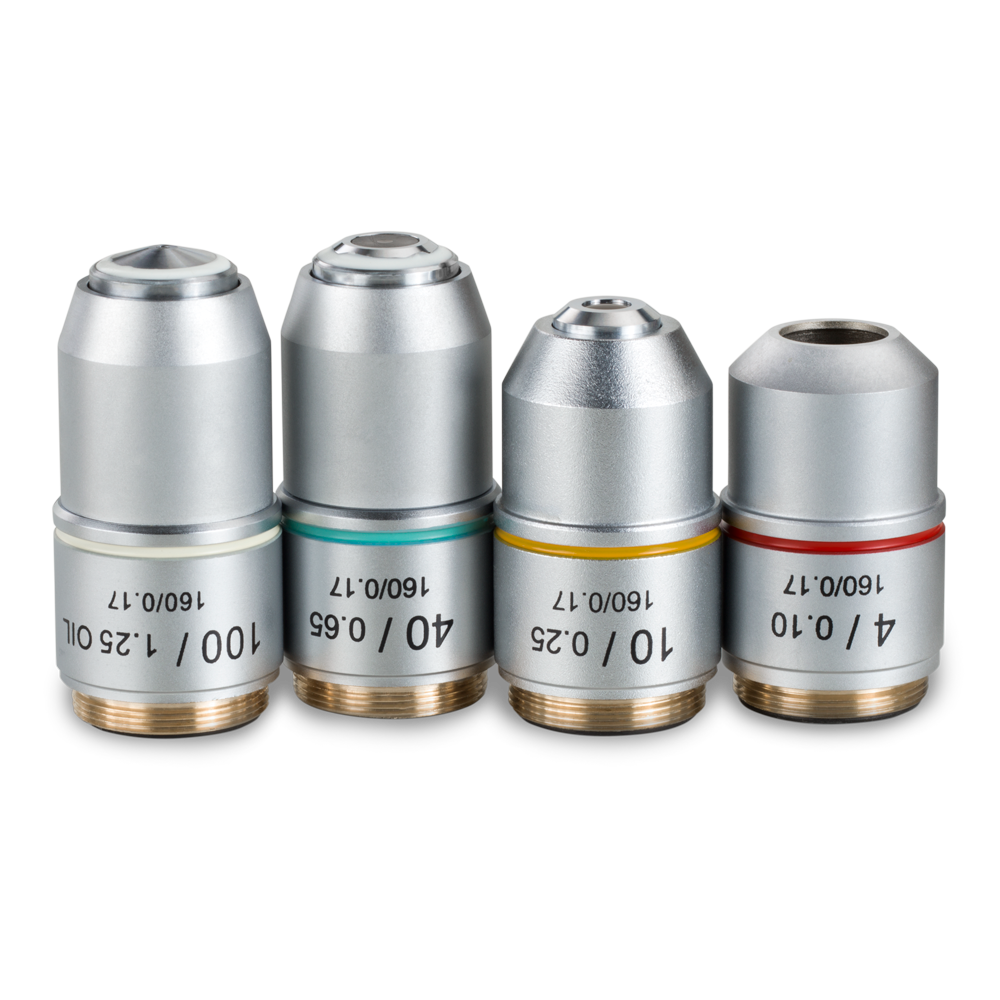

Choose from monocular, dual-view, or Seidentopf binocular heads, available in corded or cordless configurations. All heads rotate 360°. Binocular heads feature diopter control on one eyetube and adjustable interpupillary distance (55-75mm). Standard features include color-coded DIN achromatic 4x, 10x, 40x, and 100x objectives and 10x widefield eyepieces.
The objectives are mounted on a 4-position, positive click-stop reverse nosepiece. All optical surfaces are precisely polished, sealed, and coated with anti-fungal, color-correcting, and hardening agents to enhance true color viewing and extend lens life.
Head
Binocular
Eyepiece
10x WF (2)
Objectives
4, 10, 40, 100x
Condenser
NA1.25
Diaphragm
Iris
Stage
Mechanical
Illumination
LED
Bulb
3 Watt LED
Focusing
Coaxial
Bodies
M250-3001

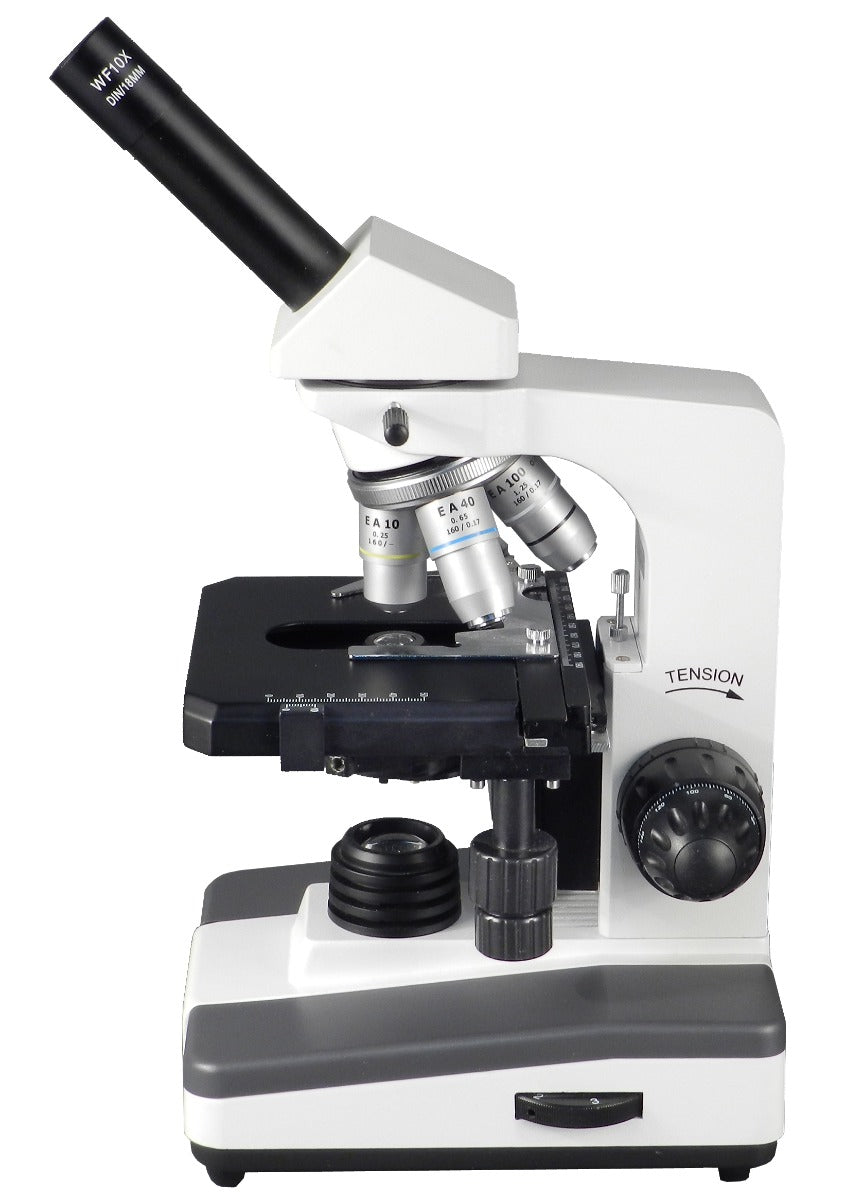

MONOCULAR HEAD WITHOUT EYEPIECE
M250-3002
DUAL VIEWING HEAD WITH DIOPTER WITHOUT EYEPIECES
M250-3004
SEIDENTOPF BINOCULAR HEAD FOR M250 AND M250LED SERIES
Header
Optics
M250-1401
10X WIDEFIELD EYEPIECE, SINGLE
M250-1411
10X WIDEFIELD EYEPIECE WITH POINTER, SINGLE
M250-1499
5X EYEPIECE, SINGLE
M250-2101
4X DIN ACHROMAT OBJECTIVE, N.A. 0.10
M250-2102
10X DIN ACHROMAT OBJECTIVE, N.A. 0.25
M250-2103
40X DIN ACHROMAT OBJECTIVE, N.A. 0.65, RETRACTABLE FRONT LENS
M250-2104
100X DIN ACHROMAT OBJECTIVE, N.A. 1.25, OIL, RETRACTABLE FRONT LENS
Header
Miscellaneous Accessories
M250-5003
MECHANICAL STAGE WITH ABBE N.A. 1.25 CONDENSER AND IRIS DIAPHRAGM
M250-7001
6V20W HALOGEN BULB, 4MM PIN FOR M250 SERIES
M250-7003
FUSE 250V 1.5A
M250-8001
DUST COVER FOR M250 SERIES
M250-8902
EYEPIECE POINTER FOR M250 SERIES
Actual Size
8.5 in x 6.5 in x 14.4 in
Shipping Size
12.5 in x 8.5 in x 16.5 in
Weight
13 lbs (6 kg)
Shipping Weight
13 lbs (6 kg)
