- SEIDENTOPF TRINOCULAR HEAD
- WF10X PAIRED EYEPIECES

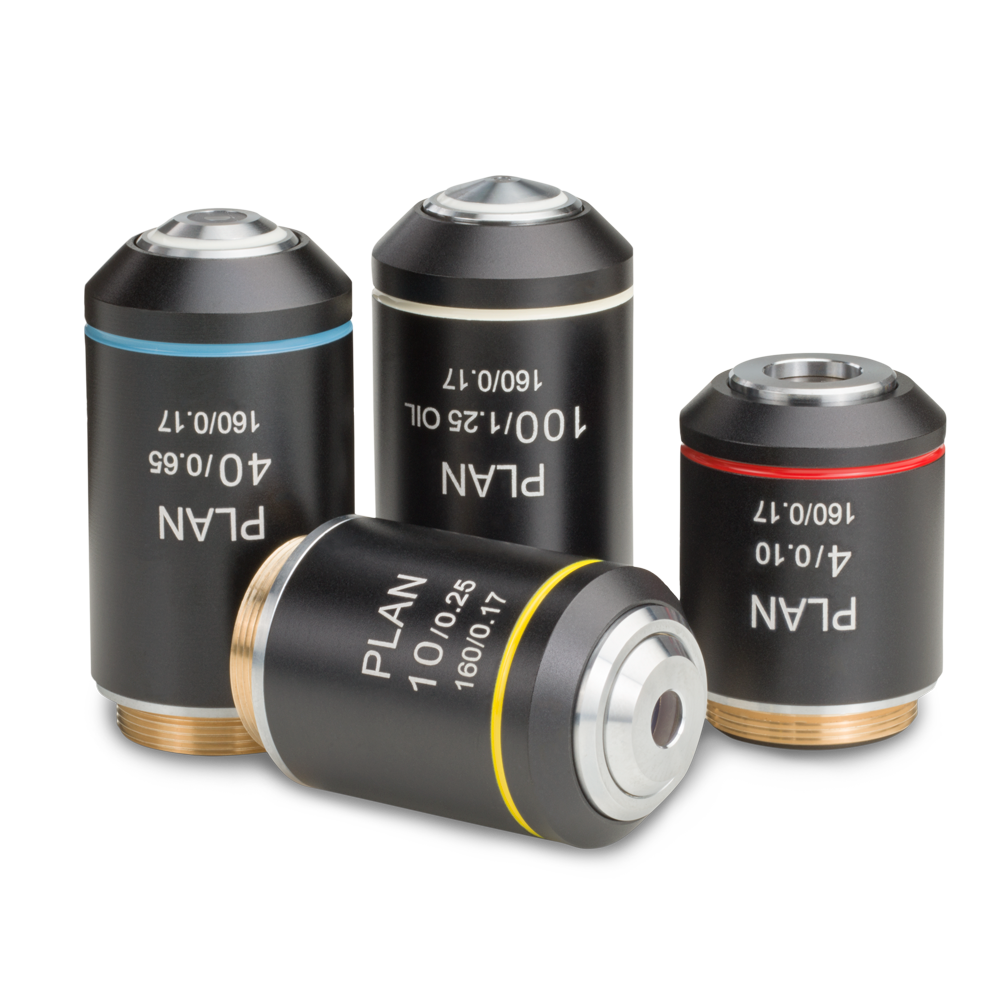

- 4X,10X,40XR,50X OIL,100X OIL DIN PLAN ACHROMAT OBJECTIVES

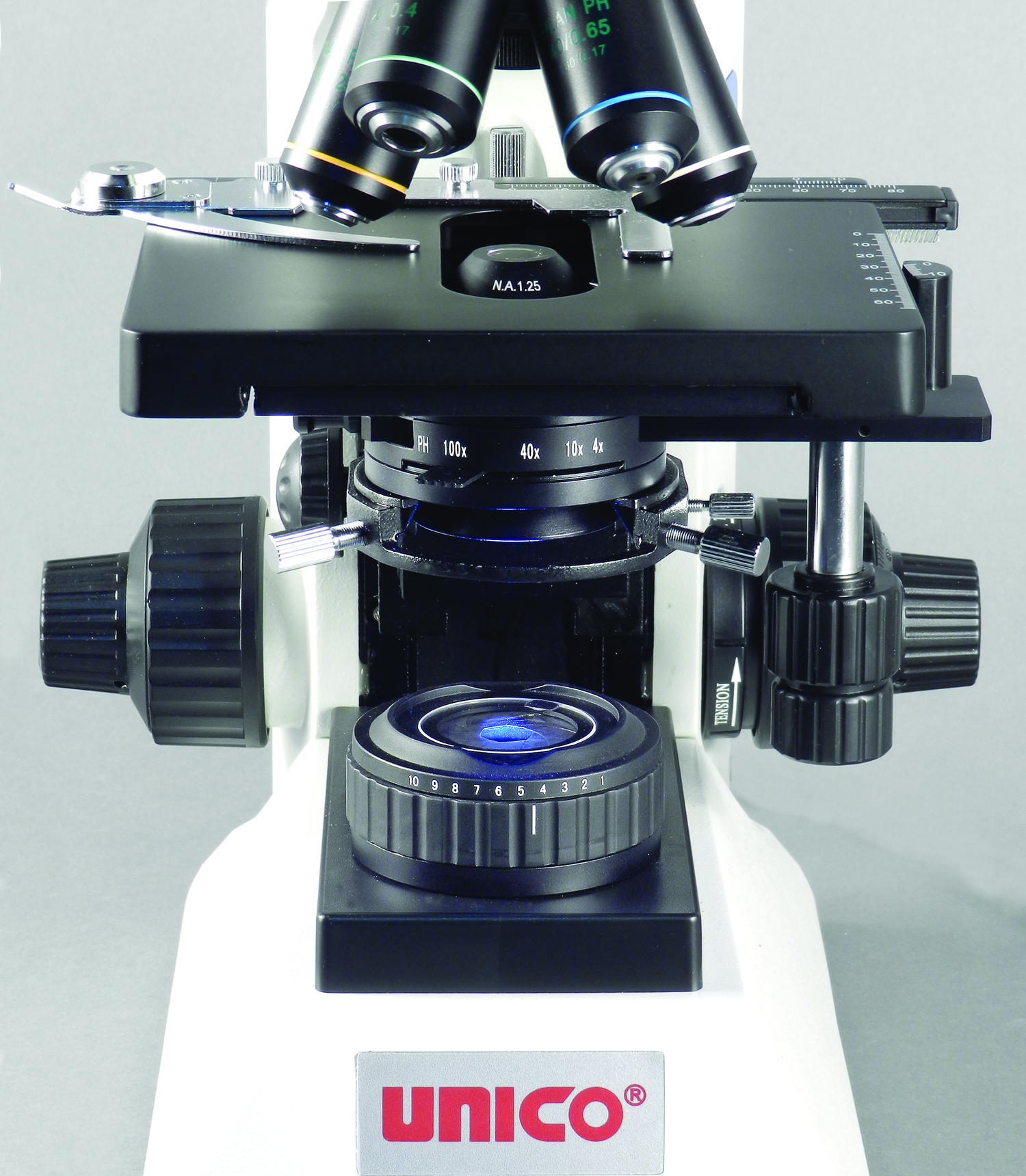

- BUILT-IN MECHANICAL STAGE WITH ABBE NA1.25 CONDENSER &IRIS
- KOHLER LED ILLUMINATION

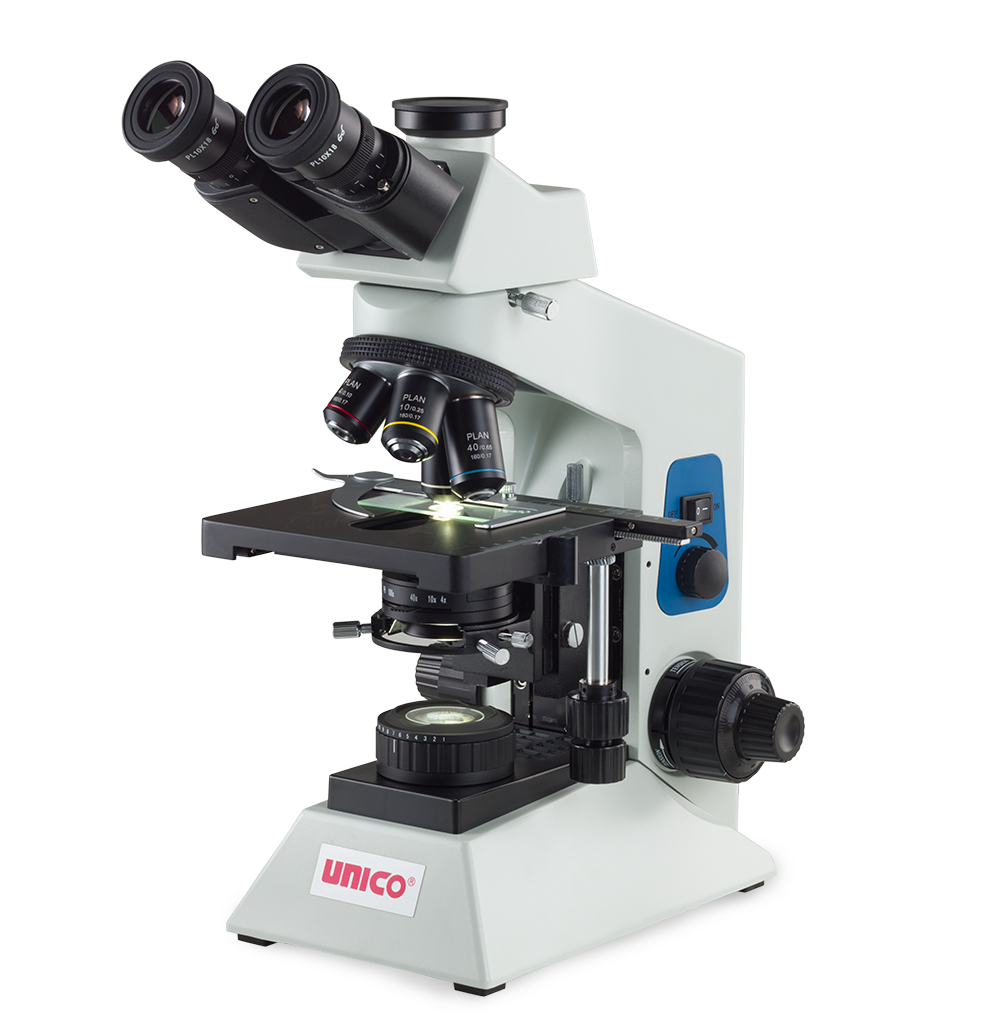

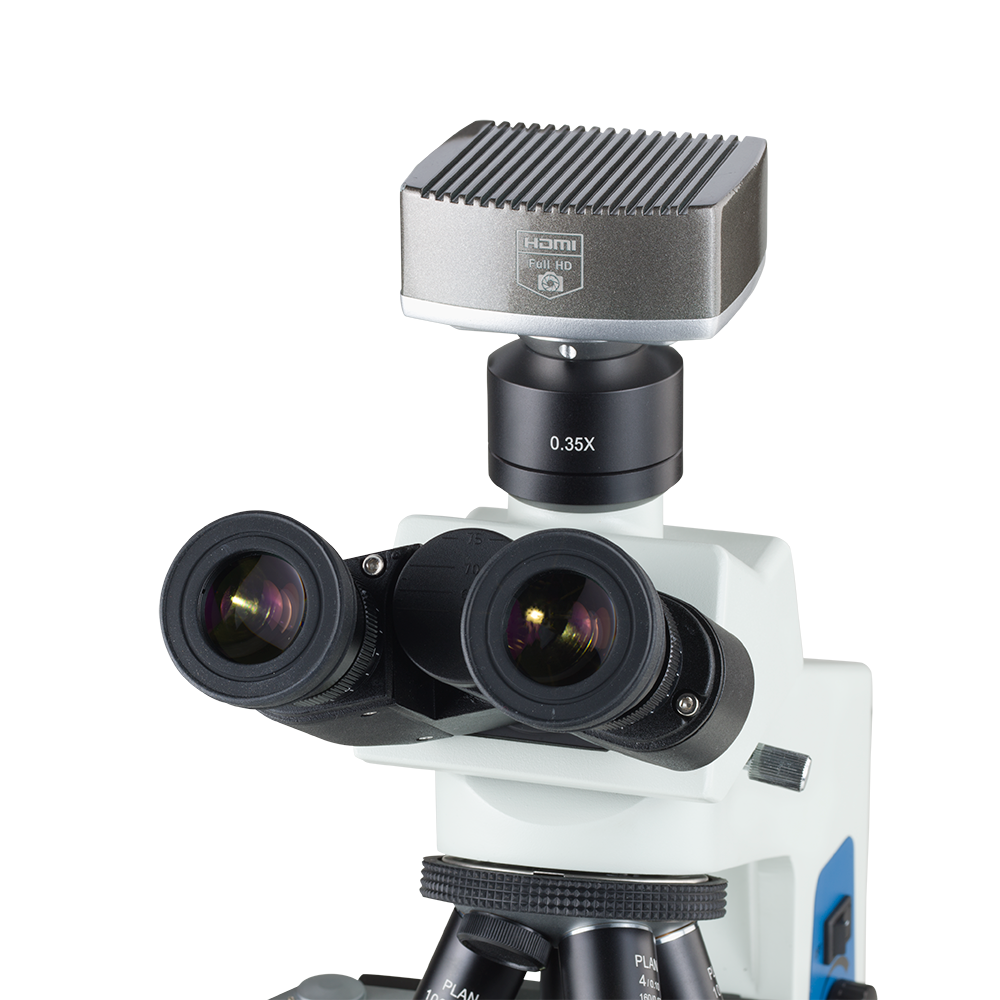

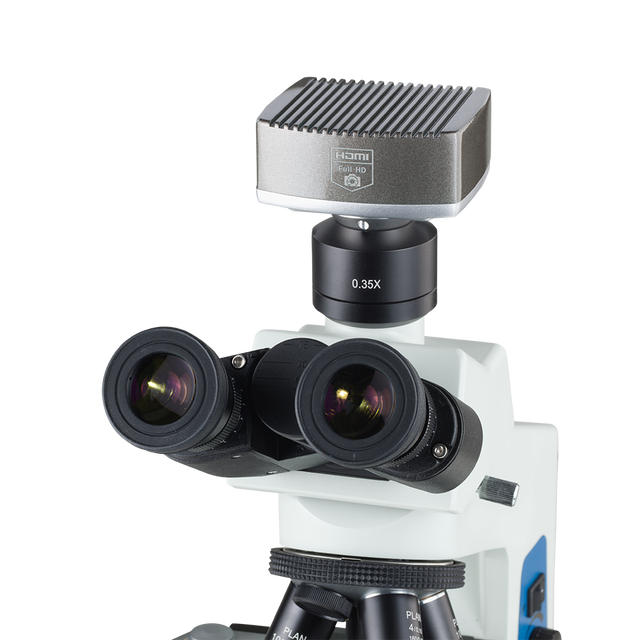

The G507T Trinocular Microscope is a high-performance instrument designed for advanced microscopic observation and documentation, offering exceptional image quality and versatile magnification. It features a Siedentopf trinocular head, allowing for comfortable, adjustable viewing and simultaneous connection to a microscope camera for capturing images and videos. 1 Paired 10X wide-field eyepieces provide a broad field of view. 1 The set of high-quality Plan objectives (4X, 10X, 40X, 50X, and 100X) delivers flat, clear, and color-corrected images across the entire field of view, ensuring accurate and detailed observation at various magnifications. The inclusion of a 50X objective adds another level of magnification versatility for more detailed examination. A precise mechanical stage allows for smooth and accurate specimen positioning. 2 The Kohler LED illumination system, with adjustable intensity, provides optimal contrast and brightness for different samples and viewing conditions. 1 Its wide-range power input (90V-240V) makes it suitable for use in various locations. 1 This trinocular microscope is well-suited for demanding educational, laboratory, research, and clinical applications requiring both visual observation and image capture.
Bodies
G500-3004
SEIDENTOPF BINOCULAR BODY WITHOUT EYEPIECES FOR G500 SERIES MICROSCOPE
G500-3005
SEIDENTOPF TRINOCULAR BODY, 30 DEGREE INCLINED WITHOUT EYEPIECES FOR G500 SERIES MICROSCOPE
Header
Optics
G500-1402
10X HIGH EYEPOINT WIDEFIELD EYEPIECE FN18
G500-1403
10X HIGH EYEPOINT WIDEFIELD EYEPIECE FN18 WITH POINTER
G500-1404
10X HIGH EYEPOINT WIDEFIELD EYEPIECE FN18 WITH RETICULE
G500-1405
15X WIDEFIELD EYEPIECE, FN13
G500-1407
20X EYEPIECE FN10
G500-1501
10X WIDEFIELD EYEPIECE, FN20
G500-2101
4X ACHROMATIC OBJECTIVE, NA0.10
G500-2102
10X ACHROMATIC OBJECTIVE, NA0.25
G500-2103
40X ACHROMATIC OBJECTIVE, NA0.65
G500-2104
100X ACHROMATIC OBJECTIVE, NA1.25
G500-2301
4X PLAN ACHROMATIC OBJECTIVE DIN, NA0.10
G500-2302
10X PLAN ACHROMATIC OBJECTIVE DIN, NA0.25
G500-2303
40X PLAN ACHROMATIC OBJECTIVE DIN, NA0.65
G500-2304
100X PLAN ACHROMATIC OBJECTIVE DIN, NA1.25
G500-2305
20X PLAN ACHROMATIC OBJECTIVE DIN, NA0.40
G500-2432
10X PLAN PHASE DIN OBJECTIVE, NA: 0.25
G500-2433
40X PLAN PHASE DIN OBJECTIVE, NA: 0.65
G500-2434
100X PLAN PHASE DIN OBJECTIVE, NA: 1.25
G500-2435
20X PLAN PHASE DIN OBJECTIVE, NA: 0.50
G500-2831
4X PLAN ACHROMATIC OBJECTIVE DIN, NA0.10 FOR G508 POLARIZING MICROSCOPE
G500-2832
10X PLAN ACHROMATIC OBJECTIVE DIN, NA0.25 FOR G508 POLARIZING MICROSCOPE
G500-2833
40X PLAN ACHROMATIC OBJECTIVE DIN, NA0.65 FOR G508 POLARIZING MICROSCOPE
G500-2835
20X PLAN ACHROMATIC OBJECTIVE DIN, NA0.40 FOR G508 POLARIZING MICROSCOPE
G500-2837
60X PLAN ACHROMATIC OBJECTIVE DIN, NA0.85 FOR G508 POLARIZING MICROSCOPE
Header
Miscellaneous Accessories
G500-5001
MECHANICAL STAGE WITHOUT ABBE CONDENSER FOR G500(STAGE SIZE 150X140MM, MOVEMENT RANGE 76X50MM)
G500-6001
ABBE CONDENSER N.A. 1.25 W/ IRIS DIAPHRAGM FOR G500 SERIES
G500-6010
BLUE FILTER, DIAMETER 32MM (REF: XS-FCB)
G500-6011
GREEN FILTER, DIAMETER 32MM
G500-6012
YELLOW FILTER, DIAMETER 32MM (REF: XS-FCY)
G500-6013
NUETRAL FILTER, DIAMETER 32MM (REF: XS-FCF)
G500-8001
DUST COVER FOR G500 MICROSCOPE
G500-8031-1
PHASE ANNULUS SLIDER FOR USE WITH 10X AND 40X PLAN PHASE SET
G500-8032-1
PHASE ANNULUS SLIDER FOR 20X AND 100X PLAN PHASE
G500-8033
PHASE CONTRAST CENTERING TELESCOPE
G500-8041
DARKFIELD SLIDER FOR USE WITH 4X TO 40X POWER OBJECTIVES
G500-9005
FUSE 250V/3.15+B352A FOR G500 MICROSOCOPE
Actual Size
16”H x 6“Wx 12”D
Shipping Dimension
21”L x 19”W x 10“H
Net Weight
14.5 lbs
Shipping Weight
19 lbs
