- SEIDENTOPF TRINOCULAR HEAD
- WF10X PAIRED EYEPIECES
- 4X,10X,40XR,100XR DIN PLAN ACHROMAT OBJECTIVES
- BUILT-IN MECHANICAL STAGE WITH ABBE NA1.25 CONDENSER &IRIS
- LED ILLUMINATION

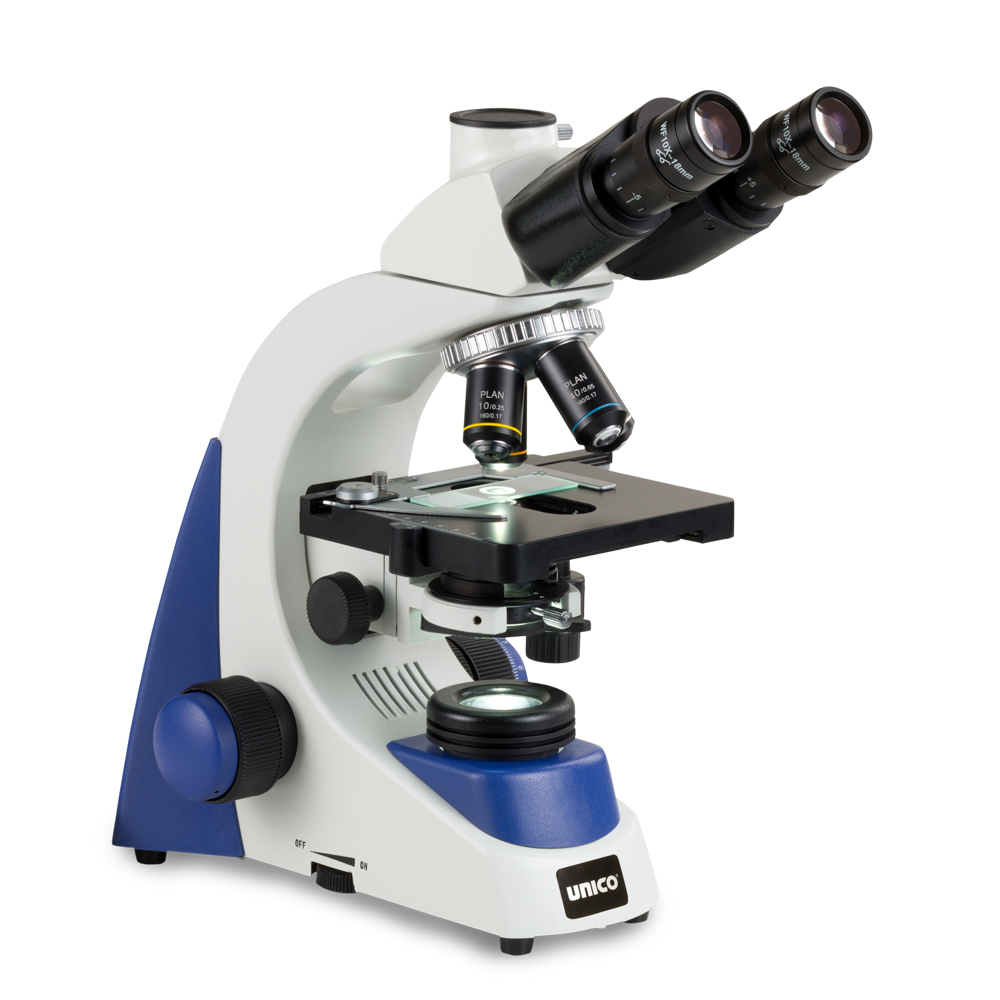

The G383PL-LED Trinocular Microscope combines advanced optical technology and user-friendly features, making it ideal for educational, laboratory, and research applications. Equipped with a Seidentopf trinocular head, this microscope offers simultaneous viewing for two users, with the additional option to capture high-quality images or video through the trinocular port. Perfect for collaborative learning and documentation, the G383PL-LED enhances both individual and group microscopy experiences.
This model includes 10x widefield eyepieces, ensuring clear, comfortable viewing with sharp, crisp images. The Plan Achromat objective set (4x, 10x, 40x, and 100x) delivers high-resolution, flat-field images, making it ideal for high-precision work where clarity and accuracy are essential. The Plan Achromat objectives minimize chromatic aberration and deliver excellent contrast across all magnifications, providing superior image quality for a variety of specimens.
The G383PL-LED also features a mechanical stage for precise specimen handling and manipulation. The Abbe condenser with an iris diaphragm allows for optimal light control, ensuring proper contrast and illumination for different types of specimens. This setup is perfect for a wide range of observation types, from standard brightfield to more detailed imaging.
For exceptional illumination, the G383PL-LED includes built-in LED lighting with intensity adjustment, ensuring uniform lighting across the specimen while minimizing heat generation. This energy-efficient LED system offers bright and consistent illumination, perfect for prolonged usage with minimal eye strain.
With its advanced optical features, ergonomic design, and versatile illumination options, the G383PL-LED Trinocular Microscope is a high-performance instrument for professionals and students alike, providing exceptional imaging for routine inspections, research, and educational use.
Head
Trinocular
Eyepiece
10X WF Hi-EP
Objectives
Plan 4X/10X/40X/100X
Condenser
NA1.25
Diaphragm
Iris
Stage
Mechanical
Illumination
LED
Bulb
3 Watt LED
Focusing
Coaxial
Bodies
G380-3001
MONOCULAR HEAD, 45° INCLINED FOR G380
G380-3002
DUAL VIEWING HEAD WITHOUT EYEPIECE FOR G380 SERIES
G380-3004
SEIDENTOPF BINOCULAR HEAD FOR G380 SERIES
G380-3005
SEIDENTOPF TRINOCULAR HEAD FOR G380 SERIES
Header
Optics
G380-1402
HIGH EYEPOINT 10X WIDEFIELD EYEPIECE, F.N. 18, EACH
G380-2101
4X DIN ACHROMAT OBJECTIVE, N.A. 0.10 FOR G380 SERIES
G380-2102
10X DIN ACHROMAT OBJECTIVE, N.A. 0.25 FOR G380 SERIES
G380-2103
40X DIN ACHROMAT OBJECTIVE, N.A. 0.65, RETRACTABLE FRONT LENS FOR G380 SERIES
G380-2104
100X DIN ACHROMAT OBJECTIVE, N.A. 1.25, OIL, RETRACTABLE FRONT LENS FOR G380 SERIES
G380-2301
4X DIN PLAN OBJECTIVE, N.A. 0.10
G380-2302
10X DIN PLAN OBJECTIVE, N.A. 0.25
G380-2305
25X DIN PLAN OBJECTIVE N.A. 0.40
G380-2303
40X DIN PLAN OBJECTIVE, N.A. 0.65, RETRACTABLE FRONT LENS
G380-2304
100X DIN PLAN OBJECTIVE N.A. 1.25, RETRACTABLE FRONT LENS
G380-2601
4X INFINITY ACHROMAT OBJECTIVE, NA 0.10
G380-2602
10X INFINITY ACHROMAT OBJECTIVE, NA 0.25
G380-2603
40X INFINITY ACHROMAT OBJECTIVE, NA 0.65
G380-2604
100X OIL IMMERSION INFINITY ACHROMAT OBJECTIVE, NA 1.25
G380-2631
4X INFINITY PLAN ACHROMAT OBJECTIVE, NA 0.10
G380-2632
10X INFINITY PLAN ACHROMAT OBJECTIVE, NA 0.25
G380-2633
40X INFINITY PLAN ACHROMAT OBJECTIVE, NA 0.65
G380-2634
100X OIL IMMERSION INFINITY PLAN ACHROMAT OBJECTIVE, NA 1.25
Header
Miscellaneous Accessories
G380-5111
GRADUATED MECHANICAL STAGE (COAXIAL LOW POSITION CONTROLS) FOR G380 SERIES
G380-6001
ABBE CONDENSER, N.A. 1.25, W/ IRIS DIAPHRAGM, SWING-OUT FILTER HOLDER FOR G300 SERIES
G380-7001
LED ILLUMINATOR PACK, SNAP-IN, INCLUDED 3 AA BATTERIES, FOR G380 SERIES ONLY
G380-7002
MIRROR ASSEMBLY, SNAP-IN FOR G380 SERIES ONLY
G380-7010
FIELD DIAGRAM KOEHLER SET FOR G380, G390 SERIES MICROSCOPES
G380-8010
PHOTO LENS AND PHOTO ADAPTER WITH UNIVERSAL THREAD FOR G380 SERIES (REQ. CAMERA AND T-MOUNT)
G380-8011
VERTICAL VIEWING ADAPTER (TO BE INSTALLED ON TRINOCULAR HEAD. REQUIRES EYEPIECE)
G380-8031
PHASE KIT: INCLUDES 40XR SEMI-PLAN PHASE OBJECTIVE AND SLIDE-IN ANNULUS RING FOR G380 SERIES
G380-8034
PHASE KIT: INCLUDES 10X SEMI-PLAN PHASE OBJECTIVE AND SLIDE-IN ANNULUS RING FOR G380 SERIES
G380-8032
SLIDE-IN 40X PHASE ANNULUS RING FOR G380 SERIES

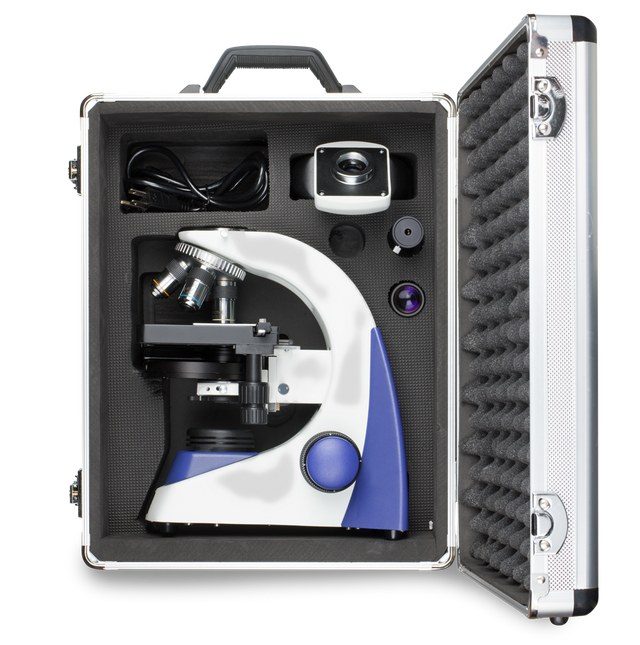

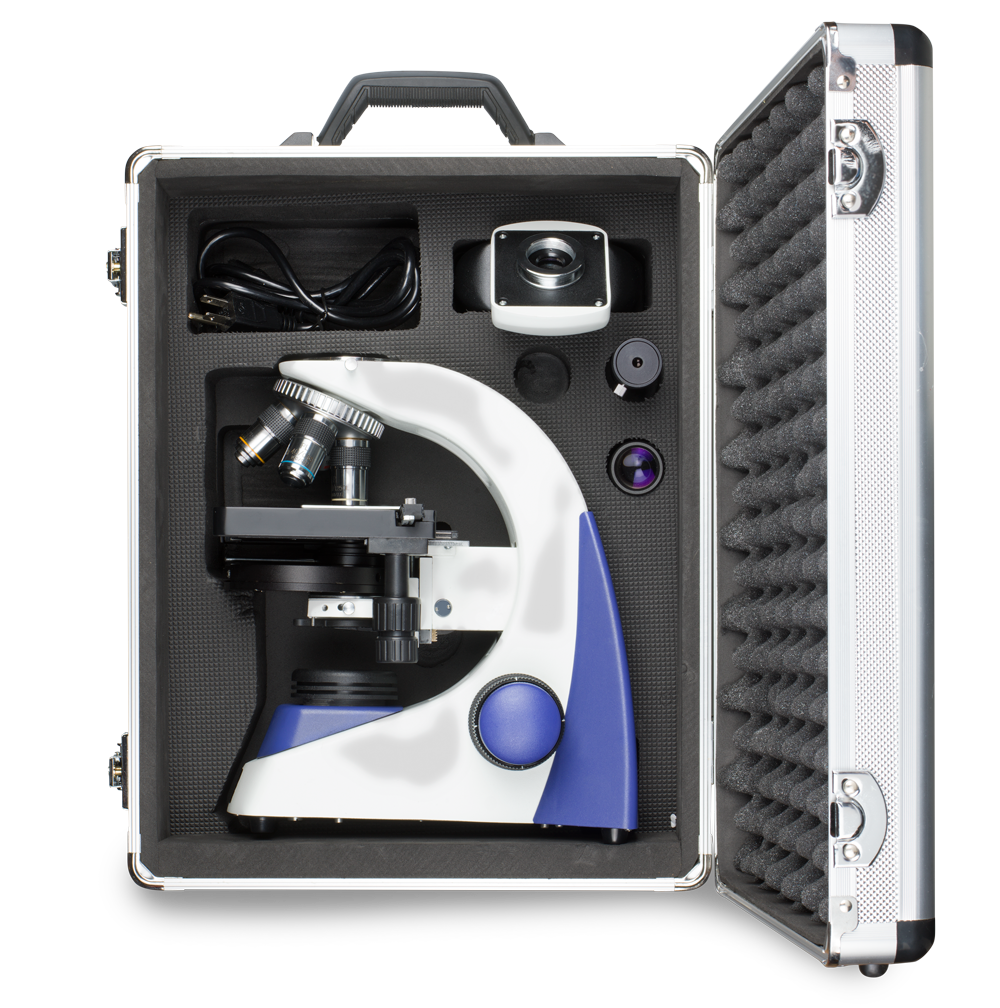

G380-8907
HARD CARRYING CASE, PADDED WITH LOCK & KEY (2)
G380-8001
DUST COVER FOR G380 SERIES
G380-8906
DARKFIELD STOP FOR G380 SERIES
G380-9008
BACKPACK™ FOR G380, G390 AND G490 SERIES MICROSCOPES, ACRYLIC ACCESORY ATTACHMENT
Shipping Size
17 in x 10.5 in x 17.5 in
Weight
17 lbs (7.7 kg)
Shipping Weight
18 lbs (8.2 kg)
