- SEIDENTOPF TRINOCULAR HEAD
- WF10X PAIRED EYEPIECES
- 4X, 10X, 100X BRIGHTFIELD ACHROMAT AND 40X SP-PH OBJECTIVES
- BUILT-IN MECHANICAL STAGE WITH ABBE NA1.25 CONDENSER &IRIS
- LED ILLUMINATION

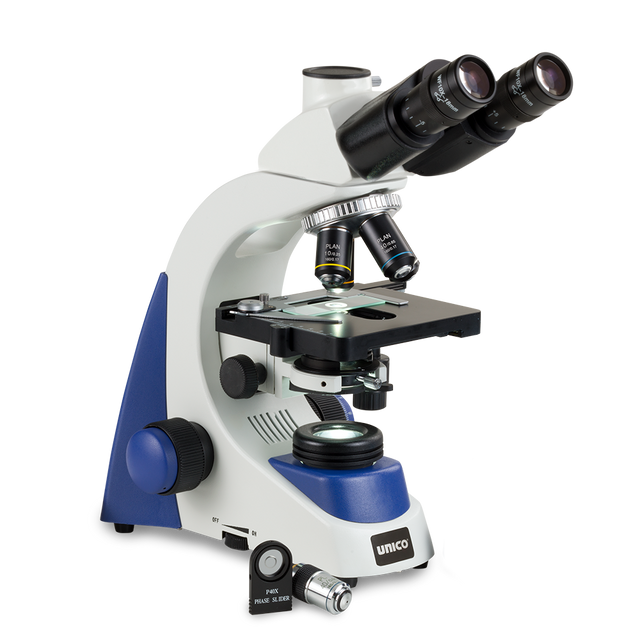

The G383PH-40 Binocular Microscope is an advanced optical instrument designed for high-resolution imaging and versatile use in educational, laboratory, and research applications. Featuring a Seidentopf binocular head, this microscope allows for comfortable, strain-free viewing with 10x widefield eyepieces, making it ideal for users who wear glasses.
This model is equipped with a comprehensive objective set, including 4x, 10x, and 100x Brightfield objectives, as well as a 40XR Semi-Plan Phase objective for phase contrast microscopy. The 40XR Semi-Plan Phase objective provides enhanced image clarity and contrast, making it perfect for viewing live specimens and transparent samples with excellent detail. Additionally, the Phase annulus ring further optimizes the microscope for phase contrast imaging, providing crisp and highly contrasted images.
For reliable and adjustable illumination, the G383PH-40 is equipped with built-in LED lighting. The intensity adjustment feature allows you to customize the brightness to suit your specific specimen, ensuring optimal contrast and clarity while minimizing heat buildup.
The G383PH-40 Binocular Microscope is built for ease of use and precision, offering a smooth and accurate mechanical stage for specimen manipulation. Whether for routine educational use or advanced research, this microscope provides a reliable solution for high-quality imaging and detailed observations.
Head
Trinocular
Eyepiece
10X WF Hi-EP
Objectives
Achromat 4,10,100X and 40X-SP-PH with 40X Phase Slider
Condenser
NA1.25
Diaphragm
Iris
Stage
Mechanical
Illumination
LED
Bulb
3 Watt LED
Focusing
Coaxial
Bodies
G380-3001
MONOCULAR HEAD, 45° INCLINED FOR G380
G380-3002
DUAL VIEWING HEAD WITHOUT EYEPIECE FOR G380 SERIES
G380-3004
SEIDENTOPF BINOCULAR HEAD FOR G380 SERIES
G380-3005
SEIDENTOPF TRINOCULAR HEAD FOR G380 SERIES
Header
Optics
G380-1402
HIGH EYEPOINT 10X WIDEFIELD EYEPIECE, F.N. 18, EACH
G380-2101
4X DIN ACHROMAT OBJECTIVE, N.A. 0.10 FOR G380 SERIES
G380-2102
10X DIN ACHROMAT OBJECTIVE, N.A. 0.25 FOR G380 SERIES
G380-2103
40X DIN ACHROMAT OBJECTIVE, N.A. 0.65, RETRACTABLE FRONT LENS FOR G380 SERIES
G380-2104
100X DIN ACHROMAT OBJECTIVE, N.A. 1.25, OIL, RETRACTABLE FRONT LENS FOR G380 SERIES
G380-2301
4X DIN PLAN OBJECTIVE, N.A. 0.10
G380-2302
10X DIN PLAN OBJECTIVE, N.A. 0.25
G380-2305
25X DIN PLAN OBJECTIVE N.A. 0.40
G380-2303
40X DIN PLAN OBJECTIVE, N.A. 0.65, RETRACTABLE FRONT LENS
G380-2304
100X DIN PLAN OBJECTIVE N.A. 1.25, RETRACTABLE FRONT LENS
G380-2601
4X INFINITY ACHROMAT OBJECTIVE, NA 0.10
G380-2602
10X INFINITY ACHROMAT OBJECTIVE, NA 0.25
G380-2603
40X INFINITY ACHROMAT OBJECTIVE, NA 0.65
G380-2604
100X OIL IMMERSION INFINITY ACHROMAT OBJECTIVE, NA 1.25
G380-2631
4X INFINITY PLAN ACHROMAT OBJECTIVE, NA 0.10
G380-2632
10X INFINITY PLAN ACHROMAT OBJECTIVE, NA 0.25
G380-2633
40X INFINITY PLAN ACHROMAT OBJECTIVE, NA 0.65
G380-2634
100X OIL IMMERSION INFINITY PLAN ACHROMAT OBJECTIVE, NA 1.25
Header
Miscellaneous Accessories
G380-5111
GRADUATED MECHANICAL STAGE (COAXIAL LOW POSITION CONTROLS) FOR G380 SERIES
G380-6001
ABBE CONDENSER, N.A. 1.25, W/ IRIS DIAPHRAGM, SWING-OUT FILTER HOLDER FOR G300 SERIES
G380-7001
LED ILLUMINATOR PACK, SNAP-IN, INCLUDED 3 AA BATTERIES, FOR G380 SERIES ONLY
G380-7002
MIRROR ASSEMBLY, SNAP-IN FOR G380 SERIES ONLY
G380-7010
FIELD DIAGRAM KOEHLER SET FOR G380, G390 SERIES MICROSCOPES
G380-8010
PHOTO LENS AND PHOTO ADAPTER WITH UNIVERSAL THREAD FOR G380 SERIES (REQ. CAMERA AND T-MOUNT)
G380-8011
VERTICAL VIEWING ADAPTER (TO BE INSTALLED ON TRINOCULAR HEAD. REQUIRES EYEPIECE)
G380-8031
PHASE KIT: INCLUDES 40XR SEMI-PLAN PHASE OBJECTIVE AND SLIDE-IN ANNULUS RING FOR G380 SERIES
G380-8034
PHASE KIT: INCLUDES 10X SEMI-PLAN PHASE OBJECTIVE AND SLIDE-IN ANNULUS RING FOR G380 SERIES
G380-8032
SLIDE-IN 40X PHASE ANNULUS RING FOR G380 SERIES
G380-8907
HARD CARRYING CASE, PADDED WITH LOCK & KEY (2)
G380-8001
DUST COVER FOR G380 SERIES
G380-8906
DARKFIELD STOP FOR G380 SERIES
G380-9008
BACKPACK™ FOR G380, G390 AND G490 SERIES MICROSCOPES, ACRYLIC ACCESORY ATTACHMENT
Shipping Size
17 in x 10.5 in x 17.5 in
Weight
17 lbs (7.7 kg)
Shipping Weight
18 lbs (8.2 kg)
