- DUAL MONO HEAD
- WF10X PAIRED EYEPIECES
- 4X,10X,40XR,100XR DIN ACHROMAT OBJECTIVES
- BUILT-IN MECHANICAL STAGE WITH ABBE NA1.25 CONDENSER &IRIS
- LED ILLUMINATION

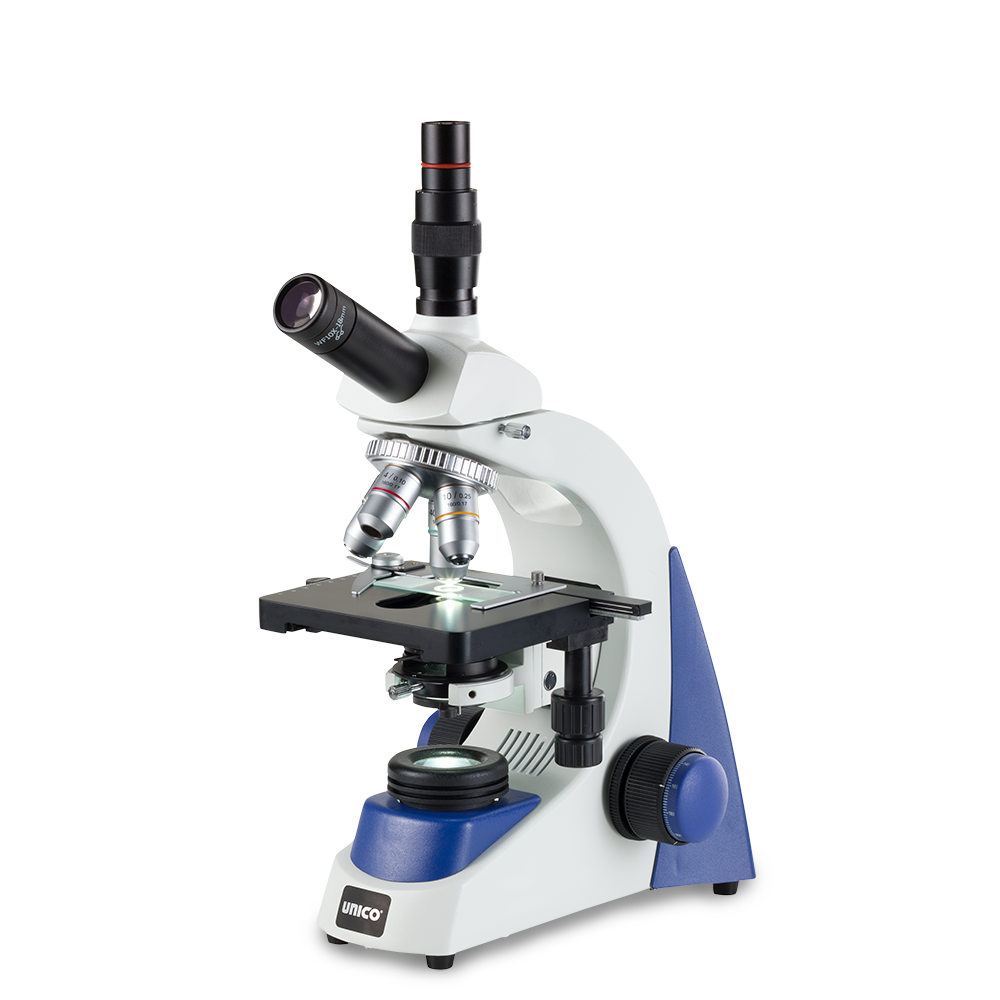

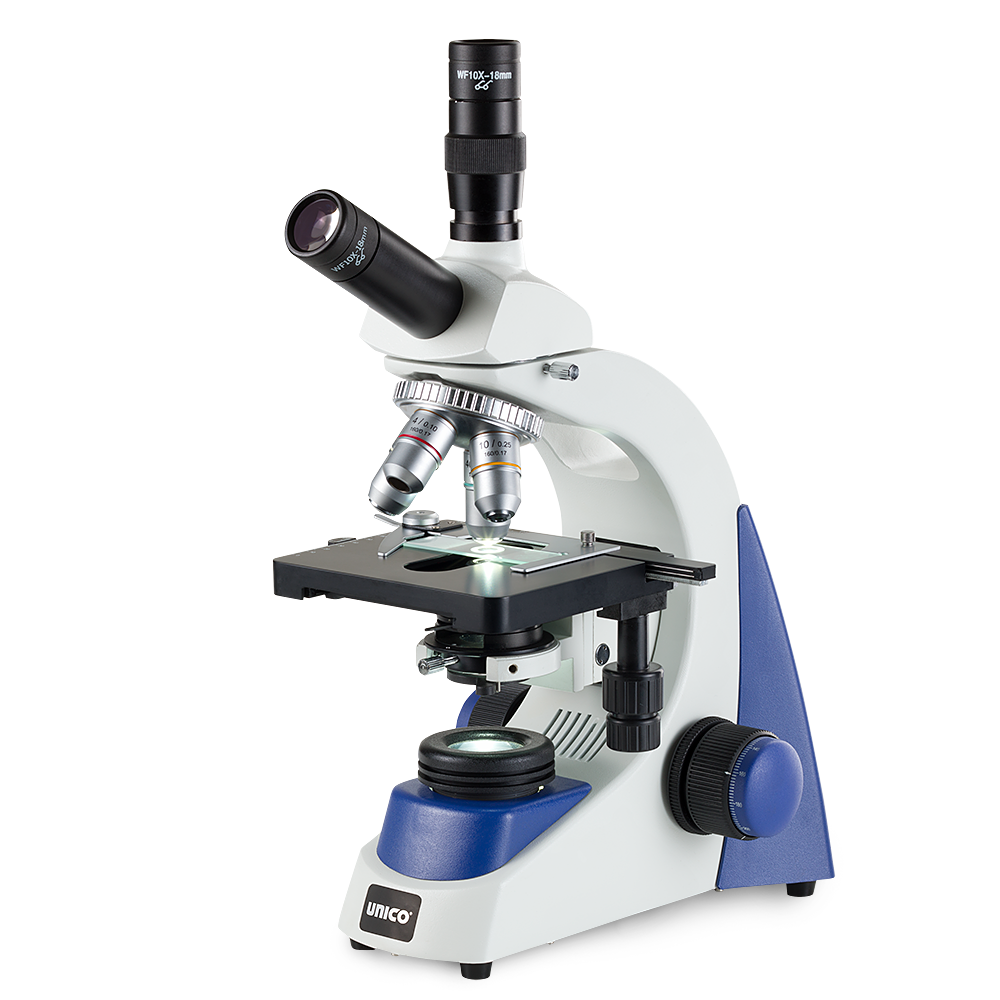

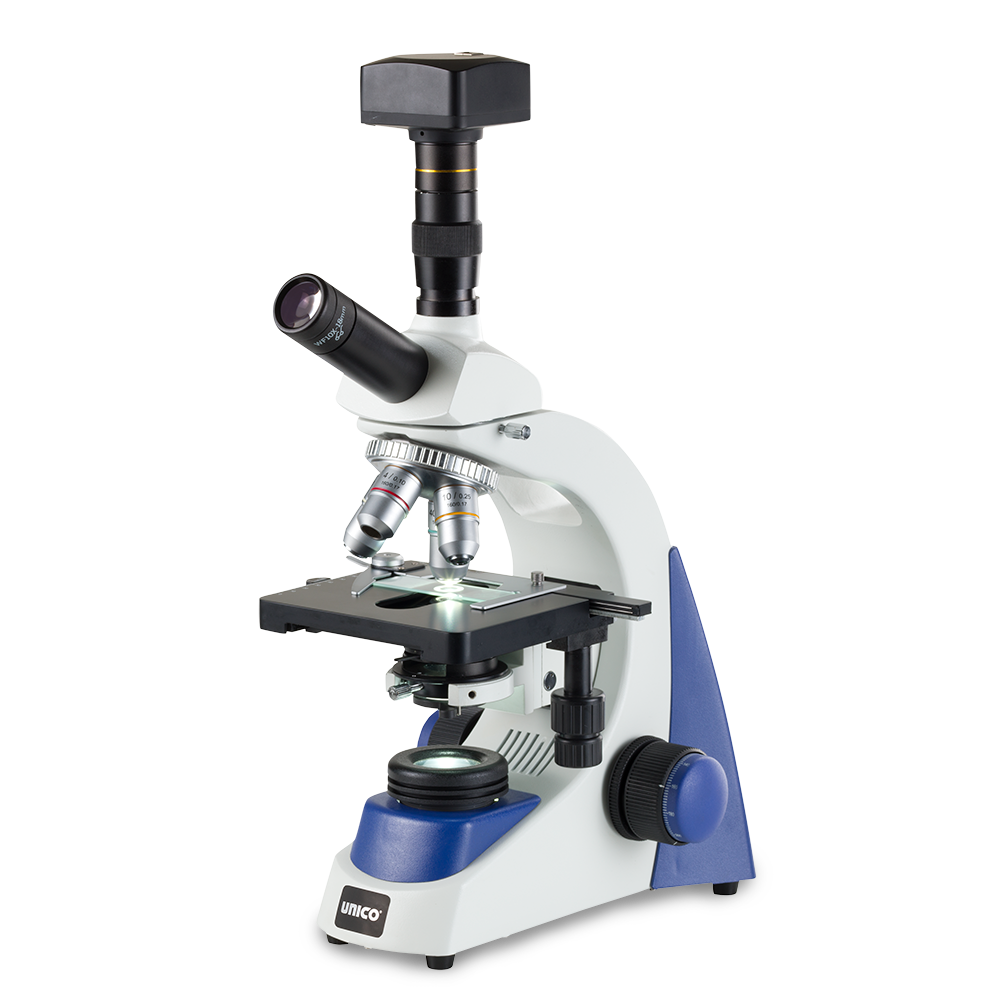

The G382-LED Dual View Microscope combines advanced optical technology with versatile design, making it ideal for both educational and professional applications. Featuring a dual mono-view head, this microscope allows for simultaneous viewing by two users, offering a collaborative and efficient experience. Both eyepieces are equipped with 10x widefield eyepieces, ensuring clear and comfortable viewing, even for individuals who wear glasses.
This model includes a high-quality Achromat Objective Set (4x, 10x, 40x, and 100x), delivering bright, sharp images with minimal chromatic aberration. The Achromat objectives provide high contrast and clarity for both low and high magnification tasks, making the microscope suitable for a range of scientific and educational purposes.
The G382-LED comes with a mechanical stage for precise and smooth specimen movement. The low-position coaxial controls provide easy, accurate adjustment, allowing for effortless slide handling and positioning during observation.
For optimal lighting, the microscope is equipped with built-in LED illumination, complete with intensity adjustment. This adjustable LED system ensures that you can customize the light levels for optimal clarity and contrast, making it perfect for a variety of specimens and applications.
With its dual-view head, high-quality optics, and adjustable lighting, the G382-LED Dual View Microscope provides a unique and practical solution for collaborative work in educational and research settings.
Head
Dual View
Eyepiece
10X WF Hi-EP
Objectives
Achromat 4,10,40,100X
Condenser
NA1.25
Diaphragm
Iris
Stage
Mechanical
Illumination
LED
Bulb
3 Watt LED
Focusing
Coaxial
Bodies
G380-3001
MONOCULAR HEAD, 45° INCLINED FOR G380
G380-3002
DUAL VIEWING HEAD WITHOUT EYEPIECE FOR G380 SERIES
G380-3004
SEIDENTOPF BINOCULAR HEAD FOR G380 SERIES
G380-3005
SEIDENTOPF TRINOCULAR HEAD FOR G380 SERIES
Header
Optics
G380-1402
HIGH EYEPOINT 10X WIDEFIELD EYEPIECE, F.N. 18, EACH
G380-2101
4X DIN ACHROMAT OBJECTIVE, N.A. 0.10 FOR G380 SERIES
G380-2102
10X DIN ACHROMAT OBJECTIVE, N.A. 0.25 FOR G380 SERIES
G380-2103
40X DIN ACHROMAT OBJECTIVE, N.A. 0.65, RETRACTABLE FRONT LENS FOR G380 SERIES
G380-2104
100X DIN ACHROMAT OBJECTIVE, N.A. 1.25, OIL, RETRACTABLE FRONT LENS FOR G380 SERIES
G380-2301
4X DIN PLAN OBJECTIVE, N.A. 0.10
G380-2302
10X DIN PLAN OBJECTIVE, N.A. 0.25
G380-2305
25X DIN PLAN OBJECTIVE N.A. 0.40
G380-2303
40X DIN PLAN OBJECTIVE, N.A. 0.65, RETRACTABLE FRONT LENS
G380-2304
100X DIN PLAN OBJECTIVE N.A. 1.25, RETRACTABLE FRONT LENS
G380-2601
4X INFINITY ACHROMAT OBJECTIVE, NA 0.10
G380-2602
10X INFINITY ACHROMAT OBJECTIVE, NA 0.25
G380-2603
40X INFINITY ACHROMAT OBJECTIVE, NA 0.65
G380-2604
100X OIL IMMERSION INFINITY ACHROMAT OBJECTIVE, NA 1.25
G380-2631
4X INFINITY PLAN ACHROMAT OBJECTIVE, NA 0.10
G380-2632
10X INFINITY PLAN ACHROMAT OBJECTIVE, NA 0.25
G380-2633
40X INFINITY PLAN ACHROMAT OBJECTIVE, NA 0.65
G380-2634
100X OIL IMMERSION INFINITY PLAN ACHROMAT OBJECTIVE, NA 1.25
Header
Miscellaneous Accessories
G380-5111
GRADUATED MECHANICAL STAGE (COAXIAL LOW POSITION CONTROLS) FOR G380 SERIES
G380-6001
ABBE CONDENSER, N.A. 1.25, W/ IRIS DIAPHRAGM, SWING-OUT FILTER HOLDER FOR G300 SERIES
G380-7001
LED ILLUMINATOR PACK, SNAP-IN, INCLUDED 3 AA BATTERIES, FOR G380 SERIES ONLY
G380-7002
MIRROR ASSEMBLY, SNAP-IN FOR G380 SERIES ONLY
G380-7010
FIELD DIAGRAM KOEHLER SET FOR G380, G390 SERIES MICROSCOPES
G380-8010
PHOTO LENS AND PHOTO ADAPTER WITH UNIVERSAL THREAD FOR G380 SERIES (REQ. CAMERA AND T-MOUNT)
G380-8011
VERTICAL VIEWING ADAPTER (TO BE INSTALLED ON TRINOCULAR HEAD. REQUIRES EYEPIECE)
G380-8031
PHASE KIT: INCLUDES 40XR SEMI-PLAN PHASE OBJECTIVE AND SLIDE-IN ANNULUS RING FOR G380 SERIES
G380-8034
PHASE KIT: INCLUDES 10X SEMI-PLAN PHASE OBJECTIVE AND SLIDE-IN ANNULUS RING FOR G380 SERIES
G380-8032
SLIDE-IN 40X PHASE ANNULUS RING FOR G380 SERIES
G380-8907
HARD CARRYING CASE, PADDED WITH LOCK & KEY (2)
G380-8001
DUST COVER FOR G380 SERIES
G380-8906
DARKFIELD STOP FOR G380 SERIES
G380-9008
BACKPACK™ FOR G380, G390 AND G490 SERIES MICROSCOPES, ACRYLIC ACCESORY ATTACHMENT
Shipping Size
17 in x 10.5 in x 17.5 in
Weight
17 lbs (7.7 kg)
Shipping Weight
18 lbs (8.2 kg)
