Infinity Microscope
Regular price
$2,498.00
Unit price
/
Unavailable
- DUAL SEIDENTOPF BINOCULAR HEAD
- WF10X PAIRED EYEPIECES
- 4X,10X,40XR,100XR DIN INFINITY ACHROMAT OBJECTIVES
- BUILT-IN MECHANICAL STAGE WITH ABBE NA1.25 CONDENSER &IRIS
- LED ILLUMINATION

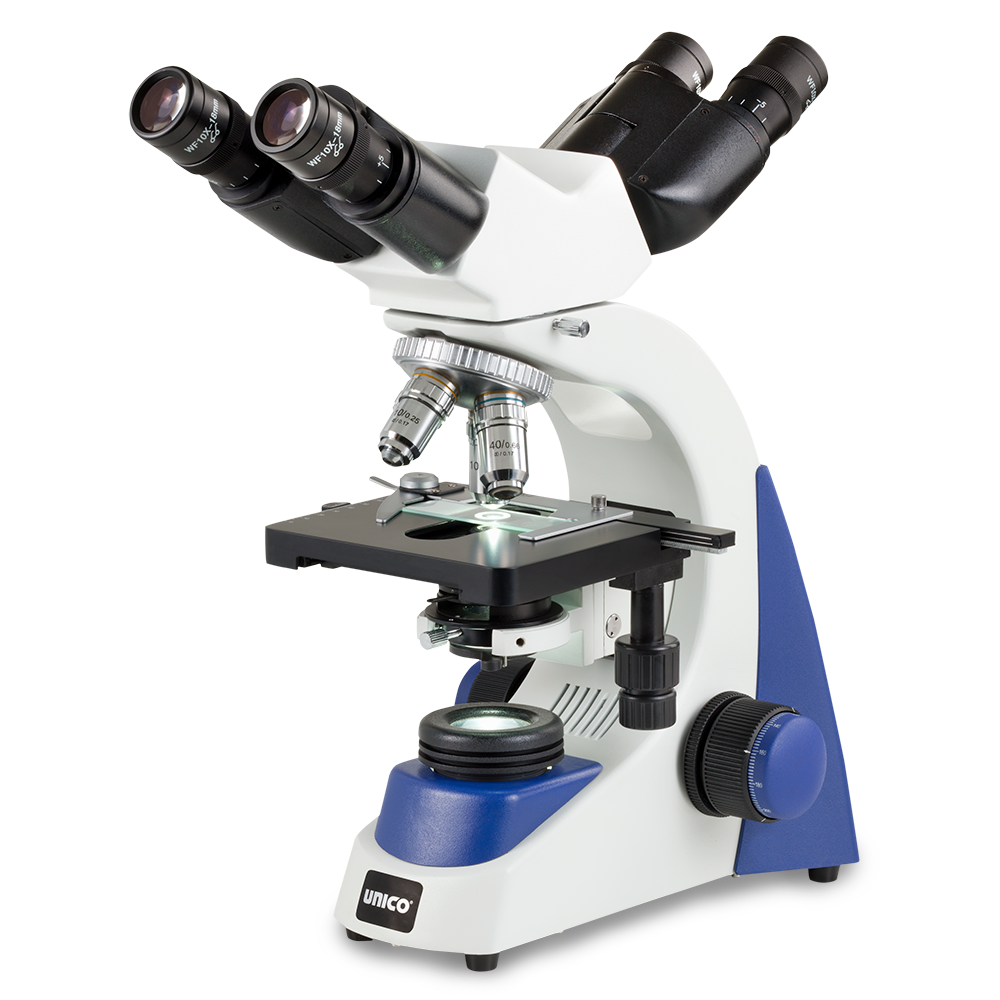

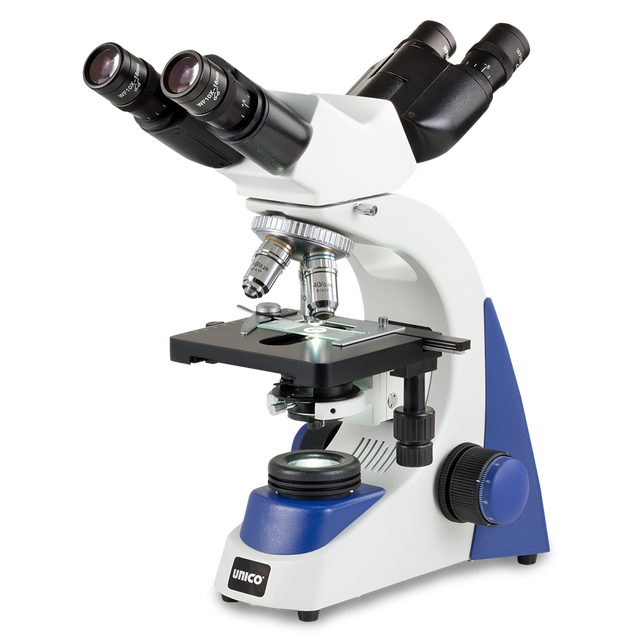

The G388-LED Back-to-Back Binocular Infinity Microscope offers cutting-edge optical technology, designed to provide exceptional imaging clarity and precision for a wide range of scientific, research, and educational applications. Featuring infinity achromatic objectives (4x, 10x, 40x, and 100x), this microscope delivers high-resolution, sharp images with reduced chromatic aberrations. The infinity optics ensure consistent and high-quality imaging even during extended viewing sessions, making it perfect for detailed observation and analysis.
The back-to-back binocular head allows for two users to view specimens simultaneously, each benefiting from 10x widefield eyepieces for comfortable, strain-free viewing. This unique setup is ideal for collaborative work, educational settings, or joint research activities, where more than one user needs to observe the same specimen in real-time.
The mechanical stage provides smooth, precise specimen handling with easy-to-use controls for accurate slide positioning and focusing. The LED illumination system offers bright, uniform lighting with an intensity adjustment feature, allowing users to control the brightness to suit different specimens and ensure optimal viewing conditions. The energy-efficient LED system minimizes heat output, enabling extended periods of observation without discomfort.
The G388-LED Back-to-Back Binocular Infinity Microscope combines versatility, high-performance optics, and user-friendly design, making it an ideal choice for laboratories, research institutions, and educational environments requiring high-quality and collaborative microscopy.
Head
Dual-Binocular
Eyepiece
10X WF(4)Hi-EP
Objectives
4,10,40,100X Infinity Achromat
Condenser
NA 1.25
Diaphragm
Iris
Stage
Mechanical
Illumination
3 Watt LED
Focusing
Coaxial
Bodies
G380-3001
MONOCULAR HEAD, 45° INCLINED FOR G380
G380-3002
DUAL VIEWING HEAD WITHOUT EYEPIECE FOR G380 SERIES
G380-3004
SEIDENTOPF BINOCULAR HEAD FOR G380 SERIES
G380-3005
SEIDENTOPF TRINOCULAR HEAD FOR G380 SERIES
Header
Optics
G380-1402
HIGH EYEPOINT 10X WIDEFIELD EYEPIECE, F.N. 18, EACH
G380-2101
4X DIN ACHROMAT OBJECTIVE, N.A. 0.10 FOR G380 SERIES
G380-2102
10X DIN ACHROMAT OBJECTIVE, N.A. 0.25 FOR G380 SERIES
G380-2103
40X DIN ACHROMAT OBJECTIVE, N.A. 0.65, RETRACTABLE FRONT LENS FOR G380 SERIES
G380-2104
100X DIN ACHROMAT OBJECTIVE, N.A. 1.25, OIL, RETRACTABLE FRONT LENS FOR G380 SERIES
G380-2301
4X DIN PLAN OBJECTIVE, N.A. 0.10
G380-2302
10X DIN PLAN OBJECTIVE, N.A. 0.25
G380-2305
25X DIN PLAN OBJECTIVE N.A. 0.40
G380-2303
40X DIN PLAN OBJECTIVE, N.A. 0.65, RETRACTABLE FRONT LENS
G380-2304
100X DIN PLAN OBJECTIVE N.A. 1.25, RETRACTABLE FRONT LENS
G380-2601
4X INFINITY ACHROMAT OBJECTIVE, NA 0.10
G380-2602
10X INFINITY ACHROMAT OBJECTIVE, NA 0.25
G380-2603
40X INFINITY ACHROMAT OBJECTIVE, NA 0.65
G380-2604
100X OIL IMMERSION INFINITY ACHROMAT OBJECTIVE, NA 1.25
G380-2631
4X INFINITY PLAN ACHROMAT OBJECTIVE, NA 0.10
G380-2632
10X INFINITY PLAN ACHROMAT OBJECTIVE, NA 0.25
G380-2633
40X INFINITY PLAN ACHROMAT OBJECTIVE, NA 0.65
G380-2634
100X OIL IMMERSION INFINITY PLAN ACHROMAT OBJECTIVE, NA 1.25
Header
Miscellaneous Accessories
G380-5111
GRADUATED MECHANICAL STAGE (COAXIAL LOW POSITION CONTROLS) FOR G380 SERIES
G380-6001
ABBE CONDENSER, N.A. 1.25, W/ IRIS DIAPHRAGM, SWING-OUT FILTER HOLDER FOR G300 SERIES
G380-7001
LED ILLUMINATOR PACK, SNAP-IN, INCLUDED 3 AA BATTERIES, FOR G380 SERIES ONLY
G380-7002
MIRROR ASSEMBLY, SNAP-IN FOR G380 SERIES ONLY
G380-7010
FIELD DIAGRAM KOEHLER SET FOR G380, G390 SERIES MICROSCOPES
G380-8010
PHOTO LENS AND PHOTO ADAPTER WITH UNIVERSAL THREAD FOR G380 SERIES (REQ. CAMERA AND T-MOUNT)
G380-8011
VERTICAL VIEWING ADAPTER (TO BE INSTALLED ON TRINOCULAR HEAD. REQUIRES EYEPIECE)
G380-8031
PHASE KIT: INCLUDES 40XR SEMI-PLAN PHASE OBJECTIVE AND SLIDE-IN ANNULUS RING FOR G380 SERIES
G380-8034
PHASE KIT: INCLUDES 10X SEMI-PLAN PHASE OBJECTIVE AND SLIDE-IN ANNULUS RING FOR G380 SERIES
G380-8032
SLIDE-IN 40X PHASE ANNULUS RING FOR G380 SERIES
G380-8907
HARD CARRYING CASE, PADDED WITH LOCK & KEY (2)
G380-8001
DUST COVER FOR G380 SERIES
G380-8906
DARKFIELD STOP FOR G380 SERIES
G380-9008
BACKPACK™ FOR G380, G390 AND G490 SERIES MICROSCOPES, ACRYLIC ACCESORY ATTACHMENT
Shipping Size
17 in x 10.5 in x 17.5 in
Weight
17 lbs (7.7 kg)
Shipping Weight
18 lbs (8.2 kg)
